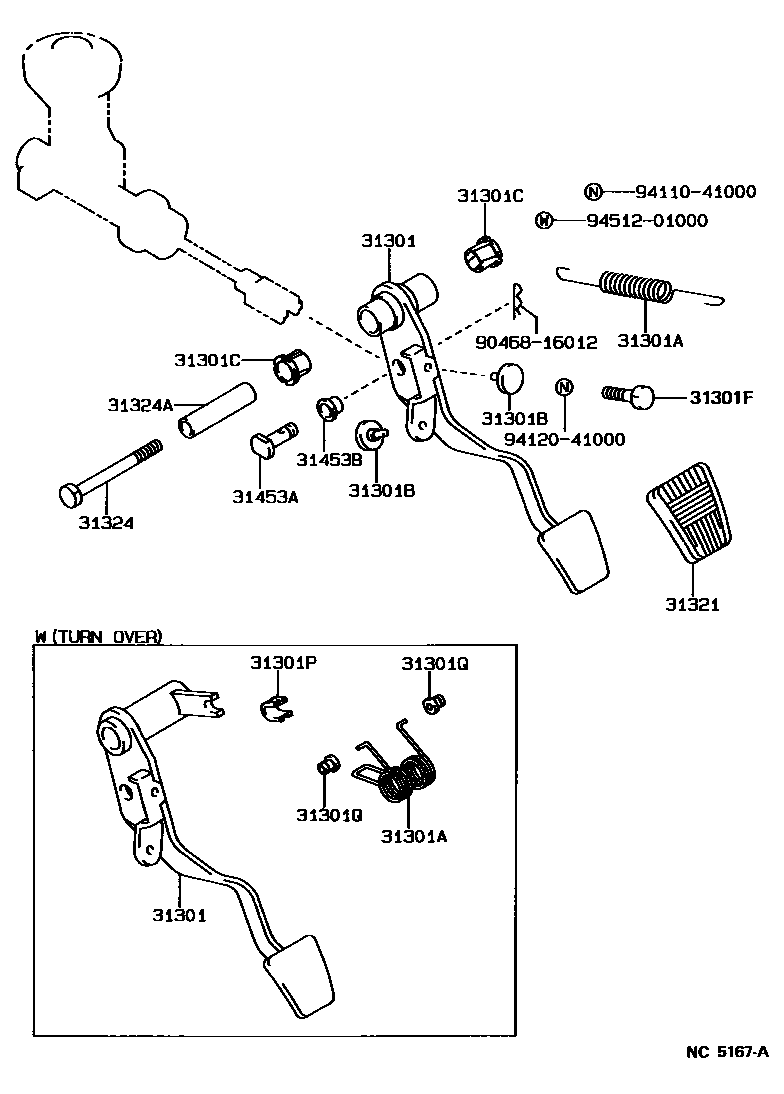

Toyota 4-RUNNER TRUCK (JPP) — CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-35170iRN121,8#,90..MTM198808-199501

main31310-35020iVZN85,9#..R198808-199501

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14030iRN121,8#,90..MTM198808-199501

main90508-35020iVZN85,9#..R198808-199501

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iRN121,8#,90,VZN85,9#..MTM198808-199005

main90541-06032iRN121,8#,90,VZN85,9#..MTM199005-199208

sub90541-06036

main90541-06036iRN8#,90,VZN85,9#..5F199208-199501

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007iRN121,8#,90,VZN85,9#..MTM198808-199501

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iRN121,8#,90,VZN85,9#..MTM198808-199501

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-04002iVZN85,9#..R198808-199501

31301QBUSH(FOR CLUTCH PEDAL SPRING)

main90386-04009iVZN85,9#..R198808-199501

31321PAD, CLUTCH PEDAL

main31321-14020iRN121,8#,90,VZN85,9#..MTM198808-199501

31324SHAFT, CLUTCH PEDAL

main91121-51070iRN121,8#,90..MTM198808-199501

main91121-51085iVZN85,9#..R198808-199501

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10027iRN121,8#,90..MTM198808-199501

main90387-10103iVZN85,9#..R198808-199501

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main47148-34010iRN8#,90,VZN85,9#..5F199212-199501

L=27

main90249-08018iRN121,8#,90,VZN85,9#..MTM198808-199212

L=29.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iRN121,8#,90,VZN85,9#..MTM198808-199501

9046816012

main90468-16012

9411041000

main94110-41000

9412041000

main94120-41000

9451201000

main94512-01000

16 parts on this diagram · 3 diagrams in section
