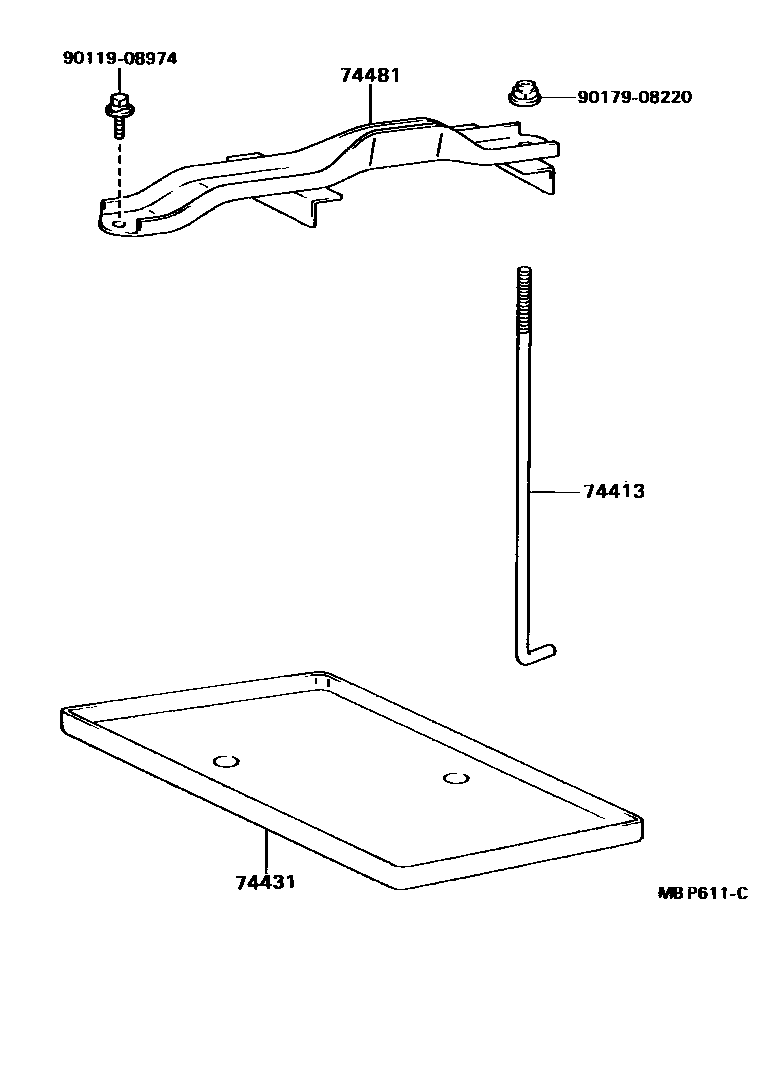

Toyota 4-RUNNER TRUCK (JPP) — BATTERY CARRIER

74413BOLT, BATTERY CLAMP

main74451-35030iRN8#,90,VZN120,85,9#199108-199204

sub74451-35040

main74451-35040iRN8#,90,VZN120,85,9#199204-199403

sub74451-35050

main74451-35050iRN8#,90,VZN120,90199403-199511

main74451-89103iRN12#,8#,90,VZN120,85,9#198808-199108

74431TRAY, BATTERY

main74431-04030iVZN9#..USA;RN8#,90,VZN120,85199208-199511

main74431-14030iRN80..DLX..CBR198808-199008

sub74431-52040

main74431-89107iRN80..STD;VZN85,9#..USA;RN80..DLX..EFI;RN12#,85,90,VZN120198808-199511

main74431-89107iRN80..DLX..CBR198808-199008

W(50D20R BATTERY)

main74431-89110iVZN85,9#..CND198808-199501

main74431-89110iVZN120,85,9#..USA198808-199511

W(80D26R BATTERY)

74481CLAMP, BATTERY HOLD DOWN

main74404-35110iVZN9#..USA;RN8#,90,VZN120,85199301-199511

main74404-35120iVZN120,85,9#..USA199301-199511

W(80D26R BATTERY)

main74404-35120iVZN9#..CND199301-199501

main74404-89114iVZN85,9#..USA;RN12#,8#,90,VZN120198808-199301

sub74404-35110

main74404-89115iVZN85,9#..CND198808-199301

W(80D26R BATTERY)

sub74404-35120

9011908974

main90119-08974

9017908220

main90179-08220

5 parts on this diagram · 1 diagram in section
