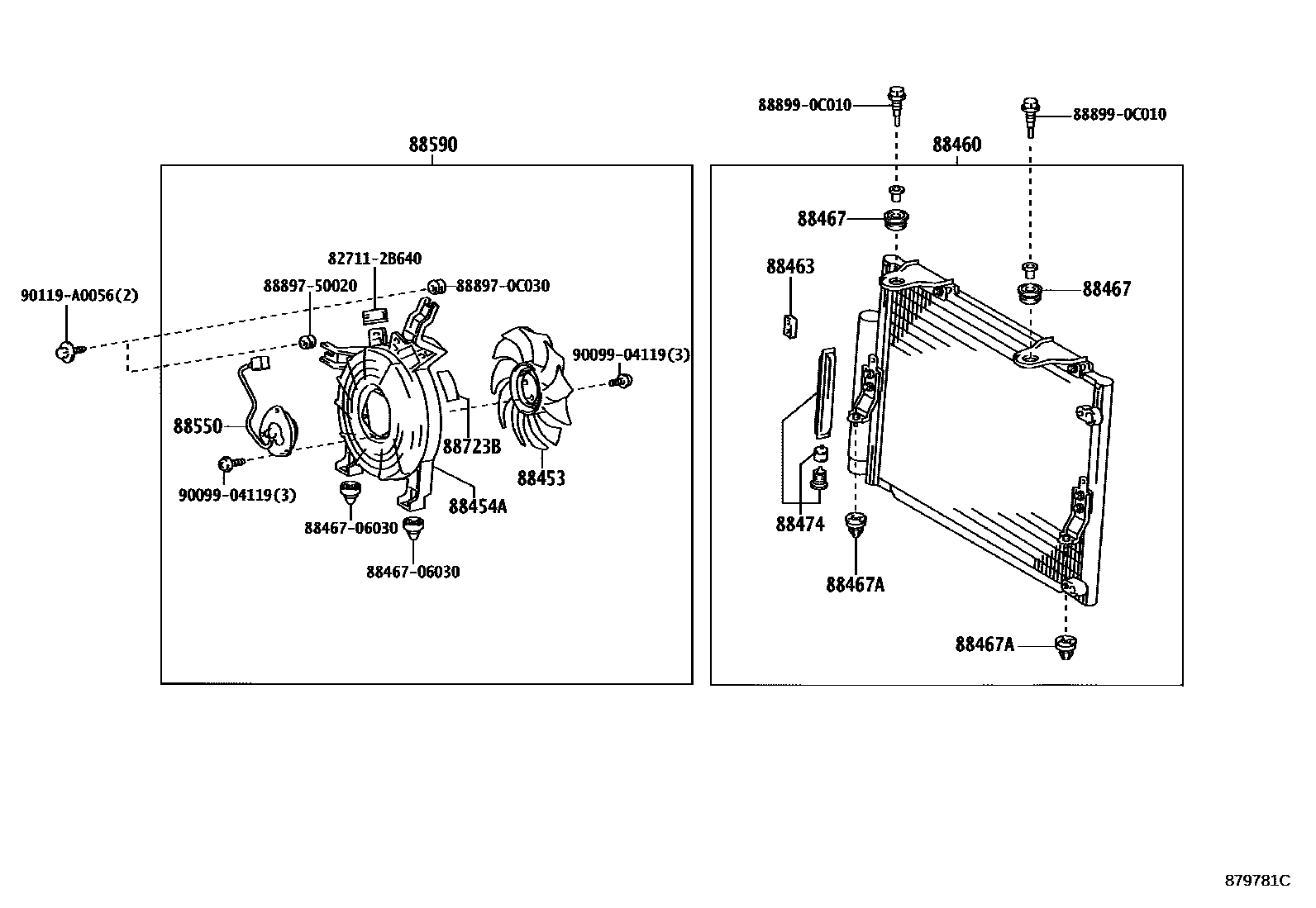

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1CONDENSER & FUN SHROUD 0002 1CONDENSER(TOWING PACKAGE) 0003 1FRONT PIPING 0004 1FRONT PIPING 0005 1FRONT PIPING 0006 1REAR PIPING

88453FAN, COOLING (FOR CONDENSER)

main88453-0C010iUCK6#200711-200904

88454ASHROUD, FAN

main88454-0C030iUPK6#,USK6#200711-200911

main88454-0C031iUSK6#200911-201708

88460CONDENSER ASSY, COOLER

main88460-0C100iUCK6#200711-200904

main88460-0C180iUSK6#201908

88463BRACKET, COOLER CONDENSER, NO.1

main88463-37370iUSK6#201908

88467CUSHION, COOLER CONDENSER, NO.1

main88467-12180×2iUCK6#200711-200904

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-05010×2iUPK6#200711-201208

88474DRYER, COOLER

main88474-12010iUSK6#201908

main88474-17010iUCK6#200711-200904

main88474-08010supersedes 88474-17010iUSK6#200911-201011

TOWING PACKAGE-WITH

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-34010iUCK6#200711-200904

88590BLOWER ASSY, W/SHROUD

main88590-0C030iUCK6#200711-200904

main88590-0C031iUSK6#201708

88723BLABEL, COOLER SERVICE CAUTION

main16793-28020iUCK6#200711-200904

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

8846706030CUSHION, COOLER CONDENSER, NO.1

main88467-06030

888970C030VALVE, COOLER MAGNET

main88897-0C030

8889750020VALVE, COOLER MAGNET

main88897-50020

888990C010COVER, EVAPORATOR

main88899-0C010

9009904119

main90099-04119

90119A0056

main90119-A0056

17 parts on this diagram · 6 diagrams in section
