CLEARANCE & BACK SONAR

0001 1 0002 1

5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

5253REAR BUMPER & BUMPER STAY

→ Go to FIG 52-53

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

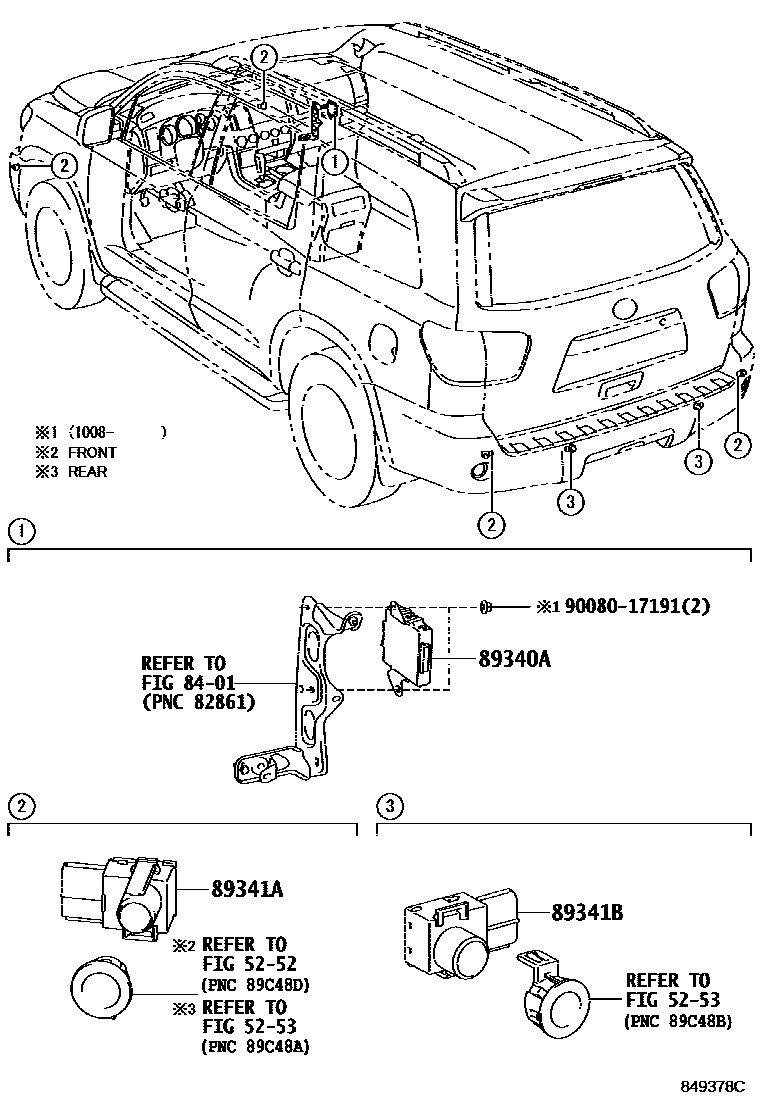

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-0C010iUSK6#..SR5201408-201708

CLEARANCE & BACK SONAR-WITH(FRONT & REAR)

main89340-0C010iUSK6#..LIMD,PLAT201708

main89340-34010iUCK6#,UPK6#,USK6#..SR5200711-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR)

89341ASENSOR, ULTRASONIC, NO.1

main89341-04010-A0iUSK6#..SR5201408-201611

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SUPER WHITE 2,040

main89341-04010-A0iUSK6#..SR5201408-201611

SUPER WHITE 2,040

main89341-04010-A1iUSK6#..PLAT201408-201611

WHITE PEARL CS.,070

main89341-04010-B0iUSK6#..SR5201408-201611

SILVER ME.,1D6

main89341-04010-B0iUSK6#..LIMD,PLAT201408-201611

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SILVER ME.,1D6

main89341-04010-B1iUSK6#..SR5201408-201611

GRAY ME.,1G3

main89341-04010-B1iUSK6#..LIMD,PLAT201408-201611

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),GRAY ME.,1G3

main89341-04010-C0iUSK6#..SR5201408-201611

BLACK,202

main89341-04010-C0iUSK6#..LIMD,PLAT201408-201611

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACK,202

main89341-04010-D0iUSK6#..SR5201408-201611

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACKISH RED MC.,3R0

main89341-04010-D0iUSK6#..LIMD,PLAT201408-201611

BLACKISH RED MC.,3R0

main89341-04010-E0iUSK6#..SR5201408-201611

BRONZE M.M.,4T3

main89341-04010-E0iUSK6#..LIMD,PLAT201408-201611

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BRONZE M.M.,4T3

main89341-04010-E1iUSK6#..LIMD,PLAT201408-201611

BEIGE ME.,4T8

main89341-04010-E1iUSK6#..LIMD,PLAT201408-201611

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BEIGE ME.,4T8

main89341-0R050-A0iUSK6#..SR5201801-202108

CLEARANCE & BACK SONAR-WITHOUT,SUPER WHITE 2,040

main89341-0R050-A0iUSK6#..SR5201612-202108

SUPER WHITE 2,040

main89341-0R050-A0iUSK6#..SR5201612-201708

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SUPER WHITE 2,040

main89341-0R050-A1iUSK65..PLAT;USK60..LIMD,PLAT;USK65..LIMD..HTWC201612-202108

WHITE PEARL CS.,070

main89341-0R050-A2iUSK6#202108

PLATINUM WHITE PEARL MC.,089

main89341-0R050-B0iUSK6#..LIMD,PLAT201612-201908

SILVER ME.,1D6

main89341-0R050-B0iUSK6#..SR5201612-201708

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SILVER ME.,1D6

main89341-0R050-B0iUSK6#..SR5201801-201908

CLEARANCE & BACK SONAR-WITHOUT,SILVER ME.,1D6

main89341-0R050-B1iUSK6#..SR5201612-201708

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),GRAY ME.,1G3

main89341-0R050-B1iUSK6#..LIMD,PLAT201612-201708

GRAY ME.,1G3

main89341-0R050-B2iUSK6#201908

SILVER ME.,1J9

main89341-0R050-C0iUSK6#..SR5201612-201708

BLACK,202

main89341-0R050-C0iUSK6#..LIMD,PLAT201612-201708

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACK,202

main89341-0R050-C2iUSK6#..SR5201708

ATTITUDE BLACK MC.,218

main89341-0R050-D1iUSK6#..SR5201801-202009

CLEARANCE & BACK SONAR-WITHOUT,BLACKISH RED MC.,3R0

main89341-0R050-D1iUSK6#..LIMD,PLAT201612-202009

BLACKISH RED MC.,3R0

main89341-0R050-D1iUSK6#..LIMD,PLAT201612-201708

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACKISH RED MC.,3R0

main89341-0R050-E0iUSK6#..SR5201612-201708

BRONZE M.M.,4T3

main89341-0R050-E0iUSK6#..LIMD,PLAT201612-201708

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BRONZE M.M.,4T3

main89341-0R050-E1iUSK6#..SR5201612-201708

BEIGE ME.,4T8

main89341-0R050-E1iUSK6#..LIMD,PLAT201612-201708

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BEIGE ME.,4T8

main89341-0R050-E2iUSK6#..SR5201801-201908

CLEARANCE & BACK SONAR-WITHOUT,DARK SHERRY M.M.,4W4

main89341-0R050-E2iUSK6#..LIMD,PLAT201708-201908

DARK SHERRY M.M.,4W4

main89341-0R050-G0iUSK65..SR5201908-202009

DK.GREEN,6V7

main89341-0R050-G0iUSK65..SR5201908-202009

CLEARANCE & BACK SONAR-WITHOUT,DK.GREEN,6V7

main89341-0R050-G1iUSK65..SR5202009

URBAN KHAKI,6X3

main89341-0R050-J1iUSK6#..SR5201708

GRAYISH BLUE M.M.,8V5

main89341-33160-A0iUCK6#,UPK6#,USK6#..SR5200711-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SUPER WHITE 2,040

main89341-33160-A0iUSK65..LIMD;USK65..PLAT..HTWC;UCK6#,UPK6#,USK60..LIMD,PLAT200711-201408

SUPER WHITE 2,040

main89341-33160-A1iUCK6#,USK6#..SR5..HTWC200711-200904

WHITE PEARL CS.,071

main89341-33160-A1iUSK65..PLAT;USK65..LIMD..HTWC;UCK6#,USK60..LIMD,PLAT200711-200904

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),WHITE PEARL CS.,071

main89341-33160-A2iUSK6#..PLAT200904-201408

WHITE PEARL CS.,070

main89341-33160-B1iUCK6#,UPK6#,USK6#..LIMD,PLAT200711-201408

SILVER ME.,1D6

main89341-33160-B1iUCK6#,UPK6#,USK6#..SR5200711-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SILVER ME.,1D6

main89341-33160-B2iUCK6#,UPK6#,USK6#..SR5200711-201008

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),GRAY ME.,1F9

main89341-33160-B2iUCK6#,UPK6#,USK6#..LIMD,PLAT200711-201008

GRAY ME.,1F9

main89341-33160-B5iUPK6#,USK6#..LIMD,PLAT201008-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),GRAY ME.,1G3

main89341-33160-B5iUPK6#,USK6#..LIMD,PLAT201008-201408

GRAY ME.,1G3

main89341-33160-C0iUCK6#,UPK6#,USK6#..SR5200711-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACK,202

main89341-33160-C0iUCK6#,UPK6#,USK6#..SR5200711-201408

BLACK,202

main89341-33160-D1iUCK6#,UPK6#,USK6#..SR5200711-201107

DK RED MC,3Q7

main89341-33160-D1iUCK6#,UPK6#,USK6#..SR5200711-201107

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK RED MC,3Q7

main89341-33160-D6iUPK6#,USK6#..LIMD,PLAT201107-201408

BLACKISH RED MC.,3R0

main89341-33160-D6iUPK6#,USK6#..SR5201107-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACKISH RED MC.,3R0

main89341-33160-E1iUCK6#,USK6#..LIMD,PLAT200711-200904

BEIGE M. M.,4Q2

main89341-33160-E1iUCK6#,USK6#..SR5200711-200904

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BEIGE M. M.,4Q2

main89341-33160-E2iUCK6#,UPK6#,USK6#..LIMD,PLAT200711-201408

BRONZE M.M.,4T3

main89341-33160-E2iUCK6#,UPK6#,USK6#..SR5200711-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BRONZE M.M.,4T3

main89341-33160-E8iUPK6#,USK6#..SR5200904-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BEIGE ME.,4T8

main89341-33160-E8iUPK6#,USK6#..LIMD,PLAT200904-201408

BEIGE ME.,4T8

main89341-33160-G1iUCK6#,USK6#..LIMD,PLAT200711-200904

DK.GREEN M.M.,6T8

main89341-33160-G1iUCK6#,USK6#..SR5200711-200904

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.GREEN M.M.,6T8

main89341-33160-G6iUPK6#,USK6#..SR5200904-201008

DK.GREEN MC.,6V4

main89341-33160-G6iUPK6#,USK6#..LIMD,PLAT200904-201008

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.GREEN MC.,6V4

main89341-33160-J2iUCK6#,UPK6#,USK6#..LIMD,PLAT200711-201008

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.BLUE MC.,8S6

main89341-33160-J2iUCK6#,UPK6#,USK6#..SR5200711-201008

DK.BLUE MC.,8S6

89341BSENSOR, ULTRASONIC, NO.2

main89341-33140-A0iUCK6#..LIMD200711-201408

SUPER WHITE 2,040

main89341-33140-A0iUCK6#..LIMD200711-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SUPER WHITE 2,040

main89341-33140-A1iUCK6#,USK6#..SR5..HTWC200711-200904

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),WHITE PEARL CS.,071

main89341-33140-A1iUCK6#,USK6#..SR5..HTWC200711-200904

WHITE PEARL CS.,071

main89341-33140-A2iUSK6#..PLAT200904-201408

WHITE PEARL CS.,070

main89341-33140-B1iUSK6#..LIMD,PLAT200711-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SILVER ME.,1D6

main89341-33140-B1iUCK6#..LIMD200711-201408

SILVER ME.,1D6

main89341-33140-B2iUCK6#..SR5200711-201008

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),GRAY ME.,1F9

main89341-33140-B2iUCK6#..LIMD200711-201008

GRAY ME.,1F9

main89341-33140-B5iUPK6#..SR5201008-201408

GRAY ME.,1G3

main89341-33140-B5iUSK6#..LIMD,PLAT201008-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),GRAY ME.,1G3

main89341-33140-C0iUPK6#..LIMD200711-201408

BLACK,202

main89341-33140-C0iUSK6#..SR5200711-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACK,202

main89341-33140-D1iUCK6#..LIMD200711-201107

DK RED MC,3Q7

main89341-33140-D1iUCK6#..SR5200711-201107

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK RED MC,3Q7

main89341-33140-D6iUPK6#..SR5201107-201408

BLACKISH RED MC.,3R0

main89341-33140-D6iUPK6#..LIMD201107-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACKISH RED MC.,3R0

main89341-33140-E1iUCK6#,USK6#..SR5200711-200904

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BEIGE M. M.,4Q2

main89341-33140-E1iUCK6#,USK6#..SR5200711-200904

BEIGE M. M.,4Q2

main89341-33140-E2iUCK6#..LIMD200711-201408

BRONZE M.M.,4T3

main89341-33140-E2iUCK6#..SR5200711-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BRONZE M.M.,4T3

main89341-33140-E8iUSK6#..SR5200904-201408

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BEIGE ME.,4T8

main89341-33140-E8iUSK6#..SR5200904-201408

BEIGE ME.,4T8

main89341-33140-G1iUCK6#,USK6#..SR5200711-200904

DK.GREEN M.M.,6T8

main89341-33140-G1iUCK6#,USK6#..LIMD,PLAT200711-200904

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.GREEN M.M.,6T8

main89341-33140-G6iUPK6#,USK6#..SR5200904-201008

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.GREEN MC.,6V4

main89341-33140-G6iUPK6#,USK6#..LIMD,PLAT200904-201008

DK.GREEN MC.,6V4

main89341-33140-J2iUCK6#..SR5200711-201008

DK.BLUE MC.,8S6

main89341-33140-J2iUCK6#..LIMD200711-201008

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.BLUE MC.,8S6

9008017191

main90080-17191

7 parts on this diagram · 2 diagrams in section
