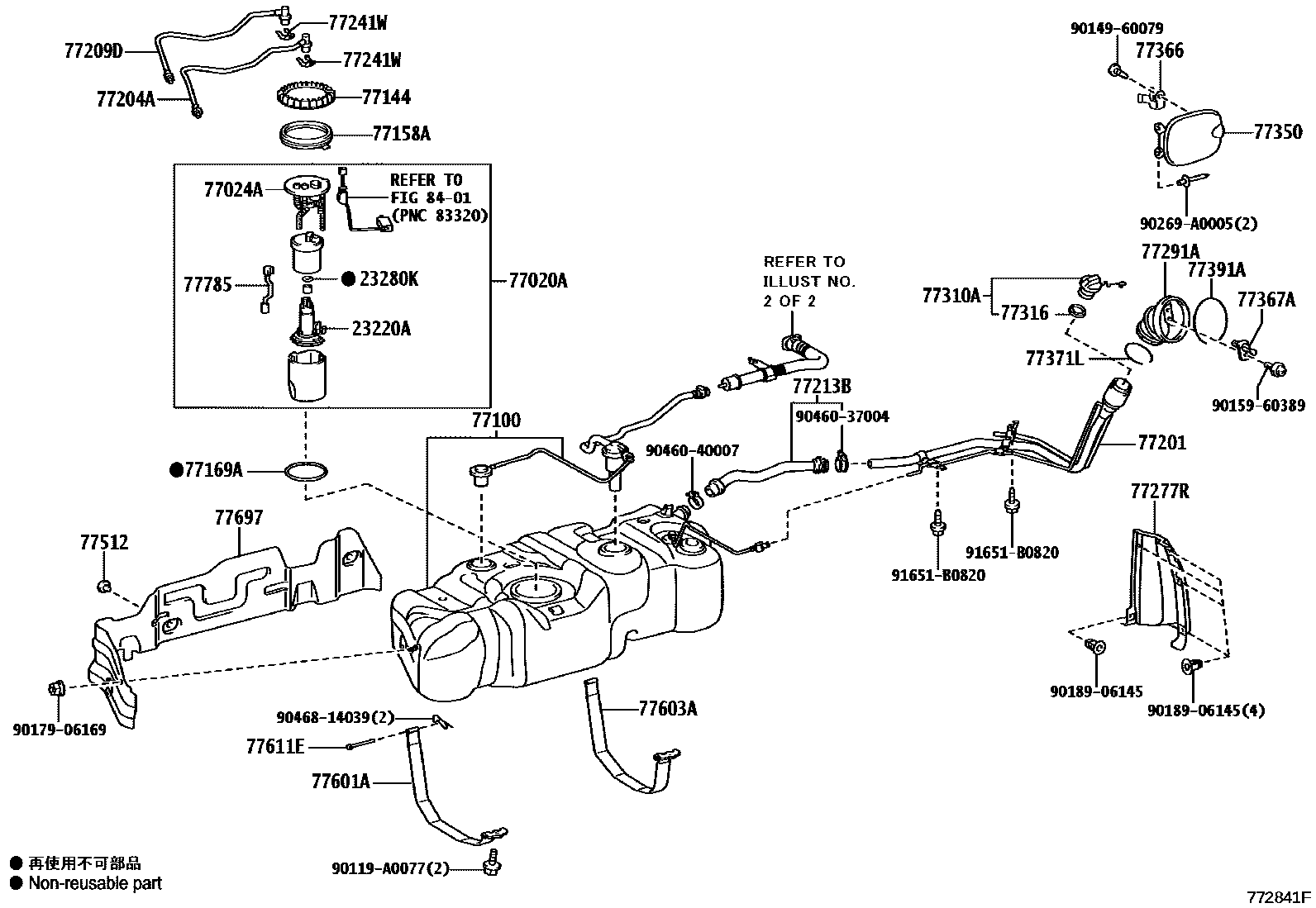

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TUBE 0005 1FUEL TUBE

23220APUMP ASSY, FUEL W/FILTER

main23220-0F050i2UZFE..UCK6#200711-200808

main23220-0F051i2UZFE..UCK6#200808-200904

main23220-0S010i3URFE..USK6#200711-200808

main23220-0S011i1URFE..UPK6#200808-201708

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i3URFE..USK6#200711-201708

NO.1

main90301-15024i3URFE..USK6#200711-201708

NO.2

main90301-A0021i1URFE..UPK6#200711-201708

NO.3

main90301-A0021i2UZFE..UCK6#200711-200904

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-0C070iUCK6#200711-200807

main77020-0C071iUCK6#200808-200904

main77020-0C080iUSK6#200711-200807

main77020-0C081iUPK6#,USK6#..HTWC200808-201103

main77020-0C082iUPK6#201104-201708

main77020-0C090iUSK65..HTWCF200808-201107

main77020-0C120iUSK65..HTWCF201107-201709

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-0C020iUSK6#..HTWC200711-201708

main77024-0C030iUCK6#200711-200904

77100TANK ASSY, FUEL

main77001-0C070iUSK6#..HTWC200711-201709

main77001-0C090iUSK65..HTWCF200808-201001

77144RETAINER, FUEL PUMP GAUGE

main77144-08010iUSK6#..HTWC200711-201709

77158ASUPPORT, TANK SUCTION TUBE

main77158-08010iUPK6#200711-201709

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0C010iUCK6#200711-201709

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-0C090iUCK6#200711-201506

main77201-0C140iUSK6#201506-201507

main77201-0C141iUSK6#201508-201709

77204ATUBE, FUEL TANK RETURN

main77204-0C030iUCK6#,USK6#200711-200808

main77204-0C060iUSK6#..HTWC200808-200905

main77204-0C070iUSK6#..HTWC200906-201709

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0C060iUCK6#200711-200905

main77209-0C070iUSK65..HTWCF200808-200906

NO.1

main77209-0C080iUSK65..HTWCF200808-201709

NO.2

main77209-0C090iUSK65..HTWCF200808-200905

NO.3

main77209-0C110iUSK6#..HTWC200906-201708

main77209-0C120iUSK65..HTWCF200906-201709

NO.3

main77209-0C130iUSK65..HTWCF200906-201709

NO.1

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-0C090iUCK6#200711-201709

77241WCLIP, TUBE JOINT

main77241-02010iUCK6#200711-201001

main77241-06020iUSK6#..HTWC201002-201709

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-0C020iUSK65..HTWCF200711-201709

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-0C080iUCK6#200711-201008

main77291-0C100iUPK6#201008-201709

77310ACAP ASSY, FUEL TANK

main77300-06030iUSK65..HTWCF201506-201709

main77300-06040iUSK6#..HTWC200711-201506

main77300-07030iUSK6#..HTWC201506-201708

main77300-0C010iUSK65..HTWCF200808-201506

77316GASKET, FUEL TANK CAP

main77316-06070iUSK6#200711-201709

77350LID ASSY, FUEL FILLER OPENING

main77350-0C020iUCK6#200711-200912

main77350-0C021iUPK6#,USK6#201001-201008

main77350-0C030iUPK6#201008-201709

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-35030iUCK6#200711-201709

77367ACLAMP, FUEL FILLER LID PIN, NO.1

main77367-0C010iUCK6#200711-201709

77371LRING, FUEL TANK FILLER PIPE SHIELD

main77371-35010iUCK6#200711-201709

77391ARING, FUEL INLET BOX

main77391-0C010iUSK6#200711-201709

77512BRACKET, FUEL TANK, REAR

main77512-35140iUSK6#200711-201709

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-0C040iUCK6#200711-201505

main77601-0C080iUSK6#201209-201307

main77601-0C130iUSK6#..HTWC201506-201709

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77602-0C022iUSK6#200711-201505

main77602-0C110iUSK6#201209-201307

main77602-0C140iUSK6#201508-201709

main77602-0C160iUSK6#201506-201507

77611EPIN, FUEL TANK BAND

main77653-34040iUSK65..HTWCF200711-201709

77697INSULATOR, FUEL TANK HEAT, NO.1

main77697-0C020iUPK6#200711-201709

77785HARNESS, FUEL PUMP

main77785-0C030iUSK6#200711-200904

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90119A0077

main90119-A0077

9014960079

main90149-60079

9015960389

main90159-60389

9017906169

main90179-06169

9018906145

main90189-06145

90269A0005

main90269-A0005

9046037004

main90460-37004

9046040007

main90460-40007

9046814039

main90468-14039

91651B0820

main91651-B0820

39 parts on this diagram · 5 diagrams in section
