EPC Data

SEAT & SEAT TRACK

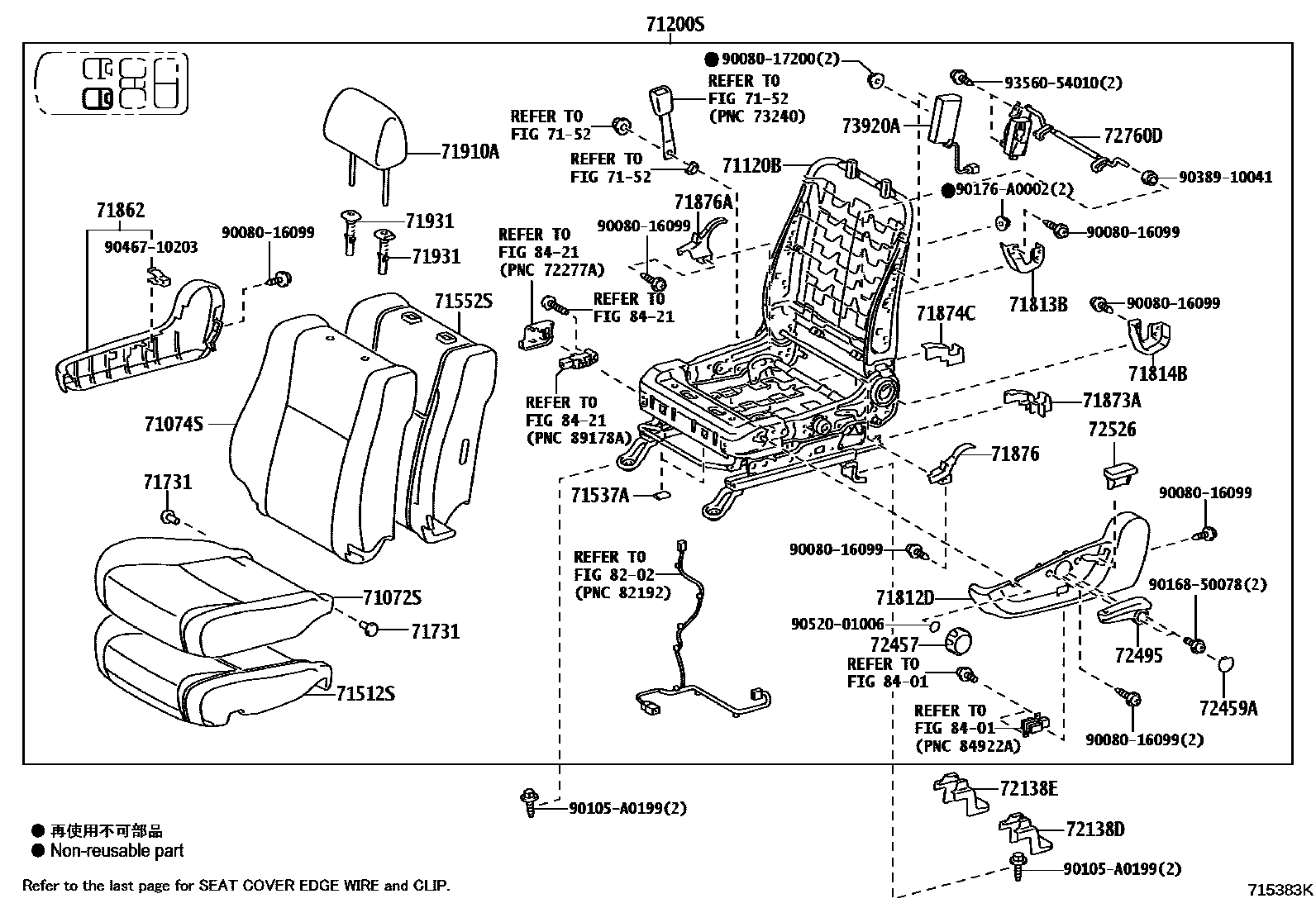

Parts diagram
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-0C270-B2i200711-200904
GRAY,TRIM1#
sub71072-0C430
main71072-0C270-E3i200711-200904
SAND BEIGE,TRIM4#
sub71072-0C430
main71072-0C370-B1i200711-200908
GRAY,TRIM1#
main71072-0C370-B2i200908-201008
GRAY,TRIM1#
main71072-0C370-E2i200711-200908
SAND BEIGE,TRIM4#
main71072-0C370-E3i200711-200908
RED ROCK,TRIM2#
main71072-0C370-E4i200908-201008
SAND BEIGE,TRIM4#
main71072-0C370-E5i200908-201008
RED ROCK,TRIM2#
main71072-0C372-B2i201008-201208
GRAY,TRIM1#
main71072-0C372-B3i201208-201708
GRAY,TRIM1#
main71072-0C372-B5i201708
GRAY/LT.GRAY,TRIM1#
main71072-0C372-E4i201008-201208
SAND BEIGE,TRIM4#
main71072-0C372-E5i201008-201208
RED ROCK,TRIM2#
main71072-0C372-E6i201208-201708
SAND BEIGE,TRIM4#
main71072-0C372-E7i201208-201708
RED ROCK,TRIM2#
main71072-0C372-E8i201708
SAND BEIGE/IVORY,TRIM4#
main71072-0C372-E9i201708
RED ROCK/AMBER,TRIM2#
main71072-0C381-B3i201911-202009
GRAY,TRIM1#
main71072-0C381-C2i201911-202009
BLACK,TRIM2#
main71072-0C381-E3i201911-202009
SAND BEIGE,TRIM4#
main71072-0C382-B3i202009
GRAY,TRIM1#
main71072-0C382-C2i202009
BLACK,TRIM2#
main71072-0C382-E3i202009
SAND BEIGE,TRIM4#
main71072-0C420-B0i200904-200911
GRAY,TRIM1#
main71072-0C420-B1i200911-201008
GRAY,TRIM1#
main71072-0C420-E0i200904-200911
LEATHER PACKAGE,GRAY,TRIM4#
main71072-0C420-E1i200911-201008
SAND BEIGE,TRIM4#
main71072-0C421-B1i201008-201208
GRAY,TRIM1#
main71072-0C421-B2i201208-201708
GRAY,TRIM1#
main71072-0C421-B4supersedes 71072-0C381-B2i201708
GRAY/LT.GRAY,TRIM1#
main71072-0C421-C0i201708
LEATHER PACKAGE(*LES),BLACK/LT.GRAY,TRIM2#
main71072-0C421-E1i201008-201208
SAND BEIGE,TRIM4#
main71072-0C421-E2i201208-201708
SAND BEIGE,TRIM4#
main71072-0C421-E3supersedes 71072-0C381-E2i201708
SAND BEIGE/IVORY,TRIM4#
main71072-0C380-B1supersedes 71072-0C360-B1i200711-200904
D-POWER SEAT PACKAGE,GRAY,TRIM1#
main71072-0C380-B2supersedes 71072-0C360-B2i201008-201310
D-POWER SEAT PACKAGE,GRAY,TRIM1#
main71072-0C380-C0i200812-200904
D-POWER SEAT PACKAGE,BLACK,TRIM2#
main71072-0C380-C1i201008-201208
D-POWER SEAT PACKAGE,BLACK,TRIM2#
main71072-0C380-E1supersedes 71072-0C360-E1i200711-201008
D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
main71072-0C380-E2supersedes 71072-0C360-E2i201008-201208
D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
main71072-0C421-C1i201908
LEATHER PACKAGE(*LES),BLACK/RED,TRIM20
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-0C410-B2i200711-200904
GRAY,TRIM1#
main71074-0C410-E3i200711-200904
SAND BEIGE,TRIM4#
main71074-0C590-B1i200711-200904
GRAY,TRIM1#
main71074-0C590-E2i200711-200904
SAND BEIGE,TRIM4#
main71074-0C590-E3i200711-200904
RED ROCK,TRIM2#
main71074-0C740-B0i200904-200910
GRAY,TRIM1#
main71074-0C740-E0i200904-200910
SAND BEIGE,TRIM4#
main71074-0C741-B0i200911-201008
GRAY,TRIM1#
main71074-0C741-E0i200911-201008
SAND BEIGE,TRIM4#
main71074-0C742-B1i201008-201208
GRAY,TRIM1#
main71074-0C742-E1i201008-201208
SAND BEIGE,TRIM4#
main71074-0C743-B1i201307-201408
GRAY,TRIM1#
main71074-0C743-E1i201307-201408
SAND BEIGE,TRIM4#
main71074-0C750-B0i200904-201008
GRAY,TRIM1#
main71074-0C750-E0i200904-201008
SAND BEIGE,TRIM4#
main71074-0C750-E1i200904-201008
RED ROCK,TRIM2#
main71074-0C752-B1i201008-201306
GRAY,TRIM1#
main71074-0C752-E2i201008-201306
SAND BEIGE,TRIM4#
main71074-0C752-E3i201008-201306
RED ROCK,TRIM2#
main71074-0C753-B1i201307-201408
GRAY,TRIM1#
main71074-0C753-E2i201307-201408
SAND BEIGE,TRIM4#
main71074-0C753-E3i201307-201408
RED ROCK,TRIM2#
main71074-0C840-B0i201408-201708
GRAY,TRIM1#
main71074-0C840-B2i201708-201908
GRAY/LT.GRAY,TRIM1#
main71074-0C840-E0i201408-201708
SAND BEIGE,TRIM4#
main71074-0C840-E1i201708-201908
SAND BEIGE/IVORY,TRIM4#
main71074-0C841-B2i201908
LEATHER PACKAGE(*LES),GRAY,TRIM1#
main71074-0C841-C0i201908
BLACK/GRAY,TRIM2#
main71074-0C841-E1i201908
SAND BEIGE,TRIM4#
main71074-0C850-B0i201408-201708
GRAY,TRIM1#
main71074-0C850-B2i201708-201908
GRAY/LT.GRAY,TRIM1#
main71074-0C850-E0i201408-201708
SAND BEIGE,TRIM4#
main71074-0C850-E1i201408-201708
RED ROCK,TRIM2#
main71074-0C850-E2i201708-201908
SAND BEIGE/IVORY,TRIM4#
main71074-0C850-E3i201708-201908
RED ROCK/AMBER,TRIM2#
main71074-0C851-B2i201908
GRAY,TRIM1#
main71074-0C851-E2i201908
SAND BEIGE,TRIM4#
main71074-0C851-E3i201908
RED ROCK,TRIM2#
main71074-0C860-B1i201911-202009
GRAY,TRIM1#
main71074-0C860-C1i201911-202009
BLACK,TRIM2#
main71074-0C860-E1i201911-202009
SAND BEIGE,TRIM4#
main71074-0C861-B1i202009
GRAY,TRIM1#
main71074-0C861-C1i202009
BLACK,TRIM2#
main71074-0C861-E1i202009
SAND BEIGE,TRIM4#
main71074-0C620-B0supersedes 71074-0C580-B2i200711-200904
D-POWER SEAT PACKAGE,GRAY,TRIM1#
main71074-0C620-C0i200812-200904
D-POWER SEAT PACKAGE,BLACK,TRIM2#
main71074-0C620-E0supersedes 71074-0C580-E2i200711-200904
D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
main71074-0C760-B0supersedes 71074-0C730-B0i200904-201008
D-POWER SEAT PACKAGE,GRAY,TRIM1#
main71074-0C760-B1supersedes 71074-0C730-B1i201008-201212
D-POWER SEAT PACKAGE,GRAY,TRIM1#
main71074-0C760-C0i200904-201008
D-POWER SEAT PACKAGE,BLACK,TRIM2#
main71074-0C760-C1i201008-201212
D-POWER SEAT PACKAGE,BLACK,TRIM2#
main71074-0C760-E0supersedes 71074-0C730-E0i200904-201008
D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
main71074-0C760-E1supersedes 71074-0C730-E1i201008-201212
D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
main71074-0C762-B1supersedes 71074-0C860-B0i201301-201310
D-POWER SEAT PACKAGE,GRAY,TRIM1#
main71074-0C762-C1supersedes 71074-0C860-C0i201301-201310
D-POWER SEAT PACKAGE,BLACK,TRIM2#
main71074-0C762-E1supersedes 71074-0C860-E0i201301-201310
D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
main71074-0C763-B1supersedes 71074-0C733-B1i201311-201408
D-POWER SEAT PACKAGE,GRAY,TRIM1#
main71074-0C763-C1i201311-201408
D-POWER SEAT PACKAGE,BLACK,TRIM2#
main71074-0C763-E1supersedes 71074-0C733-E1i201311-201408
D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
main71074-0C840-C0i201708-201908
LEATHER PACKAGE(*LES),BLACK/LT.GRAY,TRIM2#
main71074-0C841-C1i201908
LEATHER PACKAGE(*LES),BLACK/RED,TRIM20
71120BFRAME ASSY, FRONT SEAT W/ADJUSTER, LH
main71120-0C190i200711-200904
LEATHER PACKAGE
main71120-0C191i200904-201306
LEATHER PACKAGE
sub73214-0E010
main71120-0C192i201708-201909
LEATHER PACKAGE(*LES)
main71120-0C193supersedes 71120-0C253i201910
NUMBER OF PASSENGER-7& TRD PRO PACKAGE&LEATHER PACKAGE(*LES)
main71120-0C260i200711-200904
main71120-0C261i200904-201306
sub73214-0E010
main71120-0C262i201307-201708
main71120-0C263i201910
main71120-0C250supersedes 71120-0C170i200711-200904
D-POWER SEAT PACKAGE
main71120-0C251supersedes 71120-0C171i200904-201306
D-POWER SEAT PACKAGE
sub71120-0C252
sub73214-0E010
71200SSEAT ASSY, FRONT LH
main71200-0CB41-B1i200911-201008
POWER MEMORY PACKAGE,GRAY,TRIM1#
main71200-0CB41-E1i200911-201008
POWER MEMORY PACKAGE,SAND BEIGE,TRIM4#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-0C080i200711-201008
LEATHER PACKAGE
main71512-0C081i201008-201208
LEATHER PACKAGE
main71512-0C120i200711-201008
main71512-0C130i201008-201708
7152
71537APROTECTOR, FRONT SEAT CUSHION
main71537-AA020×2supersedes 71537-AA020i200711-200904
LEATHER PACKAGE
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-0C160i201008-201408
main71552-0C170supersedes 71552-0C160i200711-201008
LEATHER PACKAGE
main71552-0C180i200711-201008
main71552-0C250i201008-201408
main71552-0C270i201408-201708
main71552-0C280i201408-201708
71731FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT)
main71731-0C010×4i200711-201708
LEATHER PACKAGE
71812DSHIELD, FRONT SEAT CUSHION, LH
main71806-0C040-B0i200711-200812
GRAY,TRIM1#
main71806-0C040-C0i200711-200812
BLACK,TRIM2#
main71806-0C040-E0i200711-200812
SAND BEIGE,TRIM4#
main71806-0C060-B0supersedes 71812-0C110-B0i200812-201708
GRAY,TRIM1#
main71806-0C060-C0i201708
BLACK,TRIM2#
main71806-0C060-E0supersedes 71812-0C110-E0i200812-200904
SAND BEIGE,TRIM4#
main71806-0C050-B0i200711-200812
D-POWER SEAT PACKAGE,GRAY,TRIM1#
main71806-0C050-E0i200711-200812
D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
71813BSHIELD, FRONT SEATBACK, RH
main71813-0E020supersedes 71875-AA060i200711-201208
D-POWER SEAT PACKAGE
71814BSHIELD, FRONT SEATBACK, LH
main71814-0E020supersedes 71876-AA060i201708
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-0E020-B2supersedes 71862-0C080-B0i201107-201208
GRAY,TRIM1#
main71862-0E020-C0i201107-201708
BLACK,TRIM2#
main71862-0E020-E0supersedes 71862-0C080-E0i201107-201208
D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
main71862-AA080-B3supersedes 71862-0C080-B0i200711-200904
GRAY,TRIM1#
main71862-AA080-C0i200711-200812
BLACK,TRIM2#
main71862-AA080-E1supersedes 71862-0C080-E0i200904-201106
SAND BEIGE,TRIM4#
71873ASHIELD, FRONT SEAT CUSHION, LOWER
main71873-0C060-C0×2i200711-201008
BLACK
71874CSHIELD, FRONT SEAT CUSHION, LOWER
main71874-06070×2supersedes 71874-0C030-C0i200711-201708
LEATHER PACKAGE
main71874-0C030-C0×2i201008-201708
BLACK,TRIM2#
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71875-0E020-B5supersedes 71876-AD020-B0i200711-201208
GRAY,TRIM1#
main71875-0E020-C0i200812-200904
BLACK,TRIM2#
main71875-0E020-E2supersedes 71876-AD020-E1i200711-200812
SAND BEIGE,TRIM4#
main71876-AD020-C0i201408-201708
BLACK,TRIM2#
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
main71875-AD020-C0i201408-201708
BLACK,TRIM2#
main71876-AA090-B5supersedes 71875-AD020-B0i200904-201708
GRAY,TRIM1#
main71876-AA090-C0i200711-200812
BLACK,TRIM2#
main71876-AA090-E2supersedes 71875-AD020-E1i200711-201708
D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
71910AHEADREST ASSY, FRONT SEAT
main71910-0C210-B1×2i200711-200904
GRAY,TRIM1#
main71910-0C210-E2×2i200711-200904
SAND BEIGE,TRIM4#
main71910-0C210-E3×2i200711-200911
REDROCK,TRIM2#
main71910-0C250-B1×2i200911-201008
GRAY,TRIM1#
main71910-0C250-B2×2i201008-201208
GRAY,TRIM1#
main71910-0C250-B4×2supersedes 71910-0C331-B0i201708
GRAY/LT.GRAY,TRIM1#
main71910-0C250-C0×2supersedes 71910-0C331-C0i201708
LEATHER PACKAGE(*LES),BLACK/LT.GRAY,TRIM2#
main71910-0C250-E2×2i200911-201008
REDROCK,TRIM2#
main71910-0C250-E3×2i200911-201008
SAND BEIGE,TRIM4#
main71910-0C250-E4×2i201008-201708
REDROCK,TRIM2#
main71910-0C250-E5×2i201008-201708
SAND BEIGE,TRIM4#
main71910-0C250-E6×2i201708
RED ROCK/AMBER,TRIM2#
main71910-0C250-E7×2supersedes 71910-0C331-E0i201708
SAND BEIGE/IVORY,TRIM4#
main71910-0C330-B0×2i200711-200904
GRAY,TRIM1#
sub71910-0C331
main71910-0C330-C0×2i200812-200904
BLACK,TRIM2#
sub71910-0C331
main71910-0C330-E0×2i200711-200904
SAND BEIGE,TRIM4#
sub71910-0C331
main71910-0C450-C0×2i201908
NUMBER OF PASSENGER-7& TRD PRO PACKAGE&LEATHER PACKAGE(*LES),BLACK/RED,TRIM2#
71931SUPPORT, FRONT SEAT HEADREST
main71930-42020-B8×2i200711-201008
W(LOCK)&W(BUTTON),GRAY,TRIM1#
sub71930-44020
main71930-42020-C0×2i200812-201008
W(LOCK)&W(BUTTON),BLACK,TRIM2#
sub71930-44020
main71930-42020-E3×2i200711-200904
W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4#
sub71930-44020
main71930-52030-B4×2i201008-201208
W(LOCK)&W(BUTTON),GRAY,TRIM1#
main71930-52030-C0×2i201708
W(LOCK)&W(BUTTON),BLACK,TRIM2#
main71930-52030-E4×2i201008-201708
W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4#
main71931-42020-B8×2i200711-200904
W(LOCK)&W/O(BUTTON),GRAY,TRIM1#
main71931-42020-C0×2i200812-200904
W(LOCK)&W/O(BUTTON),BLACK,TRIM2#
main71931-42020-E3×2i201708
W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4#
72138DCOVER, SEAT TRACK, OUTER, LH
main72138-0C010-B0i200711-201107
GRAY,TRIM1#
main72138-0C010-E0i200711-201107
SAND BEIGE,TRIM4#
main72138-0C030-B0supersedes 72138-0C010-B0i200711-201107
GRAY,TRIM13
main72138-0C030-C0supersedes 72138-0C010-C0i200711-200812
BLACK,TRIM2#
main72138-0C030-E0supersedes 72138-0C010-E0i200711-200812
D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
72138ECOVER, SEAT TRACK, INNER LH
main72137-0C410-B0i200711-201107
GRAY,TRIM1#
main72137-0C410-E0i200711-201107
SAND BEIGE,TRIM4#
main72138-0C040-B0supersedes 72137-0C410-B0i200711-200812
GRAY,TRIM13
main72138-0C040-C0supersedes 72137-0C410-C0i200904-201107
LEATHER PACKAGE,BLACK,TRIM2#
main72138-0C040-E0supersedes 72137-0C410-E0i200711-200812
D-POWER SEAT PACKAGE,SAND BEIGE,TRIM4#
72457KNOB, VERTICAL SEAT ADJUSTER
main72457-0E010-B1i200912-201208
GRAY,TRIM1#
main72457-0E010-E0i200912-201708
SAND BEIGE,TRIM4#
main72457-58010-B5i200711-200911
GRAY,TRIM1#
main72457-58010-E3i200711-200904
SAND BEIGE,TRIM4#
72459ACAP, VERTICAL SEAT ADJUSTER KNOB
main72459-06010-B1i200711-201708
GRAY,TRIM1#
main72459-06010-E1i200711-200904
SAND BEIGE,TRIM4#
72495HANDLE, VERTICAL ADJUSTING, LH
main72494-06010-B1i200711-201708
GRAY,TRIM1#
main72494-06010-E1i200711-201208
SAND BEIGE,TRIM4#
72526HANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-06020-B1i200711-200904
GRAY,TRIM1#
main72526-06020-E1i200711-201208
SAND BEIGE,TRIM4#
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72760-0E010i200711-201708
main72760-AC040i200711-201208
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-0C040i200711-201408
main73920-0C060i200711-201110
main73920-0C061i201111-201408
main73920-0C070i201708
main73920-0C090i201408-201708
8202
8401
8421
9008016099
main90080-16099
9008017200
main90080-17200
90105A0199
main90105-A0199
9016850078
main90168-50078
90176A0002
main90176-A0002
9038910041
main90389-10041
9046710203
main90467-10203
9052001006
main90520-01006
9356054010
main93560-54010

39 parts on this diagram · 17 diagrams in section

SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
