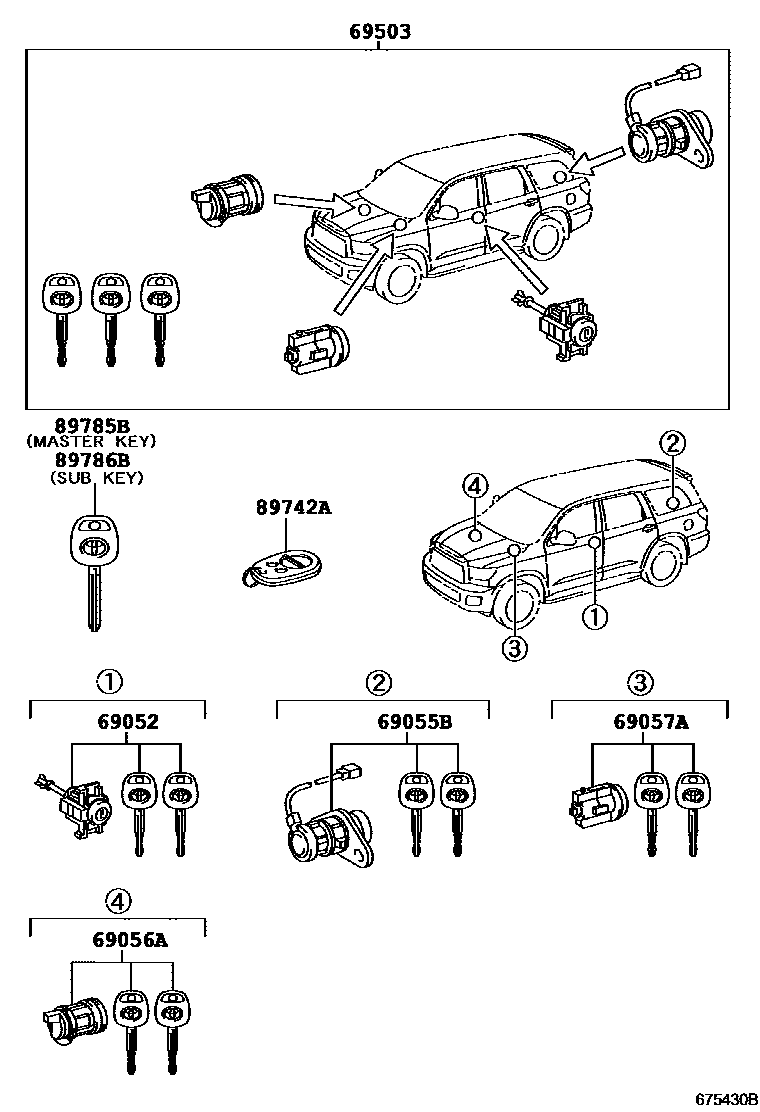

LOCK CYLINDER SET

0001 1 0002 1 0003 1

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-0C010200711-201908

main69052-0C030201908

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-0C020200711-201908

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-06160201908

main69056-0C020200711-201708

main69056-0E020201708-201908

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-02361201008-201408

main69057-02720201408-201708

main69057-04030200711-201008

main69057-04090201708-201908

main69057-0C080201708-201908

69503CYLINDER SET, LOCK

main69005-0C120200711-201008

main69005-0C130201008-201408

main69005-0C140201408-201708

main69005-0C250201708-201908

main69005-0C260201708-201908

main69005-0C270201908

89742ATRANSMITTER, DOOR CONTROL

main89742-0C040200711-201105

main89742-0C041201106-201708

main89742-AE010200711-201105

main89742-AE011201106-201708

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-08020200711-201008

main89785-08040201008-201408

main89785-0D170201408-201708

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-08020200711-201008

main89786-08040201008-201408

main89786-0R020201408-201708

main89786-0R021201708-201908

8 parts on this diagram · 3 diagrams in section
