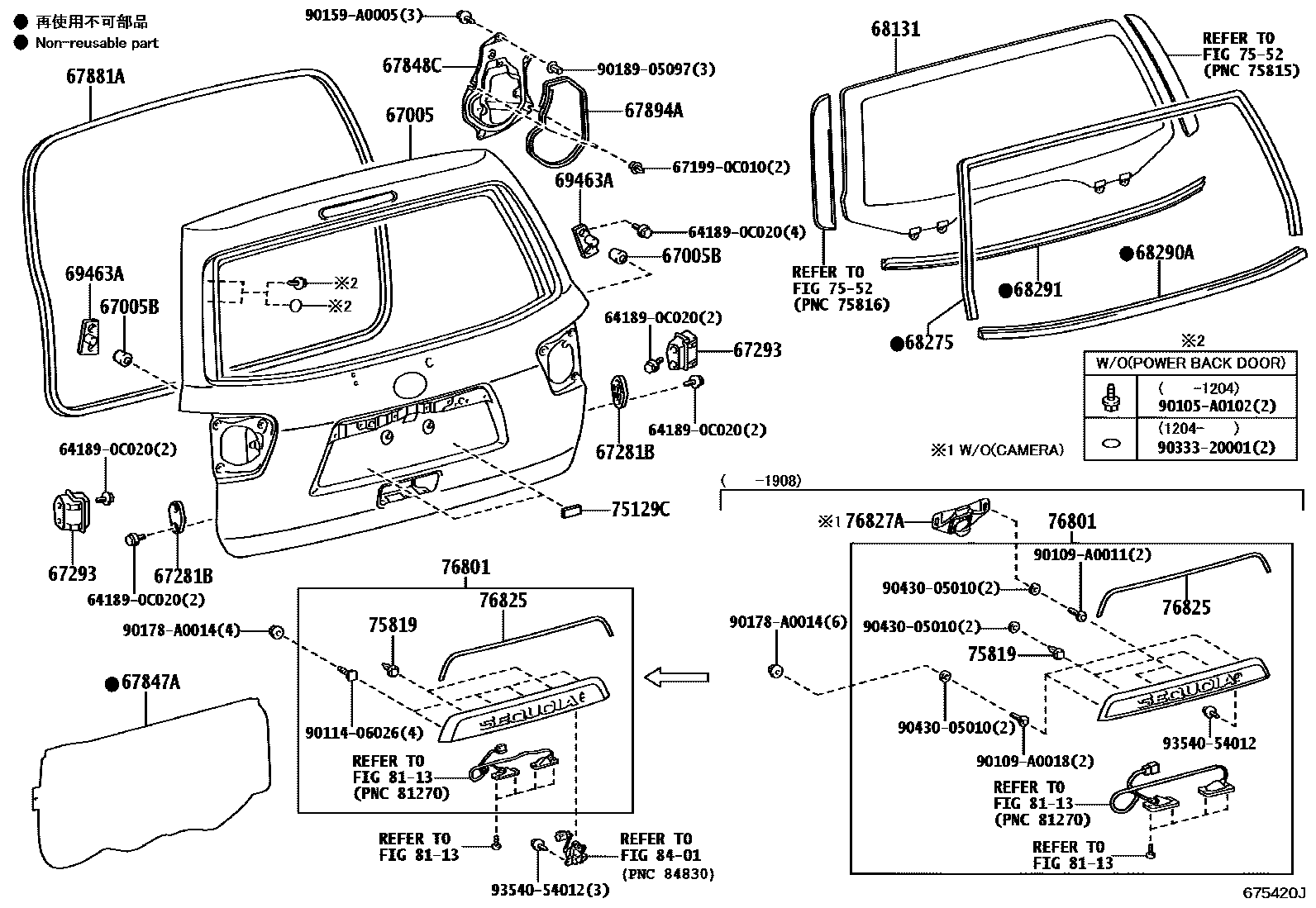

BACK DOOR PANEL & GLASS
67005PANEL SUB-ASSY, BACK DOOR
REAR SPOILER-WITH&POWER BACK DOOR-WITH
REAR SPOILER-WITH&POWER BACK DOOR-WITH
REAR SPOILER-WITH&POWER BACK DOOR-WITH
POWER BACK DOOR-WITH
POWER BACK DOOR-WITH
POWER BACK DOOR-WITH
SPORT APPEARANCE PACKAGE
REAR SPOILER-WITH
67005BCUSHION(FOR BACK DOOR PANEL)
67281BSTOPPER, BACK DOOR, LOWER
RH
LH
67293CUSHION, BACK DOOR LOWER STOPPER
RH
LH
67847ACOVER, BACK DOOR SERVICE HOLE
67848CCOVER, BACK DOOR SERVICE HOLE, NO.2
67894APROTECTOR, BACK DOOR PANEL, NO.1
68131GLASS, BACK DOOR
*EHTT,T=3.5,PRIVACY
68275RUN, BACK DOOR GLASS
68290AWEATHERSTRIP ASSY, BACK DOOR GLASS, OUTER
68291WEATHERSTRIP, BACK DOOR GLASS
69463ASTOPPER, BACK DOOR MALE, LOWER
RH
LH
75129CCUSHION, REAR LICENCE PLATE
7552MOULDING
75819CLIP, LUGGAGE COMPARTMENT DOOR MOULDING
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
SUPER WHITE 2,040
SILVER ME.,1D6
GRAY ME.,1F9
GRAY ME.,1G3
BLACK,202
ATTITUDE BLACK MC.,040 ,1G3 ,218
DK RED MC,3Q7
BLACKISH RED MC.,3R0
BEIGE M. M.,4Q2
BRONZE M.M.,4T3
BEIGE ME.,4T8
DARK SHERRY M.M.,4W4
DK.GREEN M.M.,6T8
DK.GREEN MC.,6V4
DK.BLUE MC.,8S6
GRAYISH BLUE M.M.,8V5
PLATED
NO PAINT REQ.
TRD SPORT PACKAGE,ATTITUDE BLACK MC.,040 ,089 ,1G3 ,218
NO PAINT REQ., TRD PRO PACKAGE
NIGHTSHADE PACKAGE,ATTITUDE BLACK MC.,070 ,089 ,1G3 ,218
76825PROTECTOR, BACK DOOR OUTSIDE GARNISH
76827ARETAINER, BACK DOOR GARNISH, NO.2
8113REAR LICENSE PLATE LAMP
8401SWITCH & RELAY & COMPUTER
641890C020CLAMP, BACK PANEL SILENCER
main64189-0C020
671990C010COVER, BACK DOOR HANDLE
main67199-0C010
90105A0102
main90105-A0102
90109A0011
main90109-A0011
90109A0018
main90109-A0018
9011406026
main90114-06026
90159A0005
main90159-A0005
90178A0014
main90178-A0014
9018905097
main90189-05097
9033320001
main90333-20001
9043005010
main90430-05010
9354054012
main93540-54012
33 parts on this diagram · 2 diagrams in section
