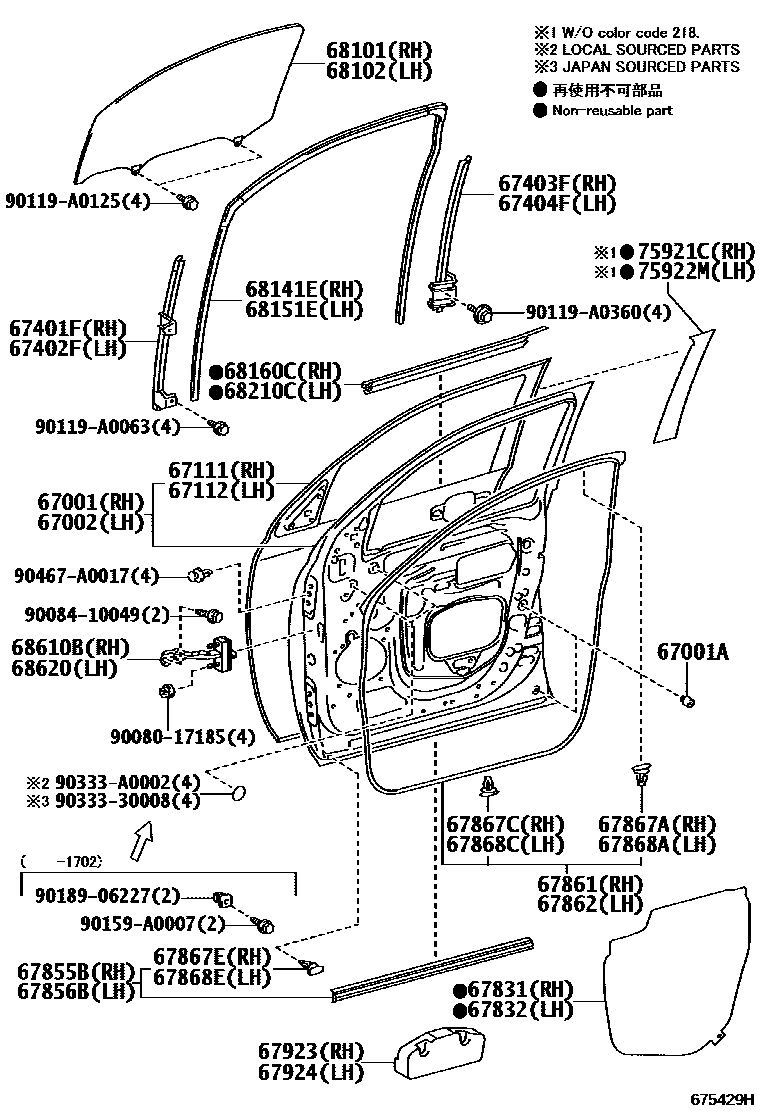

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM 0003 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0C102iUPK6#201002-201208

main67001-0C121iUPK6#,USK6#200711-201002

main67001-0C130iUSK65..HTWCF201708-201709

67001ACUSHION, FRONT DOOR PANEL

main90541-09117×4iUPK6#200711-201208

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0C102iUPK6#201002-201208

main67002-0C121iUCK6#200711-200904

67111PANEL, FRONT DOOR, OUTER RH

main67111-0C050iUSK65..HTWCF201708-201709

67112PANEL, FRONT DOOR, OUTER LH

main67112-0C050iUSK65..HTWCF201708-201709

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-0C030iUCK6#200711-200904

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-0C030iUCK6#200711-200904

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0C040iUSK6#200711-201708

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0C040iUSK6#200711-201708

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0C030iUCK6#,USK6#200711-200806

main67831-0C050iUSK6#201708-201908

main67831-0C080iUSK6#201908

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0C010iUCK6#,USK6#200711-200806

main67832-0C030iUCK6#200806-200904

main67832-0C060iUSK6#201908

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-0C010iUPK6#200711-201208

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-0C010iUPK6#200711-201208

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0C030iUCK6#200711-200904

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0C030iUPK6#200711-201208

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main90467-A0027×11iUSK65..HTWCF201708-201709

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×27iUSK65..HTWCF201708-201709

main67868-02020×27iUSK6#200711-201708

67867ERETAINER, FRONT DOOR LOWER PROTECTOR, RH

main67867-12150×8iUSK65..HTWCF201708-201709

main67868-02020×8iUCK6#200711-200904

67868ACLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR)

main90467-A0027×11iUCK6#200711-200904

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×27iUSK6#..HTWC201708

main67868-02020×27iUSK6#200711-201708

67868ERETAINER, FRONT DOOR LOWER PROTECTOR, LH

main67867-12150×8iUSK65..HTWCF201708-201709

main67868-02020×8iUPK6#200711-201208

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-0C020iUSK6#..HTWC201708

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-0C010iUSK65..HTWCF201708-201709

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0C040iUPK6#200711-201208

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0C040iUCK6#200711-200904

68141ERUN, FRONT DOOR GLASS, RH

main68141-0C030iUCK6#200711-200904

68151ERUN, FRONT DOOR GLASS, LH

main68151-0C030iUCK6#200711-200904

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-0C020iUCK6#200711-200904

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-0C020iUCK6#200711-200904

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0C021iUCK6#200711-200904

main68610-0C022iUSK6#201604-201708

main68610-0C023iUSK6#201802

68620CHECK ASSY, FRONT DOOR, LH

main68620-0C021iUPK6#200711-201208

main68620-0C022iUSK6#201604-201708

main68620-0C023iUSK6#201802

75921CTAPE, BLACK OUT, NO.1 RH

main75921-0C020iUSK6#200711-201708

75922MTAPE, BLACK OUT, NO.1 LH

main75922-0C020iUSK65..HTWCF201708-201709

9008017185

main90080-17185

9008410049

main90084-10049

90119A0063

main90119-A0063

90119A0125

main90119-A0125

90119A0360

main90119-A0360

90159A0007

main90159-A0007

9018906227

main90189-06227

9033330008

main90333-30008

90333A0002

main90333-A0002

90467A0017

main90467-A0017

43 parts on this diagram · 3 diagrams in section
