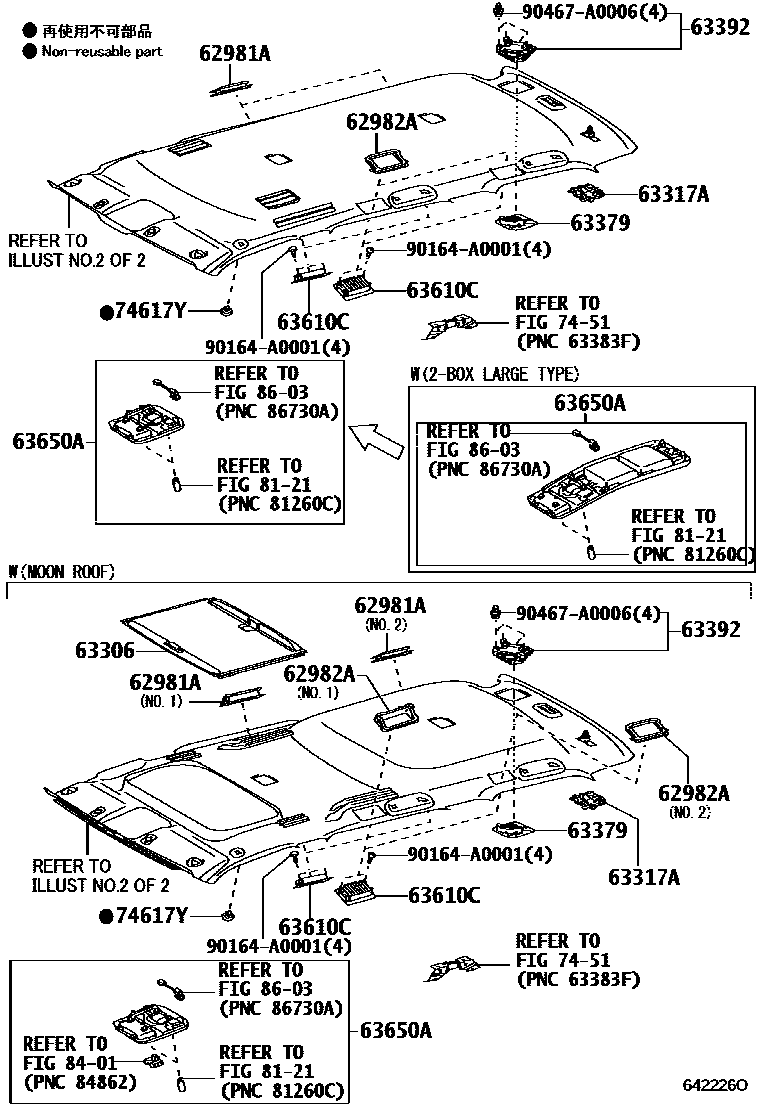

ROOF HEADLINING & SILENCER PAD
62981ABEZEL, ROOF SIDE REGISTER, RH
MOON ROOF-WITH,NO.1; NO.1
MOON ROOF-WITH,NO.2; NO.2
62982ABEZEL, ROOF SIDE REGISTER, LH
MOON ROOF-WITH,NO.1; NO.1
NO.2
63306TRIM SUB-ASSY, SUNSHADE
GRAY,TRIM1#
MOON ROOF-WITH,SAND BEIGE,TRIM4#; SAND BEIGE,TRIM4#
63379COVER, ROOF HEADLINING REAR TRIM, LH
LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#
SAND BEIGE,TRIM4#
63392TRIM, ROOF HEADLINING, REAR
LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#
SAND BEIGE,TRIM4#
63610CREGISTER ASSY, AIR OUTLET, NO.1
LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#
SAND BEIGE,TRIM4#
63650ABOX ASSY, ROOF CONSOLE
main63650-0C310-B0supersedes 63650-0C320-B0iUCK6#,USK6#..LIMD; UCK6#,USK6#..SR5; USK6#..PLAT200711-200903
LT.GRAY,TRIM1#,2#; MOON ROOF-WITH&AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL,LT.GRAY,TRIM1#,2#; MOON ROOF-WITH&AUDIO-AVN AM/FM/CD 14SPEAKER JBL,LT.GRAY,TRIM1#,2#; MOON ROOF-WITH,LT.GRAY,TRIM1#
main63650-0C310-E0supersedes 63650-0C320-E0iUCK6#,USK6#..LIMD; UCK6#,USK6#..SR5; USK6#..PLAT200711-200903
MOON ROOF-WITH&AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL,SAND BEIGE,TRIM4#; MOON ROOF-WITH&AUDIO-AVN AM/FM/CD 14SPEAKER JBL,SAND BEIGE,TRIM4#; MOON ROOF-WITH,SAND BEIGE,TRIM4#; SAND BEIGE,TRIM4#
LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#
SAND BEIGE,TRIM4#
MOON ROOF-WITH,LT.GRAY,TRIM1#,2#
MOON ROOF-WITH,SAND BEIGE,TRIM4#
OVER HEAD CONSOLE-WITH(2-BOX LARGE TYPE),LT.GRAY,TRIM1#,2#
OVER HEAD CONSOLE-WITH(2-BOX LARGE TYPE),SAND BEIGE,TRIM4#
LT.GRAY,TRIM1#; OVER HEAD CONSOLE-WITH(2-BOX LARGE TYPE)&AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL,LT.GRAY,TRIM1#,2#; OVER HEAD CONSOLE-WITH(2-BOX LARGE TYPE)&AUDIO-AVN AM/FM/CD 14SPEAKER JBL,LT.GRAY,TRIM1#,2#
OVER HEAD CONSOLE-WITH(2-BOX LARGE TYPE)&AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL,SAND BEIGE,TRIM4#; OVER HEAD CONSOLE-WITH(2-BOX LARGE TYPE)&AUDIO-AVN AM/FM/CD 14SPEAKER JBL,SAND BEIGE,TRIM4#; SAND BEIGE,TRIM4#
OVER HEAD CONSOLE-WITH(2-BOX LARGE TYPE)&AUDIO-AVN(DOP) 8SPEAKER,LT.GRAY,TRIM1#,2#
OVER HEAD CONSOLE-WITH(2-BOX LARGE TYPE)&AUDIO-AM/FM CD SDARS BLUETOOTH 8SPEAKER,SAND BEIGE,TRIM4#; SAND BEIGE,TRIM4#
AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL,LT.GRAY,TRIM1#,2#; AUDIO-AVN AM/FM/CD 14SPEAKER JBL,LT.GRAY,TRIM1#,2#
AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL,SAND BEIGE,TRIM4#; AUDIO-AVN AM/FM/CD 14SPEAKER JBL,SAND BEIGE,TRIM4#
AUDIO-AM/FM CD SDARS BLUETOOTH 8SPEAKER,LT.GRAY,TRIM1#,2#
AUDIO-AM/FM CD SDARS BLUETOOTH 8SPEAKER,SAND BEIGE,TRIM4#
MEXICO SPEC,LT.GRAY,TRIM1#,2#; SOUTH AMERICA SPEC,LT.GRAY,TRIM1#,2#; USA POSSESSION SPEC,LT.GRAY,TRIM1#,2#
MEXICO SPEC,SAND BEIGE,TRIM4#; SOUTH AMERICA SPEC,SAND BEIGE,TRIM4#; USA POSSESSION SPEC,SAND BEIGE,TRIM4#
7451ARMREST & VISOR
74617YPLUG, ASSIST GRIP
LT.GRAY,TRIM1#,2#
SAND BEIGE,TRIM4#
8121INTERIOR LAMP
8401SWITCH & RELAY & COMPUTER
8603NAVIGATION & FRONT MONITOR DISPLAY
90164A0001
main90164-A0001
90467A0006
main90467-A0006
15 parts on this diagram · 3 diagrams in section
