SIDE MEMBER
5752
61035AREINFORCEMENT SUB-ASSY, BACK DOOR OPENING, RH
61103GGUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61131CPILLAR, FRONT BODY, OUTER RH
61141CEXTENSION, FRONT PILLAR, UPPER INNER RH
61147CEXTENSION, FRONT BODY PILLAR, OUTER RH
61161APILLAR, FRONT BODY, INNER RH
61163PILLAR, FRONT BODY, INNER RH
61168CBRACKET, NO.6 PILLAR OUTER
61173REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER
61211RAIL, ROOF SIDE, OUTER RH
61231RAIL, ROOF SIDE, INNER RH
61233ARAIL, ROOF SIDE, INNER NO.2 RH
61237EBRACKET, ASSIST GRIP, NO.1
61303ARAIL SUB-ASSY, NO.2 CENTER, OUTER RH
61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
61315CRETAINER, DOOR LOCK STRIKER, RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61411PANEL, ROCKER, OUTER RH
61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH
61605EPANEL, QUARTER, RH
61607EPANEL, QUARTER WHEEL HOUSE, INNER RH
61615FREINFORCEMENT, QUARTER PANEL, OUTER RH
61621DTROUGH, BACK DOOR OPENING, RH
61625GEXTENSION, QUARTER PANEL, REAR RH
61627EEXTENSION, QUARTER PANEL, REAR LOWER RH
61637CBRACE, QUARTER WHEEL HOUSE, NO.2 RH
61731BPANEL, ROOF SIDE, INNER RH
61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH
61771PATCH, BACK DOOR OPENING, UPPER RH
61773APATCH, BACK DOOR OPENING, LOWER RH
61777DRETAINER, BACK DOOR SIDE STOPPER, RH
66237APROTECTOR, QUARTER PANEL OUTER, RH
67865CWEATHERSTRIP, CENTER PILLAR UPPER END, RH
6786712150CLIP, DOOR WEATHERSTRIP
main67867-12150
90119A0006
main90119-A0006

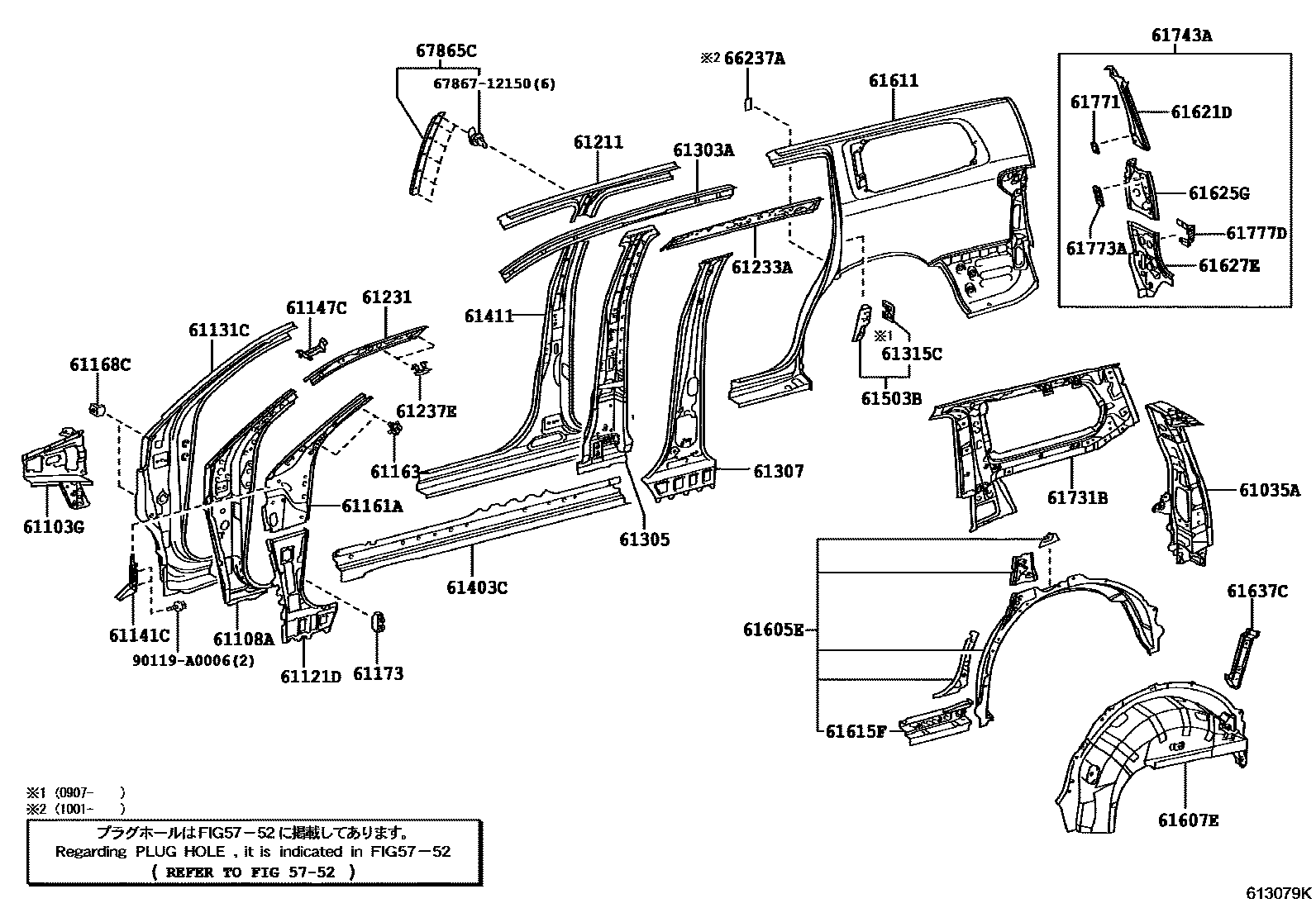

40 parts on this diagram · 2 diagrams in section
