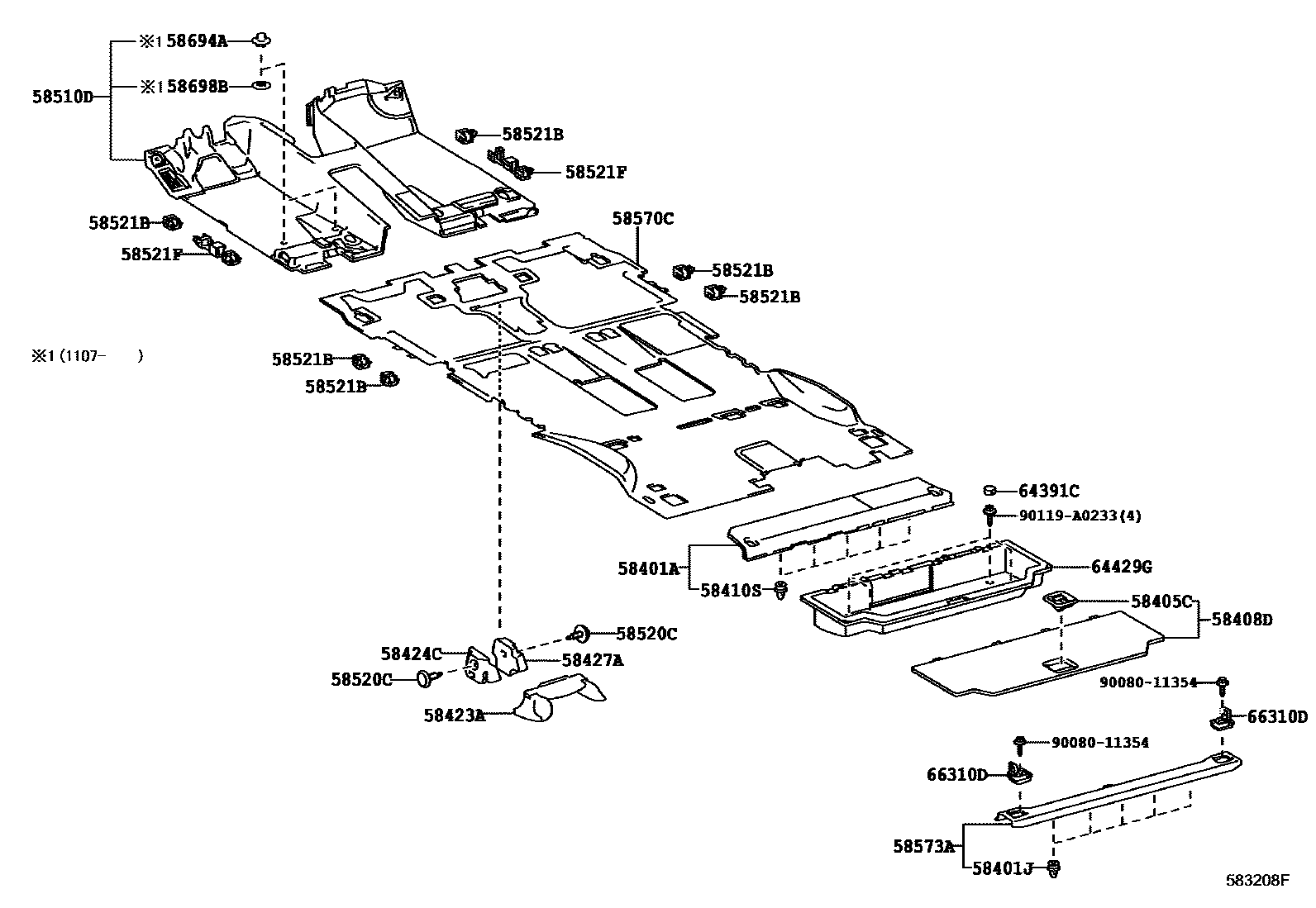

FLOOR MAT & SILENCER PAD

58401ABOARD SUB-ASSY, DECK, NO.1

main58401-0C010-B1iUSK6#..LIMD,SR5200711-200812

GRAY,TRIM1#

main58401-0C010-C1iUPK6#..SR5;USK6#..PLAT200711-201708

BLACK,TRIM13,2#,44

main58401-0C010-E1iUSK6#..LIMD,SR5200711-200812

SAND BEIGE,TRIM4#

58401JCLIP(FOR DECK BOAD)

main90467-A0005×5iUPK6#201002-201208

main90467-A0006×5iUPK6#,USK6#200711-201001

58405CLOCK SUB-ASSY, DECK BOARD

main58405-0C010-B1iUSK6#201708

GRAY,TRIM1#

main58405-0C010-C1iUPK6#,USK6#..LIMD; UPK6#,USK6#..PLAT,SR5200711-201708

BLACK,TRIM13,2#,44; BLACK,TRIM13,44

main58405-0C010-E1iUCK6#200711-200904

SAND BEIGE,TRIM4#

58408DBOARD SUB-ASSY, DECK, NO.2

main58408-0C010-B1iUPK6#;USK6#..PLAT200711-201708

GRAY,TRIM13

main58408-0C010-C1iUPK6#,USK6#..LIMD; USK6#..SR5200812-201708

BLACK,TRIM13,2#,44; BLACK,TRIM13,44

main58408-0C010-E1iUCK6#200711-200904

SAND BEIGE,TRIM4#

58410SCLIP, DECK BOARD

main90467-A0006×5iUPK6#200711-201208

58423ASPACER, REAR FLOOR BOARD, NO.2

main58423-0C010iUPK6#200711-201208

58424CSPACER, REAR FLOOR BOARD, NO.3

main58424-0C010iUPK6#200711-201208

58427ASPACER, REAR FLOOR BOARD

main58427-0C010iUPK6#200711-201208

58510DCARPET ASSY, FLOOR, FRONT

main58510-0C450-B0iUSK65..HTWCF200808-200904

GRAY,TRIM1#

main58510-0C450-C0iUCK6#,USK6#..(PLAT,SR5)..HTWC; UCK6#,USK6#..LIMD..HTWC200711-200904

BLACK,TRIM13; BLACK,TRIM13,2#

main58510-0C450-E0iUCK6#,USK6#200711-200904

SAND BEIGE,TRIM4#

main58510-0C580-B0iUPK6#,USK6#200904-201106

GRAY,TRIM13

main58510-0C580-C0iUPK6#,USK6#..LIMD; UPK6#,USK6#..PLAT,SR5200904-201106

BLACK,TRIM13,2#,44; BLACK,TRIM13,44

main58510-0C580-E0iUPK6#,USK6#200904-201106

SAND BEIGE,TRIM44

main58510-0C600-C0iUPK6#,USK6#..LIMD; UPK6#,USK6#..PLAT,SR5201107-201708

BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-23×2iUSK6#201610-201708

BLACK

main90467-07049-C0×2iUCK6#,UPK6#,USK6#200711-201610

BLACK

58521BHOOK, FLOOR CARPET

main58521-0C030×6iUSK6#201708

58521FHOOK, FLOOR CARPET

main58521-0C040×2iUSK6#200711-201708

58570CCARPET ASSY, REAR FLOOR

main58570-0C030-C0iUSK6#..LIMD,SR5201708-201908

BLACK,TRIM1#,4#

main58570-0C040-B0iUCK6#,USK6#..LIMD,SR5200711-200812

GRAY,TRIM1#

main58570-0C040-C0iUCK6#..LIMD; UCK6#..SR5200812-200904

BLACK,TRIM13; BLACK,TRIM13,2#

main58570-0C040-E0iUCK6#200711-200904

SAND BEIGE,TRIM4#

main58570-0C050-B0iUSK6#..PLAT200711-201106

GRAY,TRIM13

main58570-0C050-C0iUSK6#..PLAT201106-201708

BLACK,TRIM1#,2#,4#

main58570-0C050-E0iUSK6#..PLAT200711-201106

SAND BEIGE,TRIM44

main58570-0C110-C0iUSK6#..PLAT201908

BLACK,TRIM1#,2#,4#

main58570-0C120-C0iUSK6#..LIMD; USK6#..SR5201908

BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

main58570-0C030-B0iUCK6#,UPK6#,USK6#..LIMD,SR5200711-201106

NUMBER OF PASSENGER-8,GRAY,TRIM1#

main58570-0C030-E0iUCK6#,UPK6#,USK6#..LIMD,SR5200711-201106

NUMBER OF PASSENGER-8,SAND BEIGE,TRIM4#

main58570-0C130-C0iUSK6#..LIMD,SR5201908

NUMBER OF PASSENGER-7,BLACK,TRIM1#,2#,4#

58573APLATE, REAR FLOOR MAT SUPPORT

main58573-0C020-C0iUSK6#..SR5..HTWC;USK65..(LIMD,SR5)..HTWCF; USK65..PLAT;USK60..LIMD,PLAT;USK65..LIMD..HTWC201708

BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

main58573-0C020-E0iUPK6#,USK6#200711-201106

DK. BROWN,TRIM44

58694APLATE, MAT SET, UPPER

main58694-76010×2iUSK6#201708

58698BPLATE, MAT SET, LOWER

main58698-76010×2iUSK6#201107-201708

64391CCAP

main65896-0C010×4iUSK6#201708

64429GBOX, LUGGAGE COMPARTMENT TRIM

main64070-0C010iUCK6#200711-200904

66310DHOOK ASSY, ROPE

main66310-30011-C0×2iUPK6#,USK6#..LIMD; UPK6#,USK6#..PLAT,SR5200711-201106

BLACK,TRIM1#,2#,44; BLACK,TRIM1#,44

main66310-30011-C1×2iUSK6#..LIMD; USK6#..PLAT,SR5201701-201708

BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

main66310-30011-E1×2iUPK6#,USK6#200711-201106

DK. BROWN,TRIM44

9008011354

main90080-11354

90119A0233

main90119-A0233

21 parts on this diagram · 1 diagram in section
