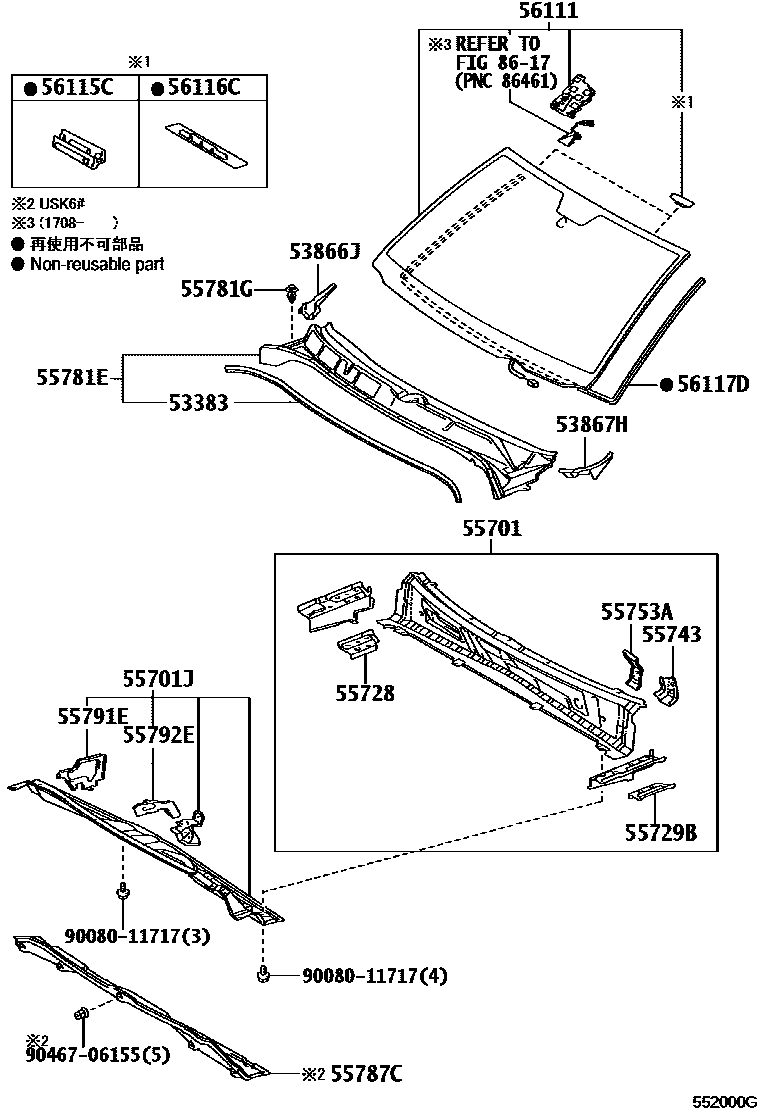

COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-0C020iUPK6#200711-201709

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-0C030iUCK6#200711-201709

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-0C030iUCK6#200711-201709

55701PANEL SUB-ASSY, COWL

main55700-0C030iUCK6#,USK6#200711-200811

main55700-0C031iUCK6#200812-201709

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-0C020iUCK6#200711-201709

55728REINFORCEMENT, HOOD STOPPER, RH

main55728-0C010iUCK6#200711-201709

55729BREINFORCEMENT, HOOD STOPPER, LH

main55729-0C010iUCK6#200711-201709

55743PANEL, COWL TOP OUTSIDE CORNER, RH

main55743-0C020iUCK6#200711-201709

55753ABRACKET, INSTRUMENT PANEL TO COWL

main55753-0C010iUCK6#200711-201709

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-0C050iUCK6#200711-201708

main55708-0C060iUSK65..HTWCF201708-201709

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-10206iUCK6#200711-201709

55787CINSULATOR, COWL TOP PANEL, NO.1

main55787-0C020iUSK6#200711-201709

55791ECOVER, HEATER DUCT HOLE

main55791-0C010iUCK6#200711-201709

55792ECOVER, HEATER AIR DUCT HOLE, NO.2

main55792-0C010iUSK65..HTWCF200711-201709

56111GLASS, WINDSHIELD

main56101-0C070iUCK6#,USK6#..SR5200711-200903

*LAM,T=5.36,GREEN

main56101-0C071iUPK6#,USK6#..SR5200904-200911

*LAM,T=5.36,GREEN

main56101-0C080iUCK6#,USK6#..LIMD,PLAT200711-200903

*LAM,T=5.36,GREEN

main56101-0C081iUPK6#..LIMD200904-201708

*LAM,T=5.36,GREEN

main56101-0C110iUPK6#,USK6#..SR5200911-201007

*LAM,T=5.36,GREEN

main56101-0C111iUPK6#..SR5201008-201708

*LAM,T=5.36,GREEN

main56101-0C150iUSK6#201708

56115CSTOPPER, WINDSHIELD GLASS

main56115-30120iUCK6#200711-201708

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iUCK6#200711-201708

56117DDAM, WINDSHIELD GLASS ADHESIVE

main90998-91004iUSK6#201708

*D,L=3151,SOUTH AMERICA SPEC&WITHOUT(COLD AREA SPEC)

main90998-91004iUSK6#201708

*D,L=3151,WITHOUT(COLD AREA SPEC)

main90998-91004iUSK60;USK65..(LIMD,PLAT)..HTWC200711-201708

*D,L=3151

main90998-91004iUSK60;USK65..(LIMD,PLAT)..HTWC201708

*D,L=3151,USA POSSESSION SPEC&WITHOUT(COLD AREA SPEC)

main90998-91004iUSK60;USK65..(LIMD,PLAT)..HTWC201708

*D,L=3151,MEXICO SPEC&WITHOUT(COLD AREA SPEC)

main90998-91004iUSK60;USK65..(LIMD,PLAT)..HTWC201708

*D,L=3151,SOUTH AMERICA SPEC

main90998-91004iUCK6#200711-201708

*D,L=3151,COLD AREA SPEC

8617PRE-COLLISION SYSTEM

→ Go to FIG 86-17

9008011717

main90080-11717

9046706155

main90467-06155

21 parts on this diagram · 1 diagram in section
