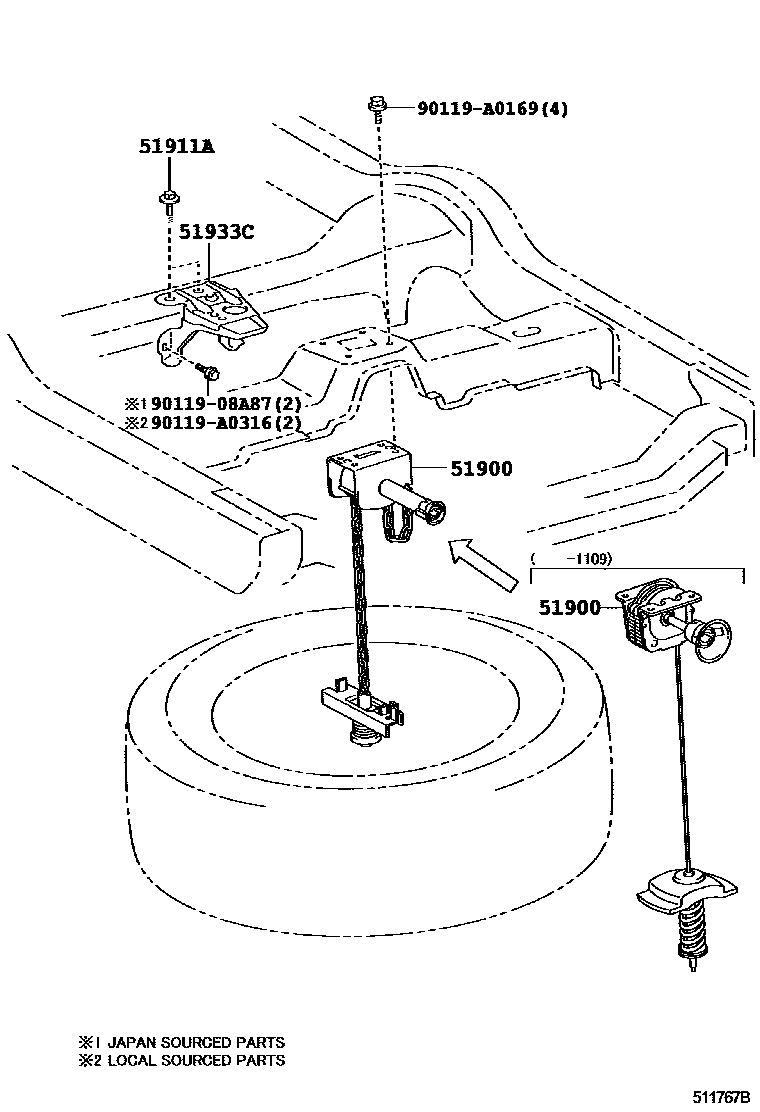

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-0C040iUCK6#200711-200904

main51900-0C041iUPK6#,USK6#201104-201109

main51900-34040iUPK6#201109-201208

51911ABOLT, SPARE WHEEL

main51911-0C010×2iUCK6#200711-200904

51933CSTOPPER, SPARE WHEEL

main51903-0C010iUCK6#200711-200904

9011908A87

main90119-08A87

90119A0169

main90119-A0169

90119A0316

main90119-A0316

6 parts on this diagram · 1 diagram in section
