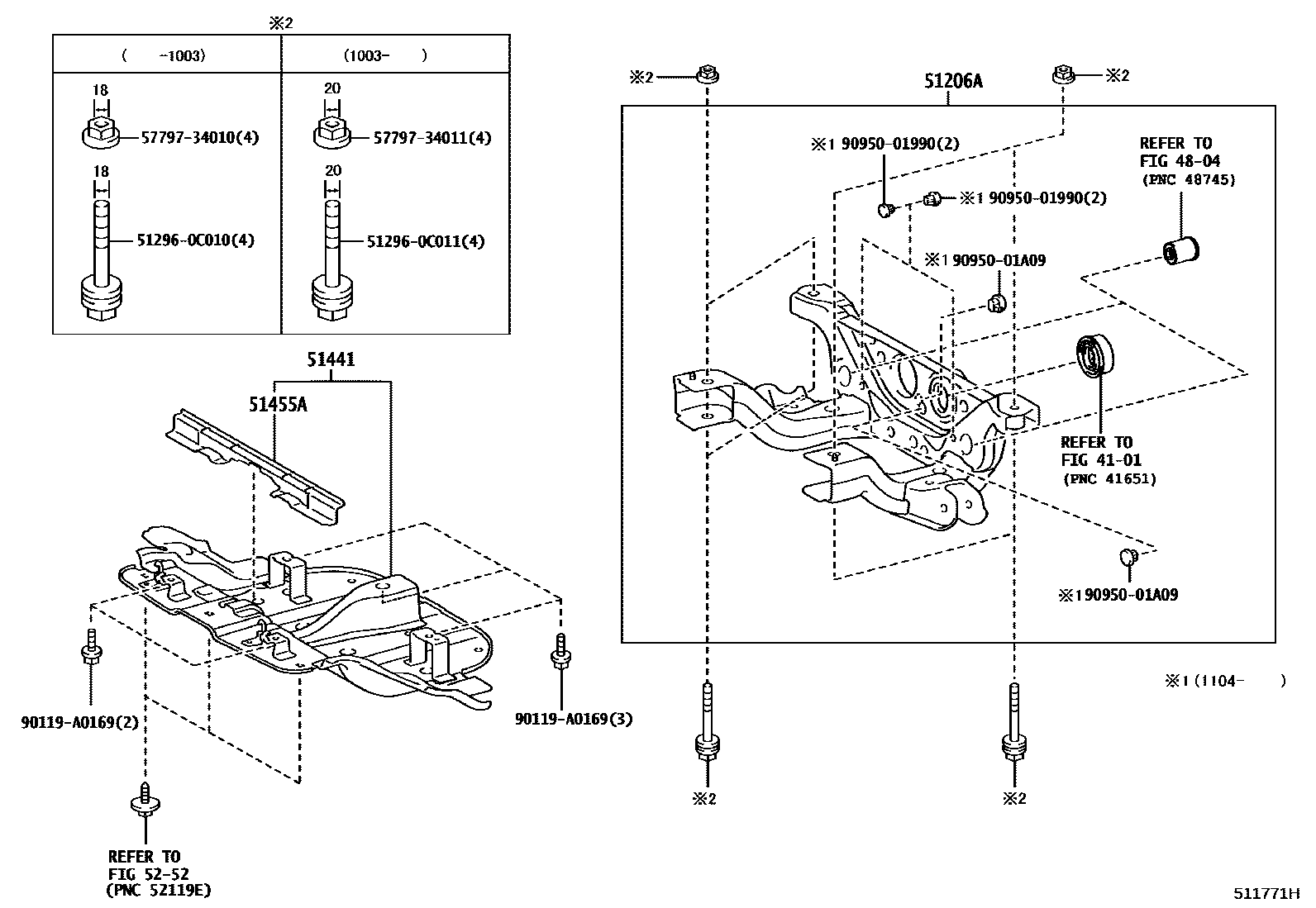

SUSPENSION CROSSMEMBER & UNDER COVER

4101REAR AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 41-01

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51270-0C010iUCK6#200711-201002

main51270-0C011iUPK6#,USK6#201003-201103

main51270-0C012iUPK6#201104-201708

51441COVER, ENGINE UNDER, NO.1

main51410-0C010iUCK6#200711-201708

51455ASEAL, ENGINE UNDER COVER, NO.1

main51455-0C010iUCK6#200711-201708

5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

512960C010BOLT, FRONT SUSPENSION MEMBER MOUNTING

main51296-0C010

512960C011BOLT, FRONT SUSPENSION MEMBER MOUNTING

main51296-0C011

5779734010

main57797-34010

5779734011

main57797-34011

90119A0169

main90119-A0169

9095001990

main90950-01990

9095001A09

main90950-01A09

13 parts on this diagram · 1 diagram in section
