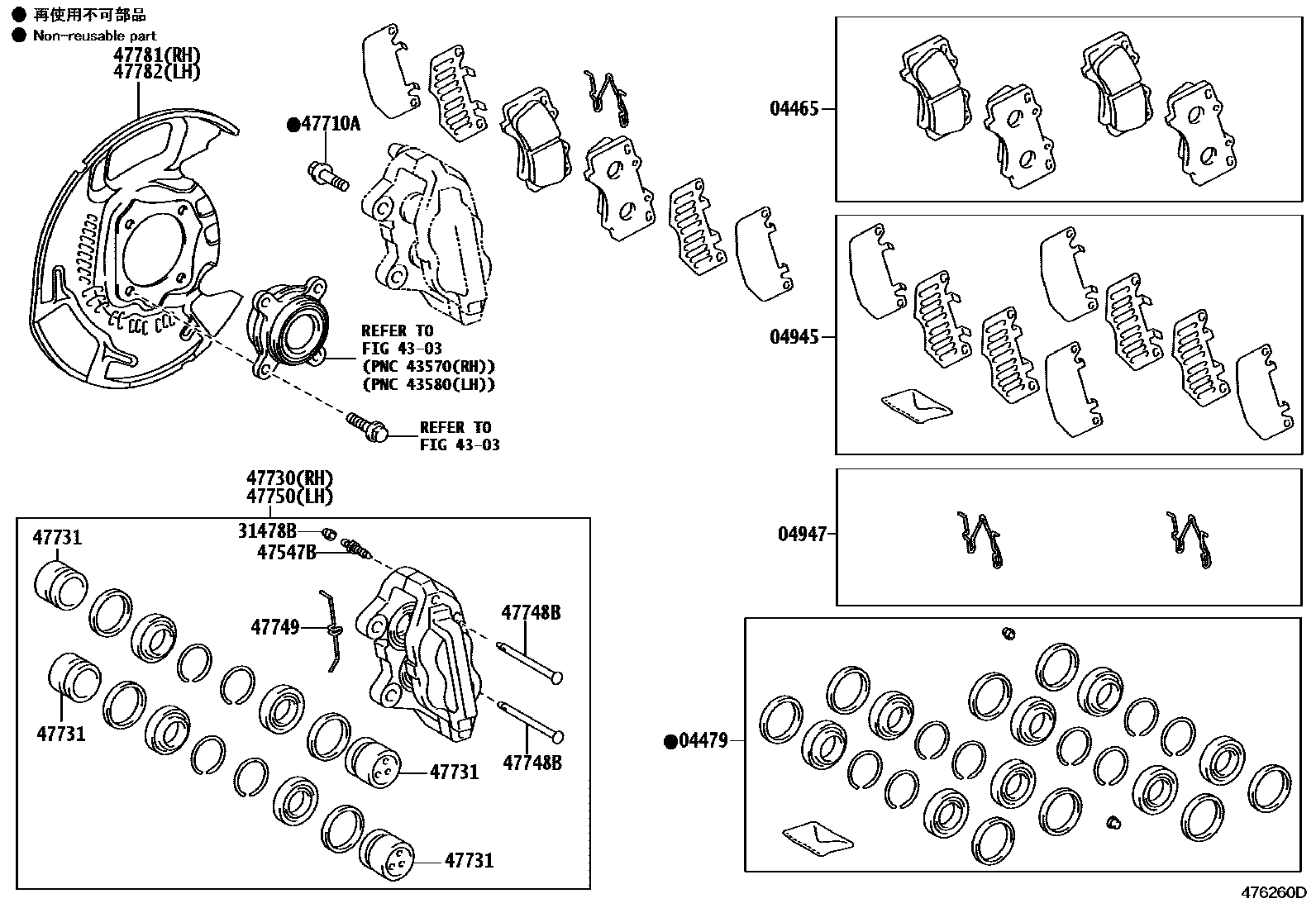

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-02440iUSK6#..HTWC201708

MARK ADVICS VC070H

main04465-0C020iUCK6#200711-200904

MARK ADVICS PV565H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0C050iUCK6#200711-200904

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-0C040iUSK6#..HTWC201708

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0C030iUCK6#200711-200904

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iUCK6#200711-200904

4303FRONT AXLE HUB

→ Go to FIG 43-03

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-04010×2iUCK6#200711-200904

main47547-35290×2iUSK6#201508-201708

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-A0336×4iUSK6#..HTWC201708

*14-1.5PX35-30.5

main90119-A0277×4iUCK6#,UPK6#,USK6#200711-201508

*12-1.25PX40-30

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0C030iUCK6#200711-200904

main47730-0C040iUSK6#201508-201708

47731PISTON, FRONT DISC BRAKE

main47731-0C030×8iUCK6#200711-200904

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90240-06024×4iUCK6#200711-200904

47749CLIP, PIN HOLD

main90016-AS903×2iUCK6#200711-200904

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0C030iUCK6#200711-200904

main47750-0C040iUSK6#201508-201708

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-0C030iUCK6#,UPK6#,USK6#200711-201109

main47703-0C031iUPK6#,USK6#201110-201708

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-0C030iUCK6#,UPK6#,USK6#200711-201109

main47704-0C031iUPK6#,USK6#201110-201708

15 parts on this diagram · 1 diagram in section
