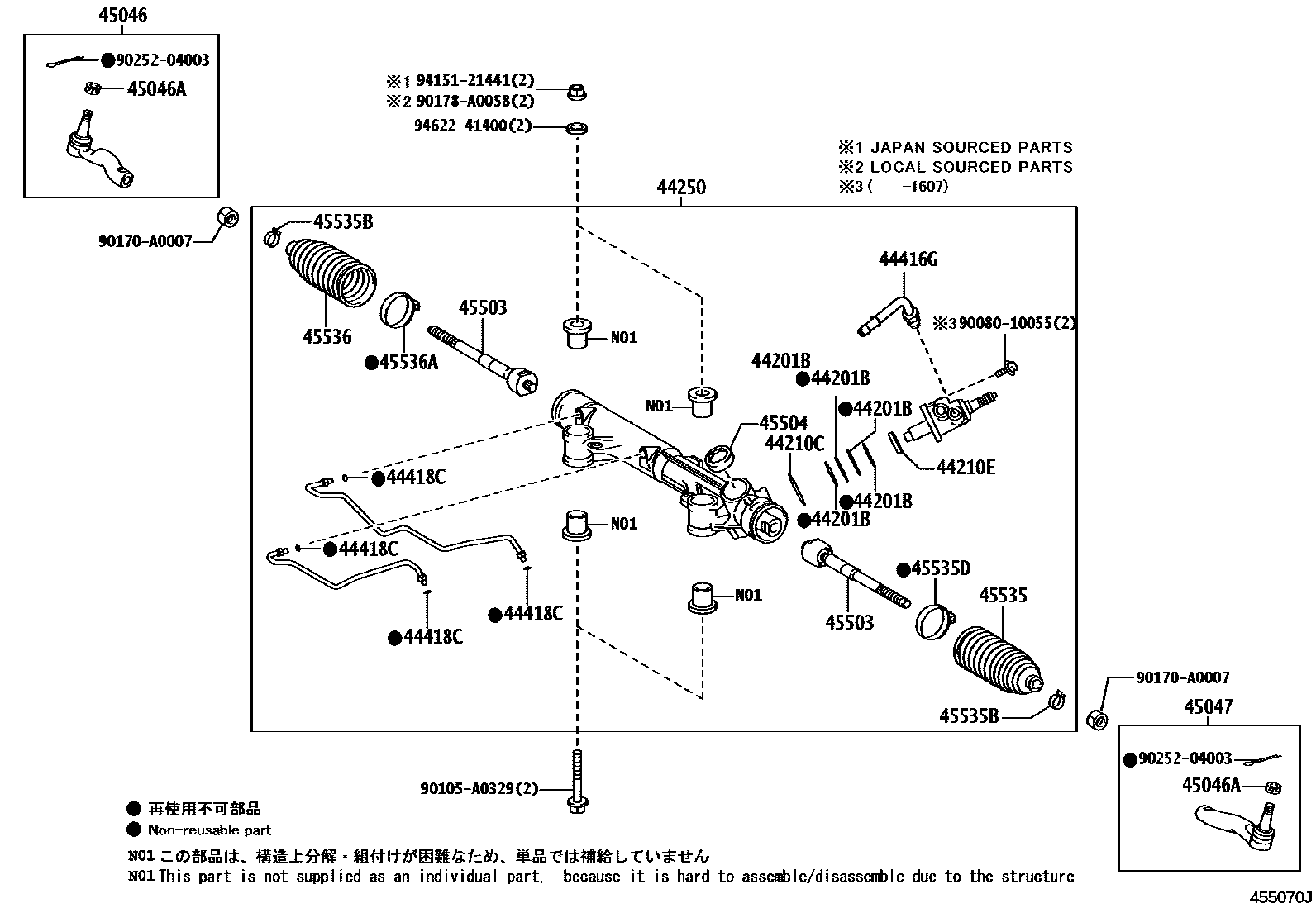

FRONT STEERING GEAR & LINK

0001 1 0002 1

44201BSPACER(FOR POWER STEERING CONTROL VALVE)

main90560-33003×4iUCK6#200711-200904

44210CRING, O(FOR POWER STEERING CONTROL VALVE)

main90301-A0003iUCK6#200711-200904

44210ESEAL, OIL(FOR POWER STEERING CONTROL VALVE)

main44214-06010iUCK6#200711-200904

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-0C090iUCK6#,USK6#200711-200903

main44250-0C091iUPK6#,USK6#200904-201007

main44250-0C120iUPK6#201008-201208

main44250-0C121iUSK6#201710

44416GTUBE, RETURN(FOR STEERING GEAR)

main44416-0C010iUCK6#,UPK6#,USK6#200711-201708

44418CRING, O(FOR STEERING TURN PRESSURE TUBE)

main90080-30046×4iUCK6#200711-200904

45046END SUB-ASSY, TIE ROD, RH

main45046-09560iUCK6#200711-200904

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-16009×2iUCK6#200711-200904

45047END SUB-ASSY, TIE ROD, LH

main45047-09260iUCK6#200711-200904

45503END SUB-ASSY, STEERING RACK

main45503-0C030×2iUCK6#200711-200904

45504END SUB-ASSY, STEERING RACK, NO.2

main45504-0C020iUCK6#200711-200904

45535BOOT, STEERING RACK, NO.1

main45535-0C020iUCK6#200711-200904

main45535-0C030iUSK6#..HTWC201710

45535BCLIP(FOR STEERING RACK BOOT)

main90466-A0005×2iUCK6#200711-200904

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-A0004iUCK6#200711-200904

45536BOOT, STEERING RACK, NO.2

main45535-0C020iUCK6#200711-200904

main45535-0C030iUSK6#..HTWC201710

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-A0004iUCK6#200711-200904

9008010055

main90080-10055

90105A0329

main90105-A0329

90170A0007

main90170-A0007

90178A0058

main90178-A0058

9025204003

main90252-04003

9415121441

main94151-21441

9462241400

main94622-41400

23 parts on this diagram · 2 diagrams in section
