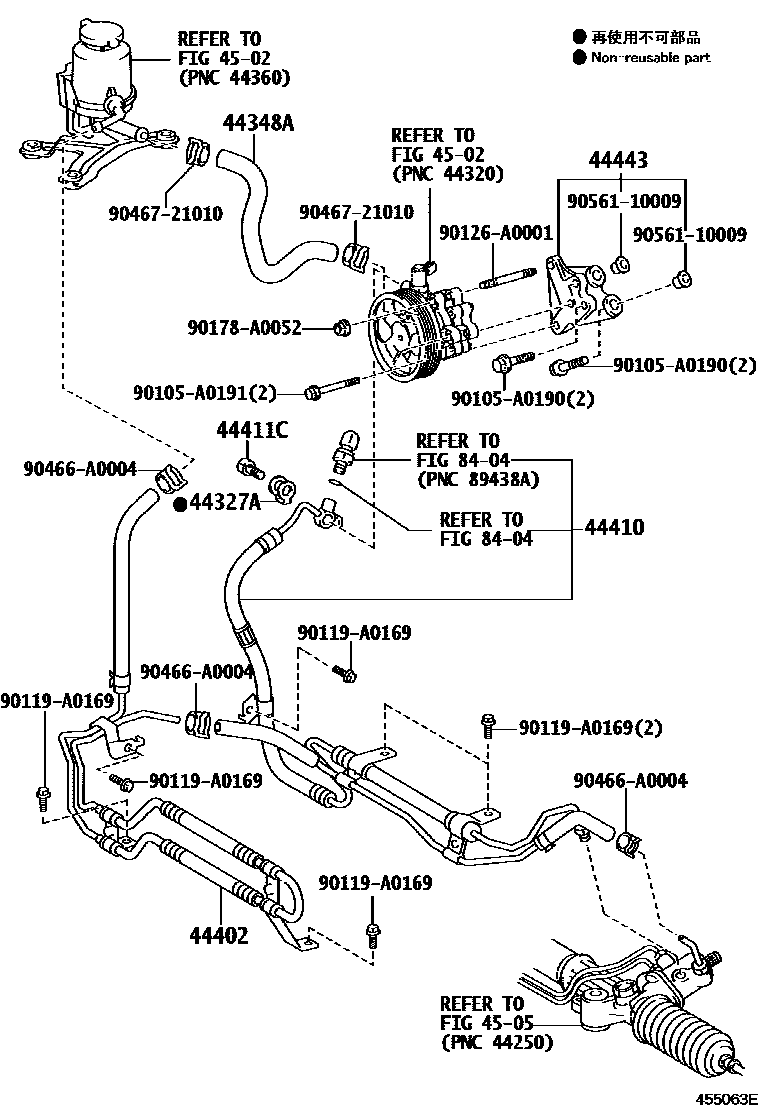

POWER STEERING TUBE

0001 1 0002 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30040iUPK6#200711-201208

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-0C050iUCK6#200711-200904

main44348-0C060iUPK6#200711-201208

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-0C010iUCK6#200711-200904

main44402-0C011iUPK6#200910-201208

main44402-0C012iUSK6#..HTWC201708

44410TUBE ASSY, PRESSURE FEED

main44410-0C130iUCK6#200711-200712

main44410-0C131iUCK6#200801-200904

main44410-0C140iUSK6#200711-200712

main44410-0C141iUSK6#200801-200807

main44410-0C150iUPK6#200807-201208

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16034iUCK6#200711-200904

44443BRACKET, PUMP

main44443-0C010iUCK6#200711-200904

(L)

main44443-60100iUCK6#200711-200904

(J)

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

90105A0190

main90105-A0190

90105A0191

main90105-A0191

90119A0169

main90119-A0169

90126A0001

main90126-A0001

90178A0052

main90178-A0052

90466A0004

main90466-A0004

9046721010

main90467-21010

9056110009

main90561-10009

17 parts on this diagram · 2 diagrams in section
