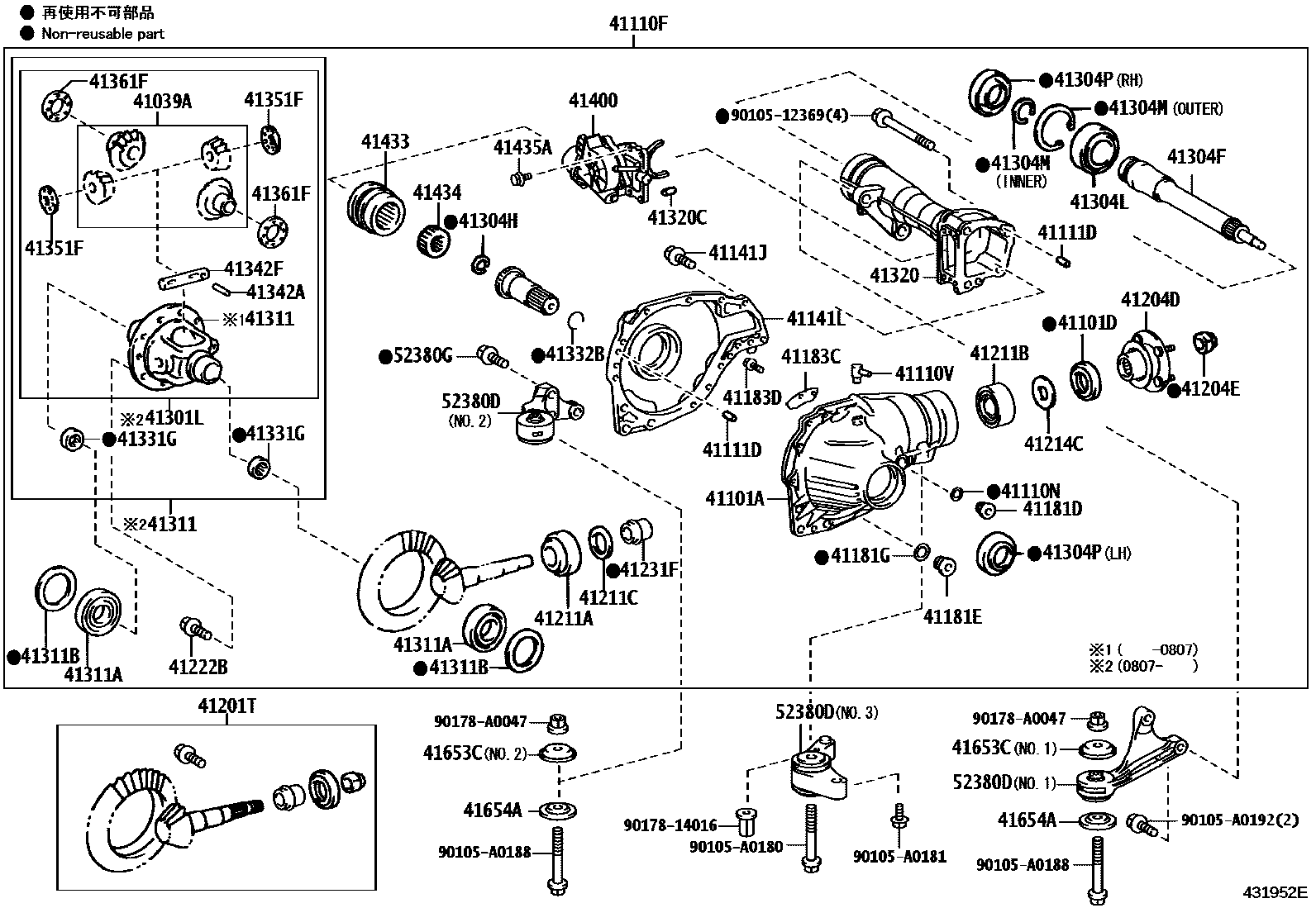

FRONT AXLE HOUSING & DIFFERENTIAL
41039AGEAR KIT, DIFFERENTIAL
41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT
41101DSEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)
41110FCARRIER ASSY, DIFFERENTIAL, FRONT
*FGR=43:11=3.909
*FGR=43:10=4.300,TOWING PACKAGE-WITH
*FGR=43:10=4.300,TOWING PACKAGE-WITH
41110NGASKET, FRONT DIFFERENTIAL FILLER PLUG
41110VUNION (FOR FRONT DIFFERENTIAL)
41111DPIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER)
41141JBOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
*10-1.25PX35-26
41141LRETAINER, FRONT DIFFERENTIAL CROSS SHAFT BEARING
41181DPLUG (FOR FRONT DIFFERENTIAL FILLER)
41181EPLUG (FOR FRONT DIFFERENTIAL DRAIN)
41181GGASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG)
41183CDEFLECTOR, FRONT DIFFERENTIAL BREATHER PLUG OIL
41183DBOLT (FOR FRONT DIFFERENTIAL BREATHER PLUG OIL DEFLECTOR)
41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT
*FGR=43:11=3.909
*FGR=43:10=4.300
41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT
41204ENUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT)
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41211CGEAR, DIFFERENTIAL RING
T=1.825
T=1.850
T=1.875
T=1.900
T=1.925
T=1.950
T=1.975
T=2.000
T=2.025
T=2.050
T=2.075
T=2.100
T=2.125
T=2.150
T=2.175
T=2.200
T=2.225
T=2.250
T=2.275
41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41301LCASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1
41304FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH
41304HRING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT)
41304LBEARING (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT RH)
41304MRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH)
INNER
OUTER
41304PSEAL, OIL (FOR DIFFERENTIAL SIDE GEAR SHAFT)
LH
RH
RH
LH
41311CASE, FRONT DIFFERENTIAL
41311ABEARING (FOR FRONT DIFFERENTIAL CASE)
41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)
T=1.50
T=1.52
T=1.54
T=1.56
T=1.58
T=1.60
T=1.62
T=1.64
T=1.66
T=1.68
T=1.70
T=1.72
T=1.74
T=1.76
T=1.78
T=1.80
T=1.82
T=1.84
T=1.86
T=1.88
T=1.90
T=1.92
T=1.94
T=1.96
T=1.98
T=2.00
T=2.02
T=2.04
T=2.06
T=2.08
T=2.10
T=2.12
T=2.14
T=2.16
T=2.18
T=2.20
T=2.22
T=2.24
T=2.26
T=2.28
T=2.30
T=2.32
T=2.34
41320TUBE ASSY, FRONT DIFFERENTIAL
41320CPIN, STRAIGHT (FOR FRONT DIFFERENTIAL TUBE)
41331GBEARING, NEEDLE ROLLER(FOR FRONT DIFFERENTIAL SIDE GEAR)
41332BRING, HOLE SNAP (FOR DIFF SIDE GEAR INTERMEDDIATE SHAFT)
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.45
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
41400ACTUATOR ASSY, DIFFERENTIAL VACUUM
41433SLEEVE, DIFFERENTIAL CLUTCH
41434HUB, DIFFERENTIAL CLUTCH
41435ABOLT (FOR DIFFERENTIAL CLUTCH CASE SETTING)
41653CSTOPPER, FRONT DIFFERENTIAL MOUNT, UPPER
NO.1
NO.2
41654ASTOPPER, DIFFERENTIAL MOUNT, LOWER
52380DSUPPORT ASSY, FRONT DIFFERENTIAL
NO.1
NO.3
NO.2
52380GBOLT(FOR FRONT DIFFERENTIAL SUPPORT ASSY)
9010512369
main90105-12369
90105A0180
main90105-A0180
90105A0181
main90105-A0181
90105A0188
main90105-A0188
90105A0192
main90105-A0192
9017814016
main90178-14016
90178A0047
main90178-A0047
55 parts on this diagram · 2 diagrams in section
