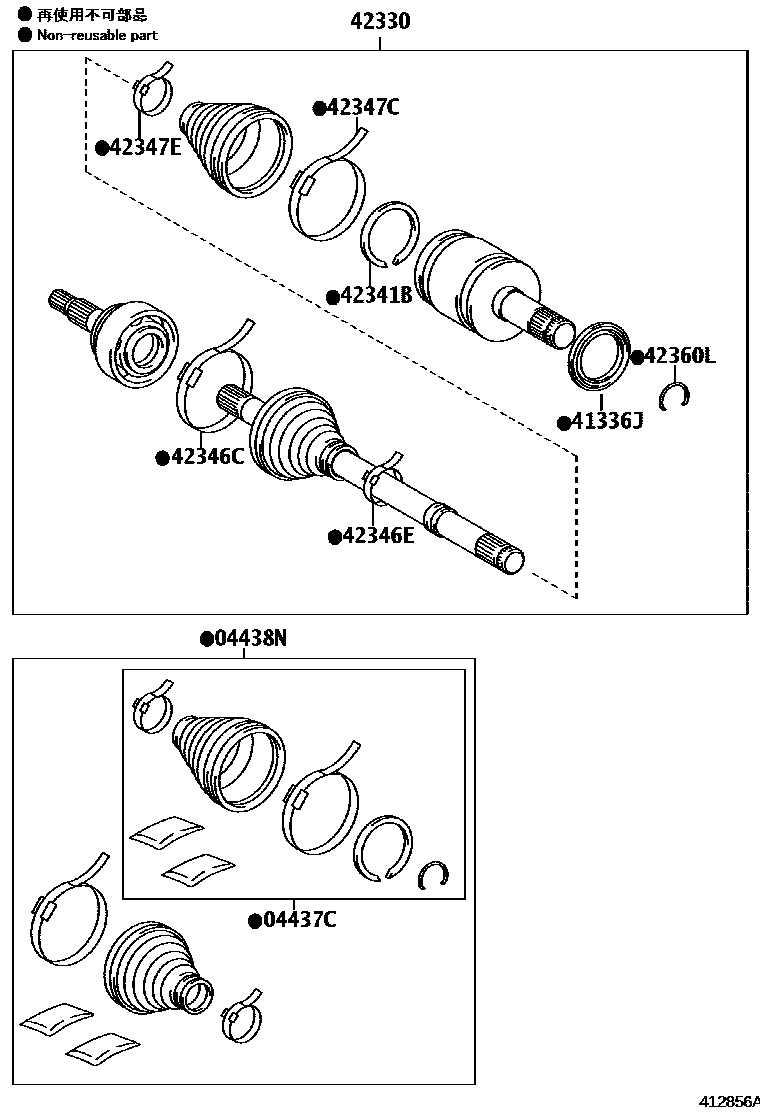

REAR AXLE SHAFT & HUB

0001 1RH 0002 1LH 0003 1

04437CBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, RH

main04439-0C010iUPK6#200711-201208

04438NBOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, RH

main04429-0C010iUCK6#200711-200904

41336JCOVER, REAR DRIVE SHAFT DUST, RH

main41336-0C010iUCK6#200711-200904

42330SHAFT ASSY, REAR DRIVE, RH

main42330-0C010iUCK6#200711-200904

main42330-0C020iUSK6#201908

42341BRING, SNAP (FOR REAR DRIVE SHAFT RH)

main43425-0C020iUCK6#200711-200904

42346CCLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)

main42345-0C070iUCK6#200711-200904

ID=114.3

42346ECLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)

main42345-0C100iUCK6#200711-200904

42347CCLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)

main42345-0C090iUCK6#200711-200904

ID=103.8

42347ECLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)

main42345-0C100iUCK6#200711-200904

42360LRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH)

main43425-0C050iUSK6#200711-201708

10 parts on this diagram · 3 diagrams in section
