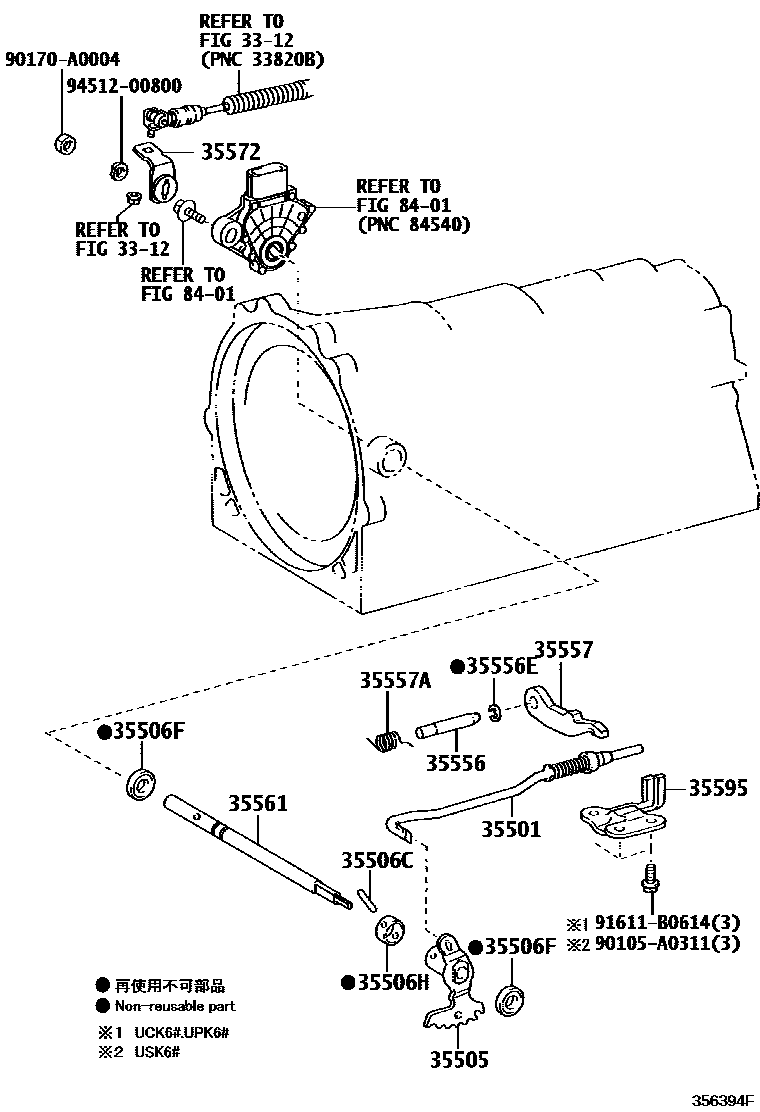

THROTTLE LINK & VALVE LEVER (ATM)

3312SHIFT LEVER & RETAINER

→ Go to FIG 33-12

35501ROD SUB-ASSY, PARKING LOCK

main35501-34020iUCK6#200711-200904

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-34020iUCK6#200711-200904

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iUCK6#200711-200904

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002×2iUCK6#200711-200904

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20025iUCK6#200711-200904

35556SHAFT, PARKING LOCK PAWL

main35556-60020iUCK6#200711-200904

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iUCK6#200711-200904

35557PAWL, PARKING LOCK

main35557-34010iUSK6#200711-201708

main35557-60040iUPK6#200711-201208

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90949-03123iUSK6#..HTWC201708

main90949-A3001iUPK6#,USK6#200711-200912

35561SHAFT, MANUAL VALVE LEVER

main35561-34010iUSK6#200711-201708

main35561-50020iUPK6#200711-201208

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-34010iUCK6#200711-200904

35595BRACKET, PARKING LOCK PAWL

main35595-34010iUSK6#..HTWC201708

main35595-60030iUPK6#200711-201208

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90105A0311

main90105-A0311

90170A0004

main90170-A0004

91611B0614

main91611-B0614

9451200800

main94512-00800

18 parts on this diagram · 1 diagram in section
