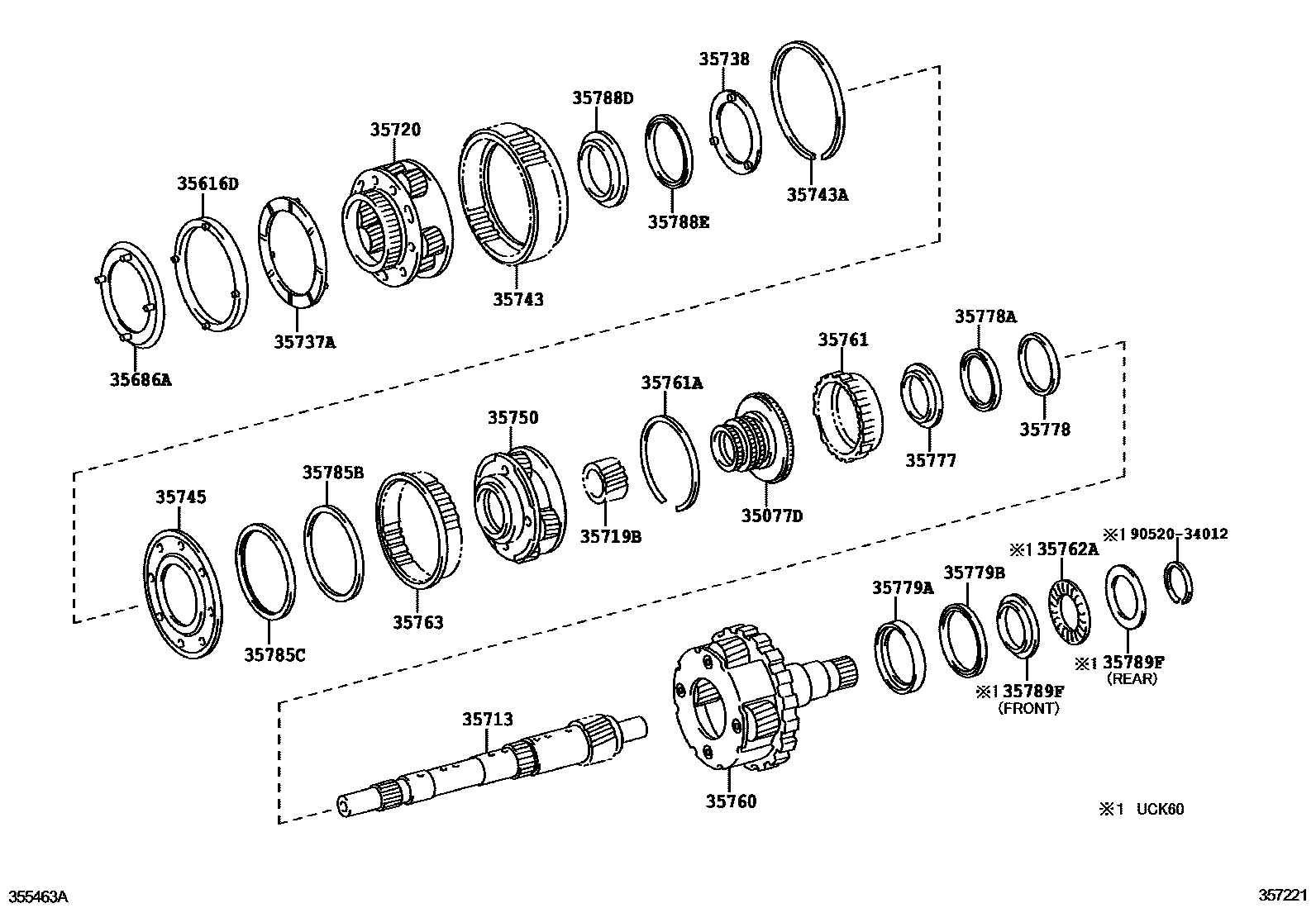

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35077DFLANGE SUB-ASSY, RR PLANETARY RING GEAR
35616DWASHER, CLUTCH DRUM THRUST
35686AWASHER, CLUTCH DRUM THRUST, NO.2
35713SHAFT, INTERMEDIATE
35719BGEAR, PLANETARY SUN
35720GEAR ASSY, FRONT PLANETARY
35737AWASHER, PLANETARY CARRIER THRUST, NO.1
35738WASHER, PLANETARY CARRIER THRUST, NO.2
35743GEAR, FRONT PLANETARY RING
35743ARING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)
35745FLANGE, FRONT PLANETARY RING GEAR
35750GEAR ASSY, CENTER PLANETARY
35760GEAR ASSY, REAR PLANETARY
35761ARING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)
35762ABEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANGE)
35763GEAR, CENTER PLANETARY RING
35778ABEARING, THRUST NEEDLE ROLLER
35779ARACE, THRUST BEARING, NO.9
35779BBEARING, THRUST NEEDLE ROLLER
35785CBEARING, THRUST NEEDLE ROLLER
35788DRACE, THRUST BEARING, NO.3
35788EBEARING, THRUST NEEDLE ROLLER
35789FRACE, THRUST BEARING (FOR REAR PLANETARY FLANGE)
REAR,T=3.85
REAR,T=3.95
REAR,T=4.05
REAR,T=4.15
REAR,T=4.25
FRONT
REAR,T=3.9
REAR,T=4.0
REAR,T=4.1
REAR,T=4.2
REAR,T=4.30
REAR,T=4.35
REAR,T=4.40
FRONT
REAR,T=3.85
REAR,T=3.95
REAR,T=4.05
T=4.00,MARK F,REAR
REAR,T=4.25
T=4.10,MARK J,REAR
REAR,T=4.0
REAR,T=4.1
T=4.25,MARK S,REAR
T=4.30,MARK T,REAR
REAR,T=4.35
REAR,T=4.40
9052034012
main90520-34012
28 parts on this diagram · 3 diagrams in section
