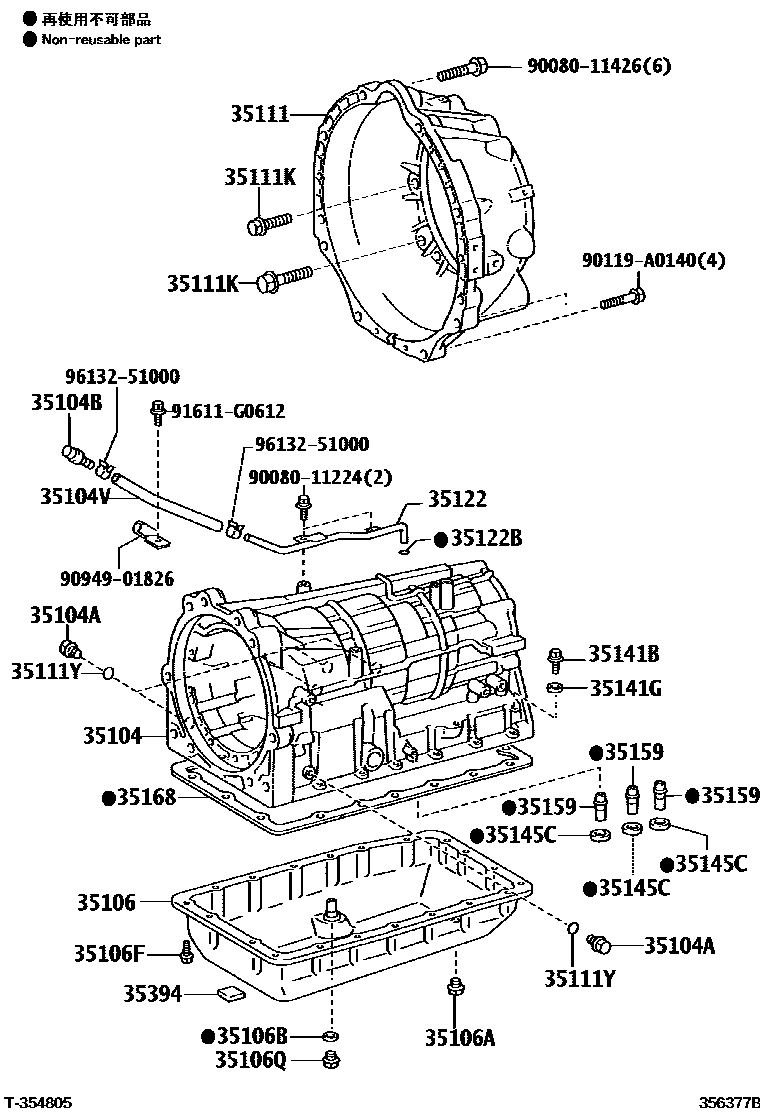

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A750E,A750F 0002 1AB60E,AB60F 0003 1A760E,A760F

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-0C010iUCK6#200711-200904

main35104-0C030iUSK6#200711-201708

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-A0001×5iUSK65..HTWCF201708-201709

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03168iUCK6#200711-200904

main90930-03188iUSK6#200711-201106

main90930-03211iUSK6#201106-201708

35104VHOSE (FOR BREATHER PLUG)

main35121-48030iUPK6#200904-201208

main90445-10020iUCK6#200711-200904

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-0C010iUCK6#200711-200904

main35106-0C030iUSK65..HTWCF201708-201709

main35106-0C040iUPK6#200904-201208

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iUCK6#200711-200904

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010×2iUCK6#200711-200904

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06173×20iUPK6#200903-201208

main90119-06A02×12iUSK6#201402-201708

main90119-A0164×20iUCK6#200711-200903

main90119-A0401×12iUSK6#201307-201402

main91611-B0625×12iUSK6#200711-201307

35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90341-10021iUCK6#200711-200904

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-0C030iUCK6#200711-200904

main35111-0C050iUSK6#..HTWC201708

main35111-0C060iUPK6#200904-201208

35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)

main90119-10947×2iUCK6#200711-200904

*10-1.50PX35-29.3

main90119-12378×2iUPK6#200711-201208

*12-1.75PX38-30

main90119-A0272×14iUSK6#200711-201708

*10-1.5PX35-29.3

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×5iUCK6#200711-200904

35122TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE)

main35122-34010iUCK6#200711-200904

main35122-34020iUSK6#200711-201708

35122BRING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION)

main90301-04014iUCK6#200711-200904

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-14011iUCK6#200711-200904

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-11006iUCK6#200711-200804

main90301-11030iUPK6#200711-201208

35145CGASKET, TRANSAXLE CASE

main35145-60020×3iUCK6#200711-200904

35159GASKET, BRAKE DRUM

main35159-0C010×3iUCK6#200711-200904

main35159-0C020iUSK6#201708-202012

NO.2

main35159-0C030×2iUSK6#201708-202012

NO.1

main35159-60020iUSK6#202101

NO.2

main35159-60030×2iUSK6#202101

NO.1

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-34010iUSK6#200711-200905

main35168-34020iUSK6#200905-201708

main35168-60010iUPK6#200711-201208

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×4iUCK6#200711-200904

9008011224

main90080-11224

9008011426

main90080-11426

90119A0140

main90119-A0140

9094901826

main90949-01826

91611G0612

main91611-G0612

9613251000

main96132-51000

26 parts on this diagram · 3 diagrams in section
