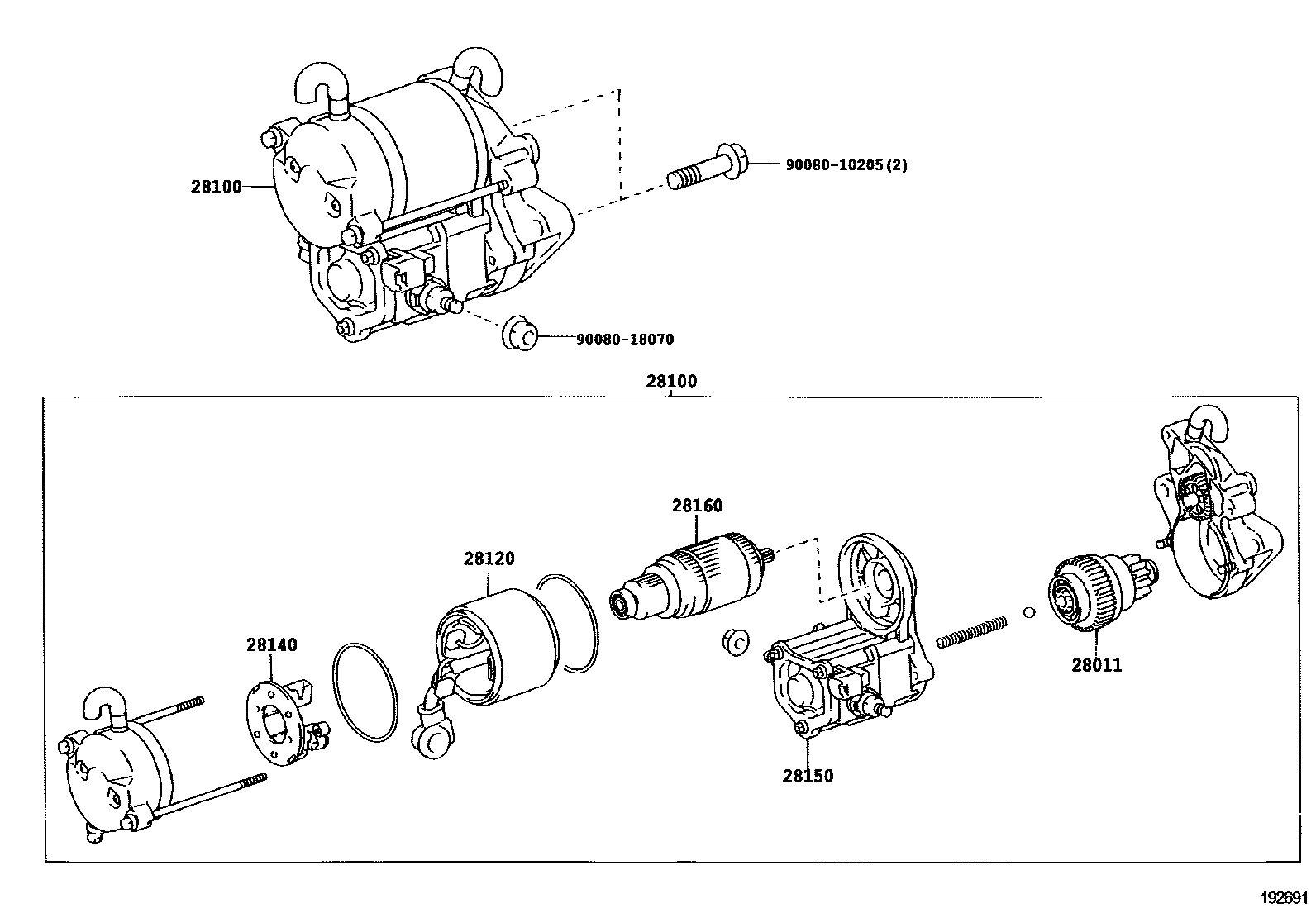

STARTER

0001 112V 2.0KW 0002 112V 2.0KW 0003 1 0004 112V 1.6KW 0005 112V 2.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-50100i2UZFE..UCK6#200711-200904

28100STARTER ASSY

main28100-0S010i3URFE..USK6#200711-200807

12V 2.0KW

main28100-0S011i3UR#..USK6#200808-201104

12V 2.0KW

main28100-0S031i1URFE..UPK6#200904-201208

12V 1.6KW

main28100-0S050i3UR#..USK6#201104-201709

12V 2.0KW

main28100-50101i2UZFE..UCK6#200711-200904

12V 2.0KW

28120YOKE ASSY, STARTER

main28120-0S030i1URFE..UPK6#200904-201208

main28120-38020i3UR#..USK6#200711-201104

main28120-38070i3URFE..USK6#201104-201709

main28120-50070i2UZFE..UCK6#200711-200904

28140HOLDER ASSY, STARTER BRUSH

main28140-37050i1URFE..UPK6#200904-201208

main28140-38070i3UR#..USK6#201104-201709

main28140-54380i2UZFE..UCK6#200711-200904

28150SWITCH ASSY, MAGNET STARTER

main28150-0S020i1URFE..UPK6#200904-201208

main28150-38010i3UR#..USK6#200711-200908

main28150-38040i3UR#..USK6#200908-201709

main28150-50110i2UZFE..UCK6#200711-200904

28160ARMATURE ASSY, STARTER

main28160-0S060i3UR#..USK6#201401-201709

(L)

main28160-37050i1URFE..UPK6#200904-201208

main28160-38020i3UR#..USK6#200711-201104

main28160-38070i3UR#..USK6#201401-201709

(J)

main28160-38070i3UR#..USK6#201104-201401

main28160-75120i2UZFE..UCK6#200711-200904

9008010205

main90080-10205

9008018070

main90080-18070

8 parts on this diagram · 5 diagrams in section
