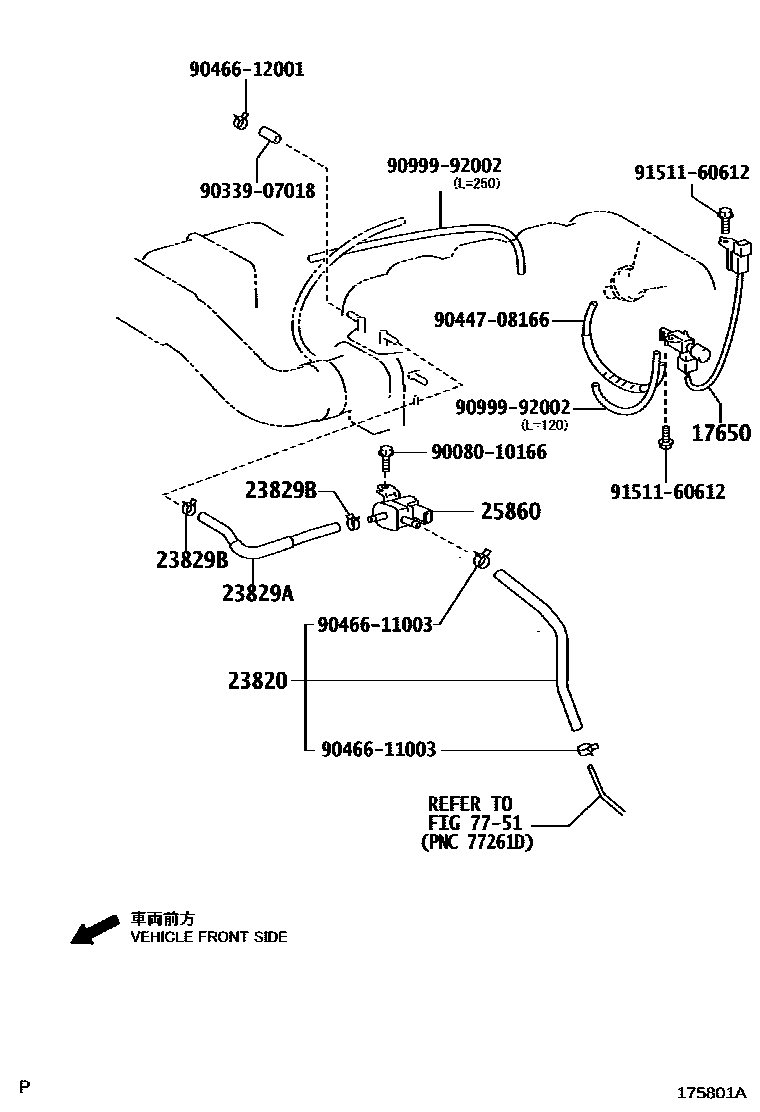

VACUUM PIPING

0001 1 0002 1 0003 1

17650VALVE ASSY, VACUUM SWITCHING

main25860-0S010i3URFBE..USK65200711-201709

main25860-50170i2UZFE..UCK6#200711-200904

23820HOSE ASSY, FUEL VAPOR FEED

main23820-0F030i2UZFE..UCK6#200711-200904

main23820-0S010i3UR#..USK6#200711-201109

main23820-0S020i1URFE..UPK6#200904-201208

main23820-0S030i3UR#..USK6#201109-201609

main23820-0S060i3UR#..USK6#201609-201708

23829AHOSE, FUEL VAPOR FEED

main23829-0S010i3URFE..USK6#201308-201709

(L)

main23829-38010i3UR#..USK6#201308-201709

(J)

main23829-38010i3UR#..USK6#200711-201308

main23829-38060i1URFE..UPK6#200904-201208

main23829-50161i2UZFE..UCK6#200711-200904

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main96132-51300i2UZFE..UCK6#200711-200904

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-0S020i3URFE..USK6#200812-201709

(L)

main25860-31060i3UR#..USK6#200711-200904

main25860-31060i3UR#..USK6#200812-201709

(J)

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9008010166

main90080-10166

9033907018

main90339-07018

9044708166

main90447-08166

9046611003

main90466-11003

9046612001

main90466-12001

9099992002

main90999-92002

9151160612

main91511-60612

13 parts on this diagram · 3 diagrams in section
