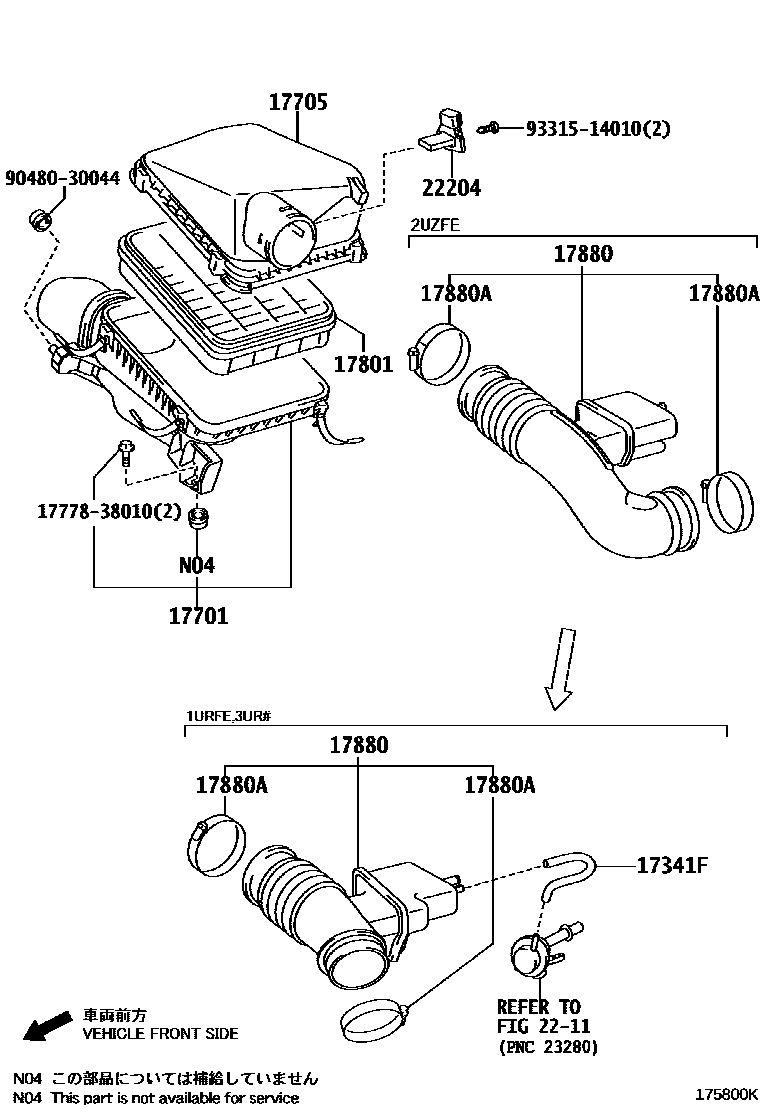

AIR CLEANER

0001 1W/O(CARBON FILTER) 0002 1W(CARBON FILTER)

17341FHOSE, AIR, NO.1

main17341-38060i3URFBE..USK65201708-201709

17701CASE SUB-ASSY, AIR CLEANER

main17701-0S010i1URFE..UPK6#200711-201208

main17701-0S030i3URFE..USK6#201708

17705CAP SUB-ASSY, AIR CLEANER

main17705-0S010i1URFE,3UR#..UPK6#,USK6#200711-200908

main17705-0S020i1URFE,3UR#..UPK6#,USK6#200908-201002

main17705-0S021i1URFE..UPK6#201003-201208

main17705-0S030i3UR#..USK6#201308-201708

main17735-0S010i3URFE..USK60; 3URFE..USK65201308-201708

MEXICO SPEC; SOUTH AMERICA SPEC

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0P100i3URFE..USK6#201708

main17801-0S010i2UZFE..UCK6#200711-200904

main17801-0S020i3UR#..USK6#201308-201504

17880HOSE ASSY, AIR CLEANER

main17880-0F020i2UZFE..UCK6#200711-200904

main17880-0S010i1URFE..UPK6#200711-201208

17880ACLAMP, HOSE

main90460-A0001×2i3URFBE..USK65201708-201709

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0F030i3URFBE..USK65201708-201709

1777838010BOLT, AIR CLEANER SET

main17778-38010

9048030044

main90480-30044

9331514010

main93315-14010

11 parts on this diagram · 2 diagrams in section
