Toyota 672370 — EXHAUST PIPE

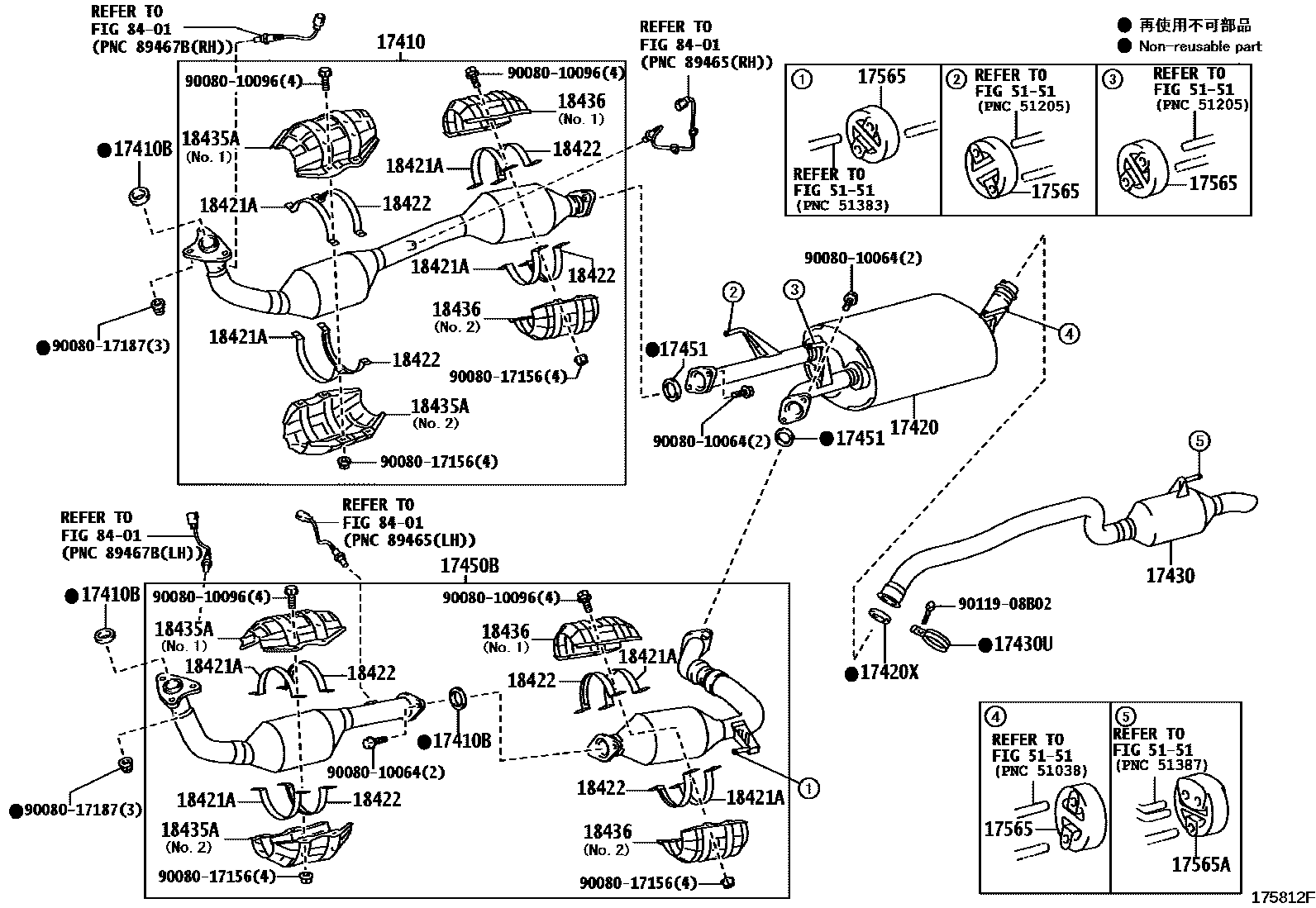

Parts diagram

17410PIPE ASSY, EXHAUST, FRONT

17410BGASKET, EXHAUST PIPE

17420PIPE ASSY, EXHAUST, CENTER

17420XGASKET, EXHAUST PIPE, CENTER

17430PIPE ASSY, EXHAUST, TAIL

17430UCLAMP NO.1, EXHAUST TAILPIPE (FOR REAR)

17450BPIPE ASSY, EXHAUST, FRONT NO.2

17451GASKET, EXHAUST PIPE

17565SUPPORT, EXHAUST PIPE, NO.5

17565ASUPPORT, EXHAUST PIPE, NO.4

18421ASTAY, CONVERTER PROTECTOR, LH

18422STAY, CONVERTER PROTECTOR, NO.2

18435APROTECTOR, MONOLITHIC CONVERTER

18436PROTECTOR, MONOLITHIC CONVERTER, NO.1

5151FRAME

→ Go to FIG 51-51

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008010064

9008010096

9008017156

9008017187

9011908B02

21 parts on this diagram · 2 diagrams in section

EXHAUST PIPE for Toyota 672370

This section contains 26 genuine Toyota parts for the EXHAUST PIPE system of the Toyota 672370. Key components include: PIPE ASSY, EXHAUST, FRONT, GASKET, EXHAUST PIPE, PIPE ASSY, EXHAUST, CENTER, GASKET, EXHAUST PIPE, CENTER, PIPE ASSY, EXHAUST, TAIL.
