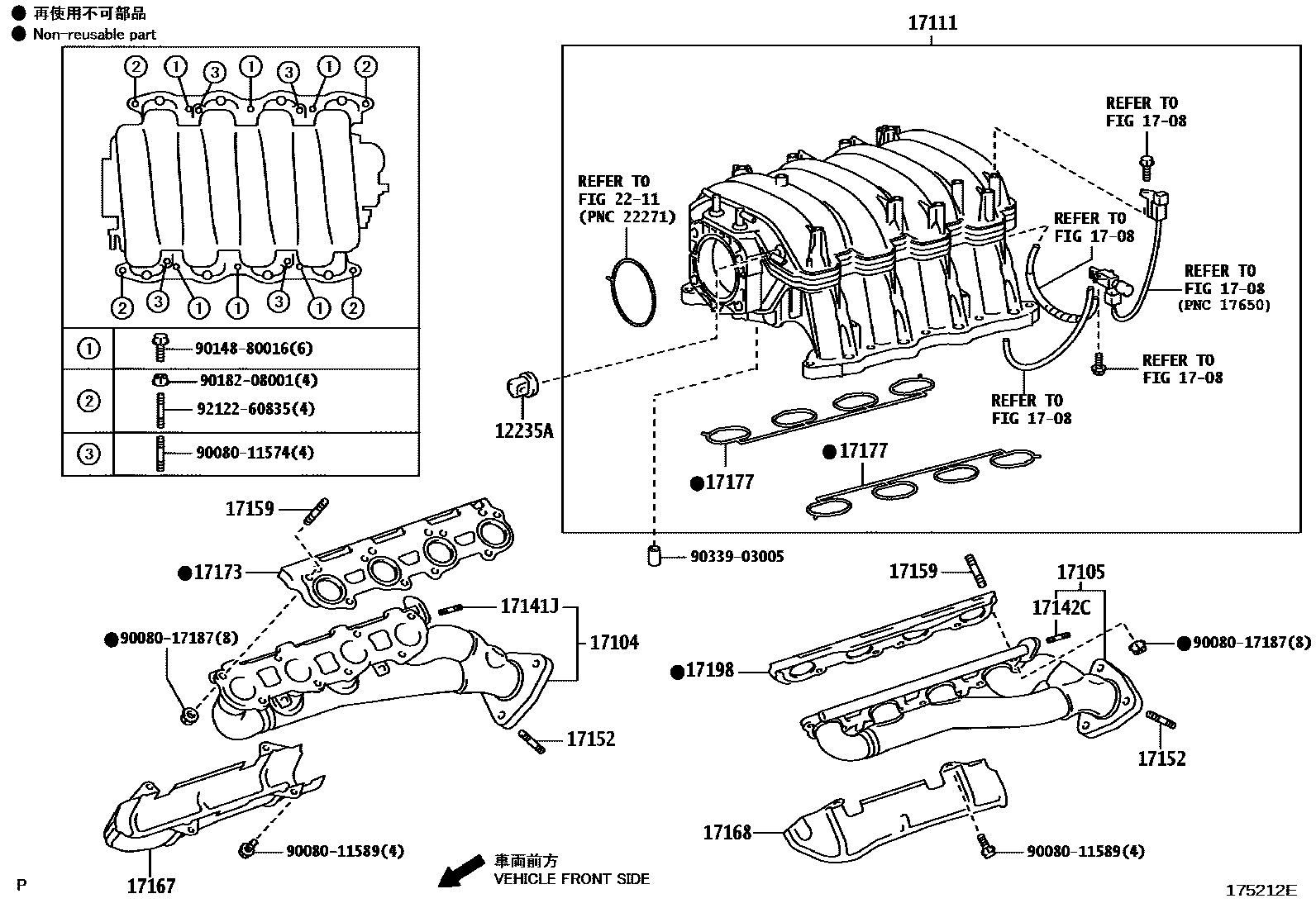

MANIFOLD
12235ACAP, VENTILATION
1708VACUUM PIPING
17104MANIFOLD SUB-ASSY, EXHAUST, RH
17105MANIFOLD SUB-ASSY, EXHAUST, LH
17111MANIFOLD, INTAKE
17141MANIFOLD, EXHAUST
17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)
(J)
(L)
17142CBOLT, STUD(FOR EXHAUST MANIFOLD, LH)
NO.1
(J)
(L)
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
(L)
(J)
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
(L)
(J)
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17198GASKET, EXHAUST MANIFOLD, NO.2
2211FUEL INJECTION SYSTEM
9008011574
main90080-11574
9008011589
main90080-11589
9008017187
main90080-17187
9014880016
main90148-80016
9018208001
main90182-08001
9033903005
main90339-03005
9212260835
main92122-60835
23 parts on this diagram · 3 diagrams in section
