WATER PUMP

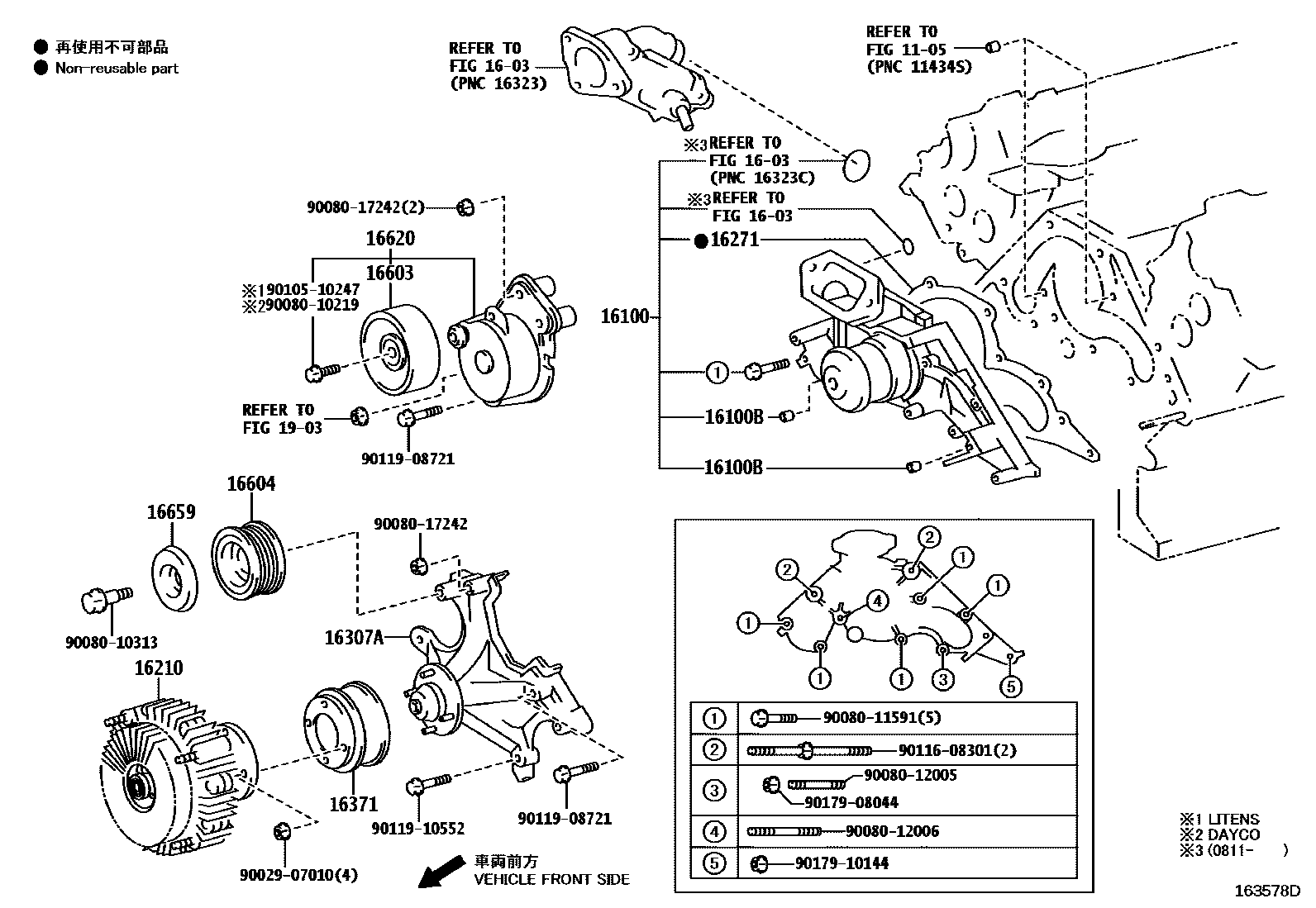

Parts diagram

1105CYLINDER BLOCK

→ Go to FIG 11-05

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-09200i200711-200811

main16100-09201i200811-200904

main16100-09490i200711-201004

(L)

main16100-09491i201004-201708

(L)

main16100-09525i200904-201208

(L)

main16100-39495i200711-201004

(J)

main16100-39496i201708

(J)

main16100-39555i200904-201208

(J)

16100BPIN, RING(FOR WATER PUMP SET)

main90253-11021×2i200711-200904

16210COUPLING ASSY, FLUID

main16210-38070i200711-201410

main16210-38071i201411-201708

main16210-50101i200711-200904

16271GASKET, WATER PUMP

main16271-0F010i200711-200904

main16271-0S010i200904-201208

(L)

main16271-38020i201708

main16271-38030i200904-201208

(J)

16307ABRACKET SUB-ASSY, FAN

main16307-0F010i200711-200904

16371PULLEY, FAN

main16371-0F010i200711-200904

main16371-38010i200711-201208

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-0W010i200711-200904

LITENS

main16603-0W030i200711-200904

DAYCO

main16603-38010i200711-201208

main16603-38011i201212-201708

main16603-38012i201902

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-0F010i200711-200904

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0S010i200711-201209

main16620-0S011i201209-201706

main16620-0S012i201707-201708

main16620-0W101i200711-200904

16659PLATE, IDLER PULLEY COVER, NO.2

main16659-50022i200711-200904

1903ALTERNATOR

→ Go to FIG 19-03

9002907010

main90029-07010

9008010219

main90080-10219

9008010313

main90080-10313

9008011591

main90080-11591

9008012005

main90080-12005

9008012006

main90080-12006

9008017242

main90080-17242

9010510247

main90105-10247

9011608301

main90116-08301

9011908721

main90119-08721

9011910552

main90119-10552

9017908044

main90179-08044

9017910144

main90179-10144

26 parts on this diagram · 3 diagrams in section
