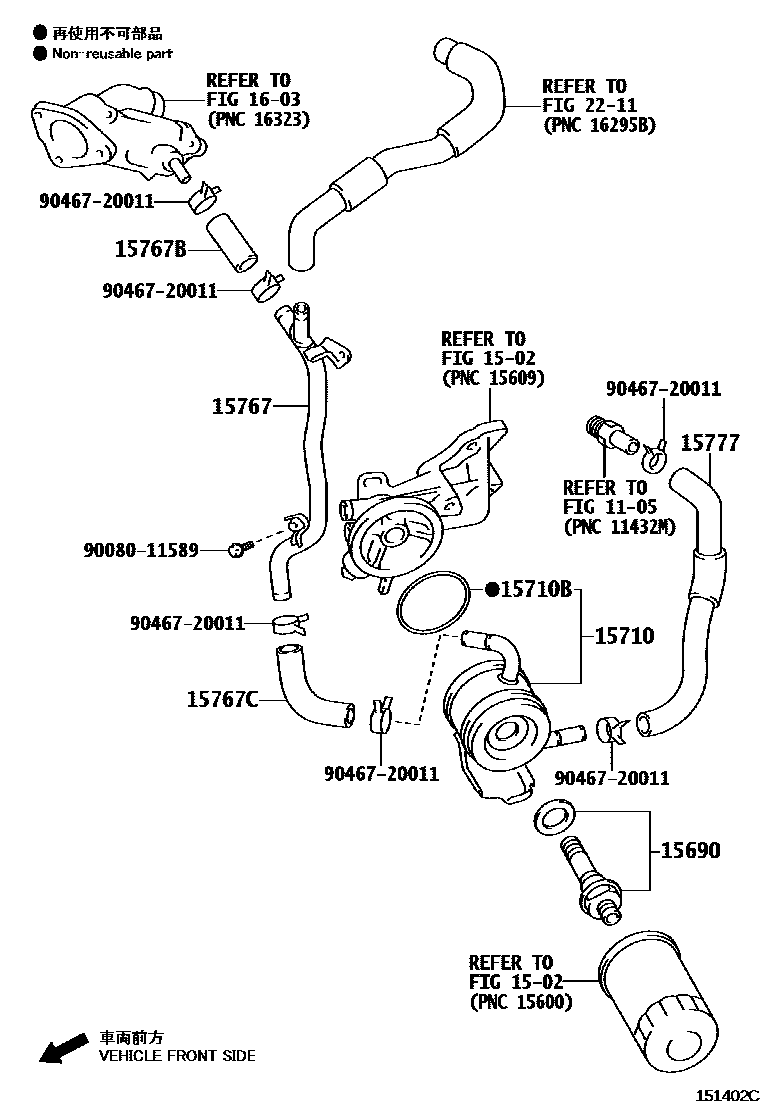

ENGINE OIL COOLER

0001 1 0002 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

1502OIL FILTER

→ Go to FIG 15-02

15690VALVE ASSY, OIL COOLER RELIEF

main15695-50010i2UZFE..UCK6#200711-200904

15710COOLER ASSY, OIL

main15710-0S010i3URFBE..USK65201308-201708

(L)

main15710-38021i3URFBE..USK65201308-201708

(J)

main15710-50090i2UZFE..UCK6#200711-200904

15710BRING, O(FOR OIL COOLER)

main90301-21017×2i1URFE..UPK6#201008-201208

(J)

main90301-67004i2UZFE..UCK6#200711-200904

main90301-A0030×2i3URFBE..USK65201708-201709

(L)

15767PIPE, OIL COOLER

main15767-0F011i2UZFE..UCK6#200711-200904

15767BHOSE, WATER BY-PASS, NO.4

main16281-0F010i2UZFE..UCK6#200711-200904

15767CHOSE, WATER BY-PASS, NO.5

main16282-0F010i2UZFE..UCK6#200711-200904

15777HOSE, OIL COOLER

main15777-50100i2UZFE..UCK6#200711-200904

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

9008011589

main90080-11589

9046720011

main90467-20011

13 parts on this diagram · 2 diagrams in section
