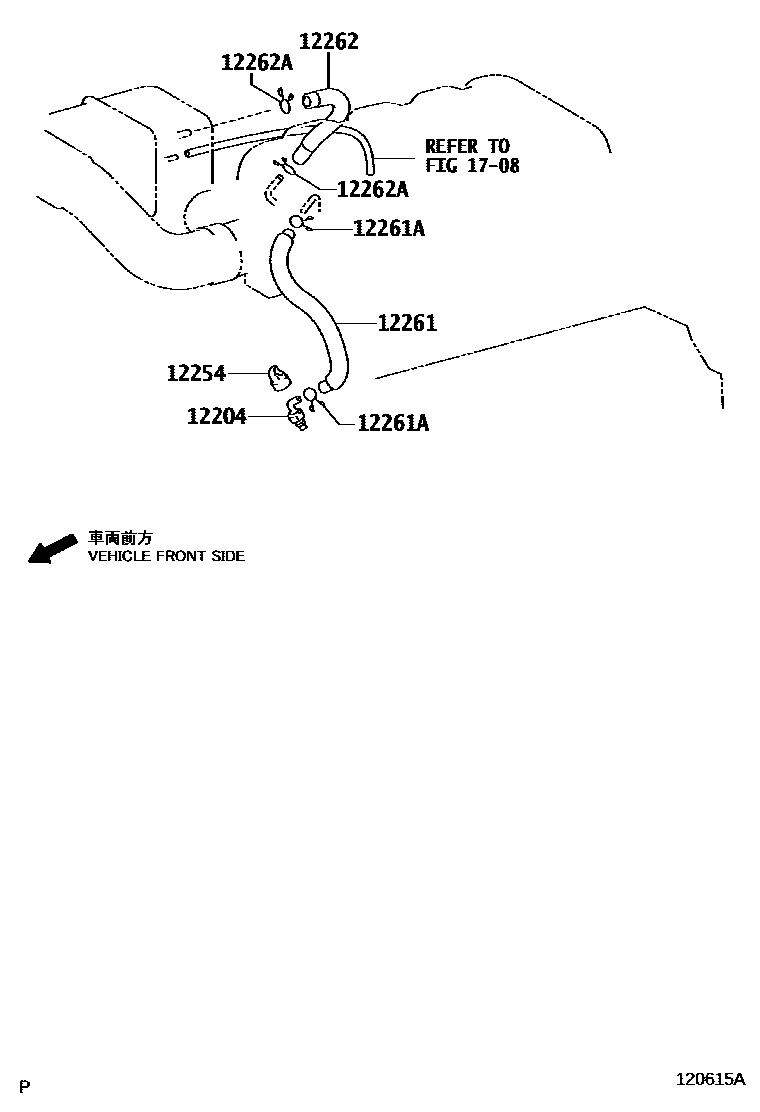

VENTILATION HOSE
12204VALVE SUB-ASSY, VENTILATION
MARK 38010
MARK 12204-38030
12254COVER, VENTILATION VALVE
12261HOSE, VENTILATION
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
NO.1 & NO.2
NO.2
NO.1
12262HOSE, VENTILATION, NO.2
12262ACLIP(FOR VENTILATION HOSE NO.2)
1708VACUUM PIPING
7 parts on this diagram · 5 diagrams in section
