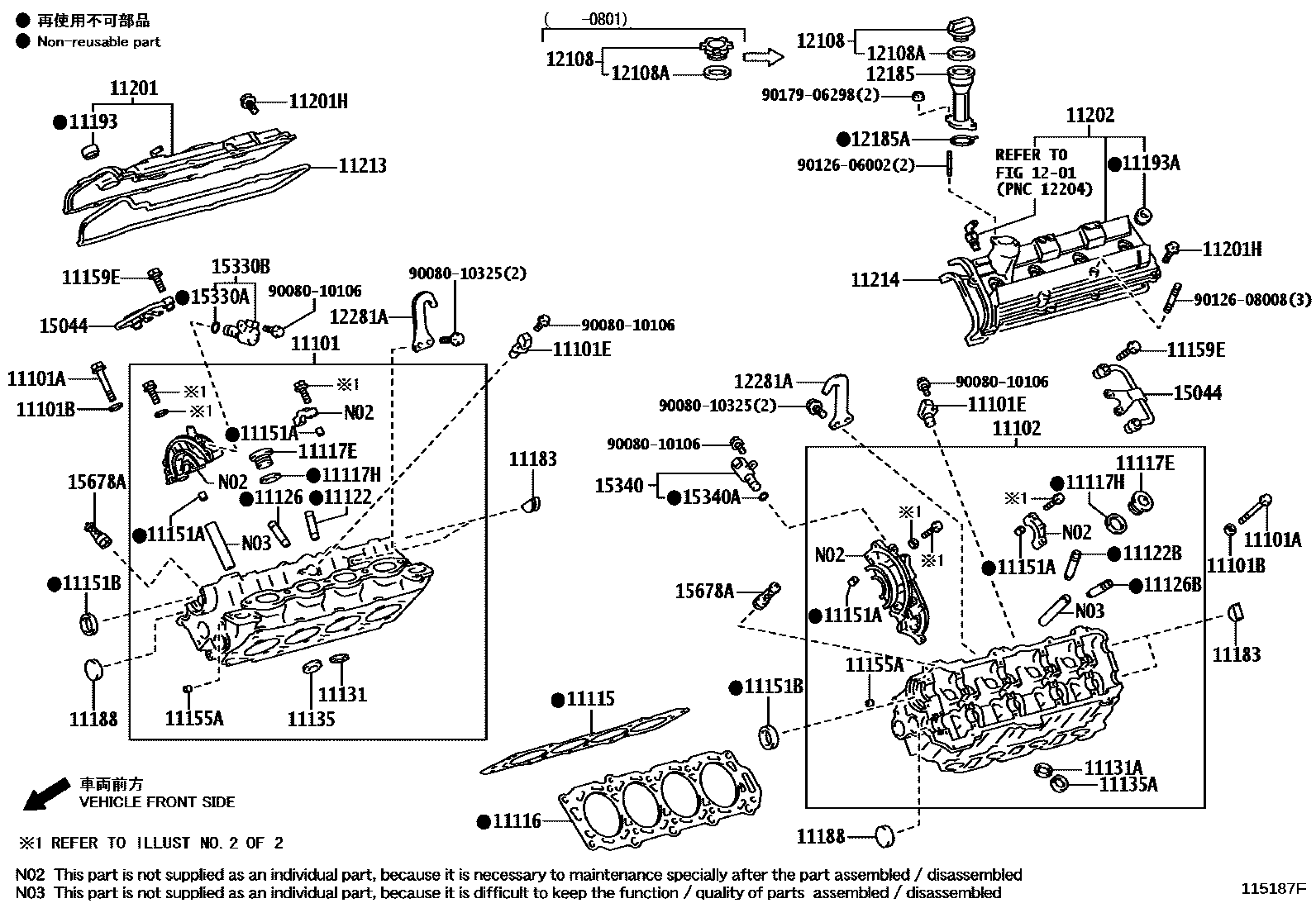

CYLINDER HEAD
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101ESENSOR, CAM POSITION
11116GASKET, CYLINDER HEAD, NO.2
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117HGASKET(FOR WATER HOLE)
11122BUSH, INTAKE VALVE GUIDE
O/S 0.05
O/S 0.05
11122BBUSH, INTAKE VALVE GUIDE, NO.2
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11126BBUSH, EXHAUST VALVE GUIDE, NO.2
STD
O/S 0.05
11131SEAT, INTAKE VALVE
STD
STD,(L)
STD
STD,(J)
O/S 0.03
O/S 0.03,(L)
O/S 0.03,(J)
O/S 0.03
11131ASEAT, INTAKE VALVE, NO.2
STD
STD,(L)
STD
STD,(J)
O/S 0.03
O/S 0.03
O/S 0.03,(L)
O/S 0.03,(J)
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
STD,(L)
STD
STD,(J)
STD,(J)
O/S 0.03
O/S 0.03,(L)
O/S 0.03
O/S 0.03,(J)
O/S 0.03,(J)
11135ASEAT, EXHAUST VALVE, NO.2
STD
STD,(L)
STD
STD,(J)
STD,(J)
O/S 0.03
O/S 0.03,(L)
O/S 0.03
O/S 0.03,(J)
O/S 0.03,(J)
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=7,OD=10
L=8,OD=11
11151BSEAL, OIL(FOR CAMSHAFT SETTING)
11159EBOLT(FOR CAMSHAFT OIL FEED PIPE)
11183PLUG, SEMICIRCULAR
11188PLUG, CAMSHAFT HOUSING
11201COVER SUB-ASSY, CYLINDER HEAD
(L)
(J)
11201HBOLT(FOR CYLINDER HEAD COVER)
NO.2,(L)
NO.1,(L)
NO.2,(J)
NO.2
NO.1,(J)
NO.1
11202COVER SUB-ASSY, CYLINDER HEAD, LH
(L)
(J)
11213GASKET, CYLINDER HEAD COVER
(L)
(J)
11214GASKET, CYLINDER HEAD COVER, NO.2
(L)
(J)
1201
12185HOUSING, OIL FILLER CAP
12185AGASKET, OIL FILLER CAP HOUSING
15044PIPE SUB-ASSY, CAMSHAFT OIL FEED
15330BVALVE ASSY, CAM TIMING OIL CONTROL, RH
(L)
(J)
15340VALVE ASSY, CAM TIMING OIL CONTROL, LH
(L)
(J)
15678AFILTER, OIL CONTROL VALVE
9008010106
main90080-10106
9008010325
main90080-10325
9012606002
main90126-06002
9012608008
main90126-08008
9017906298
main90179-06298
