HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

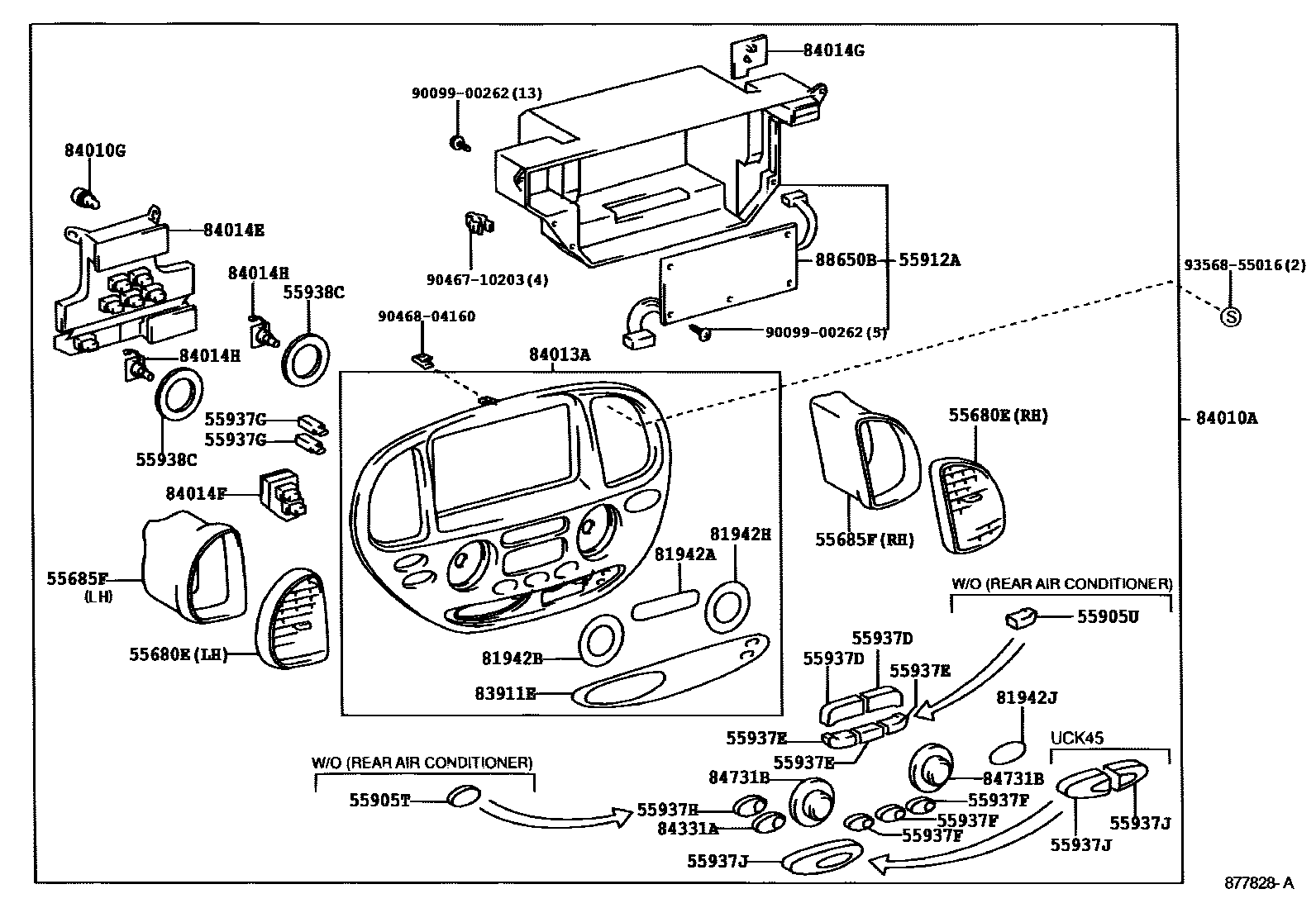

55680EREGISTER ASSY, INSTRUMENT PANEL, NO.4
RH
RH
LH
LH
55685FRETAINER, REGISTER BLADE, NO.4
RH
RH
LH
LH
55905TCOVER, SWITCH HOLE, NO.1
55905UCOVER, SWITCH HOLE, NO.2
55912AHOUSING, HEATER CONTROL
55937DKNOB, CENTER CLUSTER MODULE, NO.1
AUTO
AUTO
LUXUARY PACKAGE,AUTO
MODE
MODE
LUXUARY PACKAGE,MODE
55937EKNOB, CENTER CLUSTER MODULE, NO.2
A/C
A/C
FRT+RR
FRT+RR
LUXUARY PACKAGE,FRT+RR
LUXUARY PACKAGE,A/C
OFF
OFF
LUXUARY PACKAGE,OFF
55937FKNOB, CENTER CLUSTER MODULE, NO.3
FRONT DEF
FRONT DEF
RECIRC
RECIRC
REAR DEF
REAR DEF
LUXUARY PACKAGE,FRONT DEF
LUXUARY PACKAGE,RECIRC
LUXUARY PACKAGE,REAR DEF
55937GKNOB, CENTER CLUSTER MODULE, NO.4
55937HKNOB, CENTER CLUSTER MODULE, NO.5
55937JKNOB, CENTER CLUSTER MODULE, NO.6
4WD
CENTER DIFF-LOCK
VSC OFF
TRAC OFF
2WD/4HI
4LO
CENTER DIFF-LOCK
55938CLENS, CENTER CLUSTER MODULE
81942ASHEET, HEATER CONTROL NAME, NO.1
81942BSHEET, HEATER CONTROL NAME, NO.2
81942HSHEET, HEATER CONTROL NAME, NO.3
81942JSHEET, HEATER CONTROL NAME, NO.4
83911EORNAMENT, CLOCK
W(TRAC OFF SWITCH)
W(TRAC OFF SWITCH)
84010ACONTROL & PANEL ASSY, INTEGRATION
W(TRAC OFF SWITCH)
W(TRAC OFF SWITCH)
W(TRAC OFF SWITCH & REAR AIR CONDITIONER SWITCH)
W(TRAC OFF SWITCH & REAR AIR CONDITIONER SWITCH)
W(TRAC OFF SWITCH)
GRAY ME,TRIM1#
BROWN ME,TRIM4#
GRAY ME,TRIM1#
BROWN ME,TRIM4#
W(4WD SWITCH & VSC OFF SWITCH)
W(4WD SWITCH & VSC OFF SWITCH)
W(4WD SWITCH & VSC OFF SWITCH & REAR AIR CONDITIONER SWITCH)
W(4WD SWITCH & VSC OFF SWITCH & REAR AIR CONDITIONER SWITCH)
W(4WD SWITCH & VSC OFF SWITCH)
GRAY ME,TRIM1#
BROWN ME,TRIM4#
GRAY ME,TRIM1#
BROWN ME,TRIM4#
DUAL AIR CONDITIONER
DUAL AIR CONDITIONER
LUXURY PACKAGE
LUXURY PACKAGE
DUAL AIR CONDITIONER
DUAL AIR CONDITIONER
LUXURY PACKAGE
LUXURY PACKAGE
84010GBULB, INTEGRATION CONTROL & PANEL
14V 1.4W
14V 2.0W
14V 0.84W
84013APANEL SUB-ASSY, INTEGRATION
W(TRAC OFF SWITCH)
W(4WD SWITCH)
W(TRAC OFF SWITCH),GRAY ME,TRIM1#
W(TRAC OFF SWITCH),BROWN ME,TRIM4#
GRAY ME,TRIM1#
BROWN ME,TRIM4#
W(4WD SWITCH),GRAY ME,TRIM1#
W(4WD SWITCH),BROWN ME,TRIM4#
GRAY ME,TRIM1#
BROWN ME,TRIM4#
LUXUARY PACKAGE
LUXUARY PACKAGE
84014EBOARD SUB-ASSY, PRINTED WIRE INTEGRATION
W(TRAC OFF SWITCH)
W(TRAC OFF SWITCH)
LUXUARY PACKAGE
LUXUARY PACKAGE
84014FBOARD SUB-ASSY, PRINTED WIRE INTEGRATION, NO.2
HAZARD
W(REAR AIR CONDITIONER),HAZARD
84014GBOARD SUB-ASSY, PRINTED WIRE INTEGRATION, NO.3
W(DUAL AIR CONDETIONER)
84014HBOARD SUB-ASSY, PRINTED WIRE INTEGRATION, NO.4
84331AKNOB, HAZARD WARNING SIGNAL SWITCH
84731BBEZEL, SWITCH
LUXUARY PACKAGE
88650BAMPLIFIER ASSY, AIRCONDITIONER
9009900262
main90099-00262
9046710203
main90467-10203
9046804160
main90468-04160
9356855016
main93568-55016
31 parts on this diagram · 6 diagrams in section
