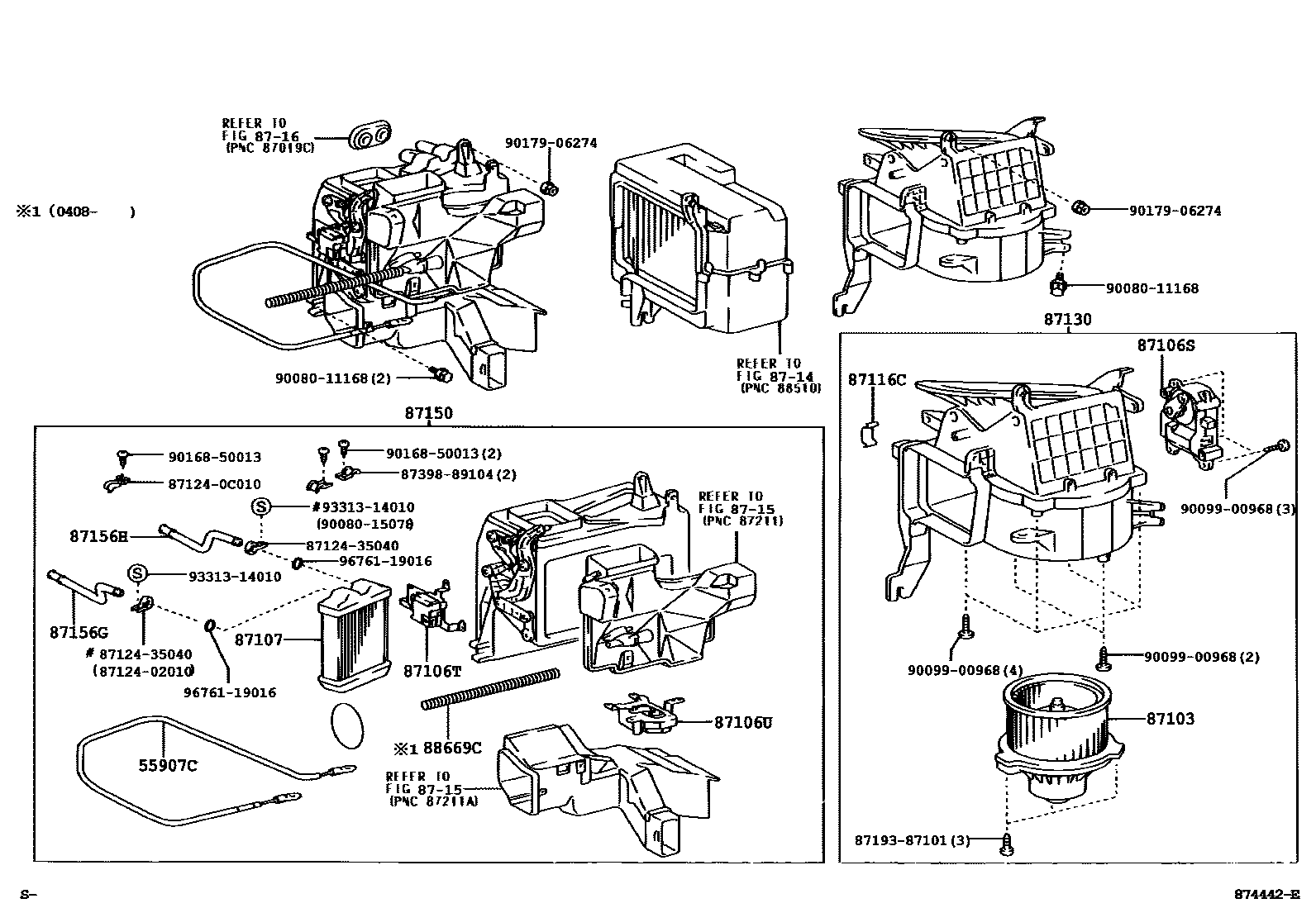

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

55907CCABLE SUB-ASSY, WATER VALVE CONTROL

main87286-0C010iUCK35,45200009-200408

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-0C020iUCK35,45200009-200408

main87103-0C022iUCK35,45200506

87106SSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

main87106-0C020iUCK35,45200009-200408

87106TSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-0C030iUCK35,45200009-200408

87106USERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-0C040iUCK35,45200009-200408

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-0C020iUCK35,45200009-200408

87116CSPRING, HOLDING (FOR HEATER BLOWER)

main87116-04020iUCK35,45200208-200408

87130BLOWER ASSY, HEATER, FRONT

main87130-0C020iUCK35,45200009-200408

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87150RADIATOR ASSY, HEATER

main87150-0C020iUCK35,45200009-200408

main87150-0C021iUCK35,45200408

87156GPIPE, HEATER WATER, NO.1

main87156-0C030iUCK35,45200009-200408

87156HPIPE, HEATER WATER, NO.2

main87156-0C040iUCK35,45200009-200408

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

88669CHOSE, AIR

main88669-0C020iUCK35,45200408

8712402010CLAMP, HEATER

main87124-02010

871240C010CLAMP, HEATER

main87124-0C010

8712435040CLAMP, HEATER

main87124-35040

8719387101

main87193-87101

8739889104BAND ASSY (FOR COMBUSTION HEATER)

main87398-89104

9008011168

main90080-11168

9008015078

main90080-15078

9009900968

main90099-00968

9016850013

main90168-50013

9017906274

main90179-06274

9331314010

main93313-14010

9676119016

main96761-19016

27 parts on this diagram · 1 diagram in section
