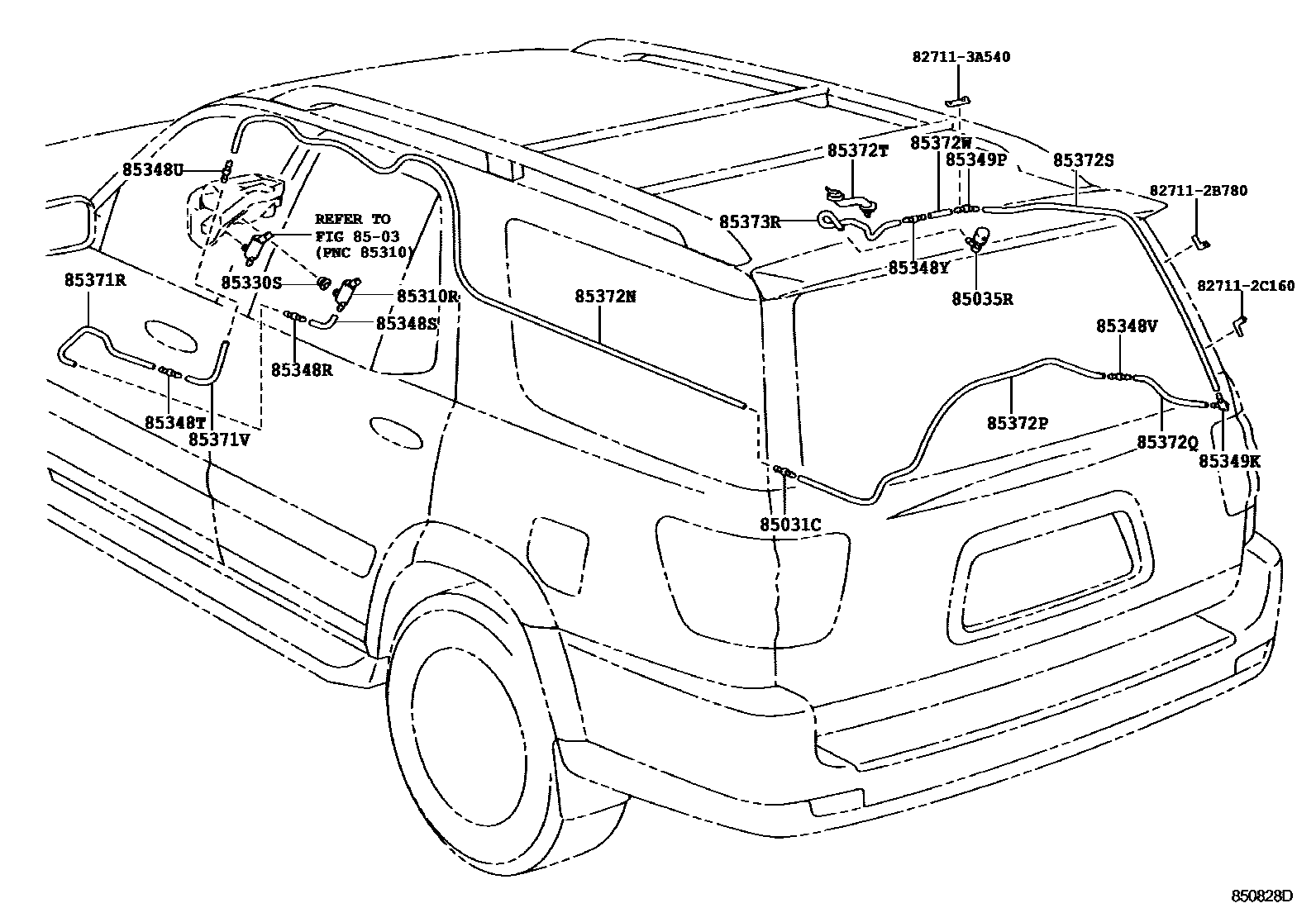

REAR WASHER
8503
85031CVALVE SUB-ASSY, WASHER
85035RNOZZLE SUB-ASSY, REAR WASHER
85330SBUSH, REAR WASHER JAR
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85348YJOINT, REAR WASHER HOSE, NO.5
85349KJOINT, REAR WASHER ELBOW, NO.2
sub85376-10250
85349PJOINT, REAR WASHER ELBOW, NO.3
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=200
L=1450(*H,L=250)
L=1450(*H,L=200)
85371VHOSE, REAR WASHER (FROM JOINT TO JOINT)
L=40
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=3110
L=3150
L=3150
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=1770
L=1770
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=380
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=615
L=600
L=1450(*H,L=600)
85372TGROMMET, WASHER
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
L=70
L=90
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=300
827112B780WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2B780
827112C160WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2C160
827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3A540
25 parts on this diagram · 2 diagrams in section
