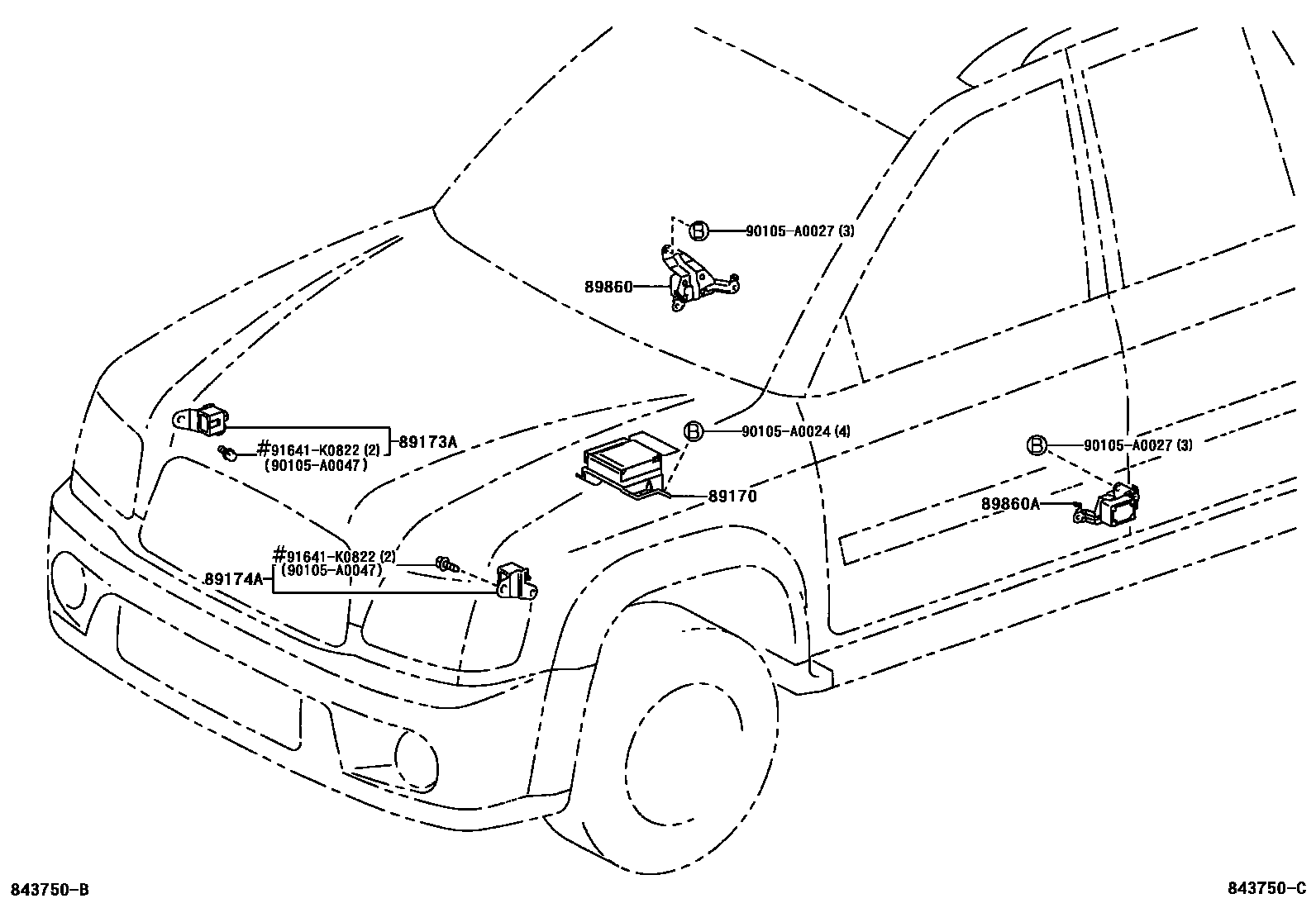

AIR BAG

0001 1 0002 1

89170SENSOR ASSY, AIRBAG

main89170-0C030iUCK35,45200009-200408

main89170-0C040iUCK35,45..4HC200009-200209

*80,DRIVER SIDE & PASSENGER SIDE & SIDE

main89170-0C070iUCK35,45200209-200408

*80,DRIVER SIDE & PASSENGER SIDE & SIDE

main89170-0C130iUCK35,45200408-200608

main89170-0C140iUCK35,45200408-200605

*80,DRIVER SIDE & PASSENGER SIDE & SIDE

main89170-0C141iUCK35,45200606-200608

*80,DRIVER SIDE & PASSENGER SIDE & SIDE

89173ASENSOR, AIRBAG, FRONT RH

main89173-09200iUCK35,45200408

main89173-39295iUCK35,45200009-200408

89174ASENSOR, AIRBAG, FRONT LH

main89174-09040iUCK35,45200408

main89174-39165iUCK35,45200009-200408

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-0C010iUCK35,45..4HC200009-200209

main89860-0C020iUCK35,45200209-200408

main89860-0C040iUCK35,45200408

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89830-0C010iUCK35,45..4HC200009-200209

main89830-0C020iUCK35,45200209-200408

main89830-0C040iUCK35,45200408

90105A0024

main90105-A0024

90105A0027

main90105-A0027

90105A0047

main90105-A0047

91641K0822

main91641-K0822

9 parts on this diagram · 2 diagrams in section
