WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1COWL 0004 1COWL 0005 1DOOR 0006 1FLOOR & ROOF 0007 1SEAT 0008 1CABLE BOND 0009 1CLAMP & BRACKET 0010 1CONNECTOR

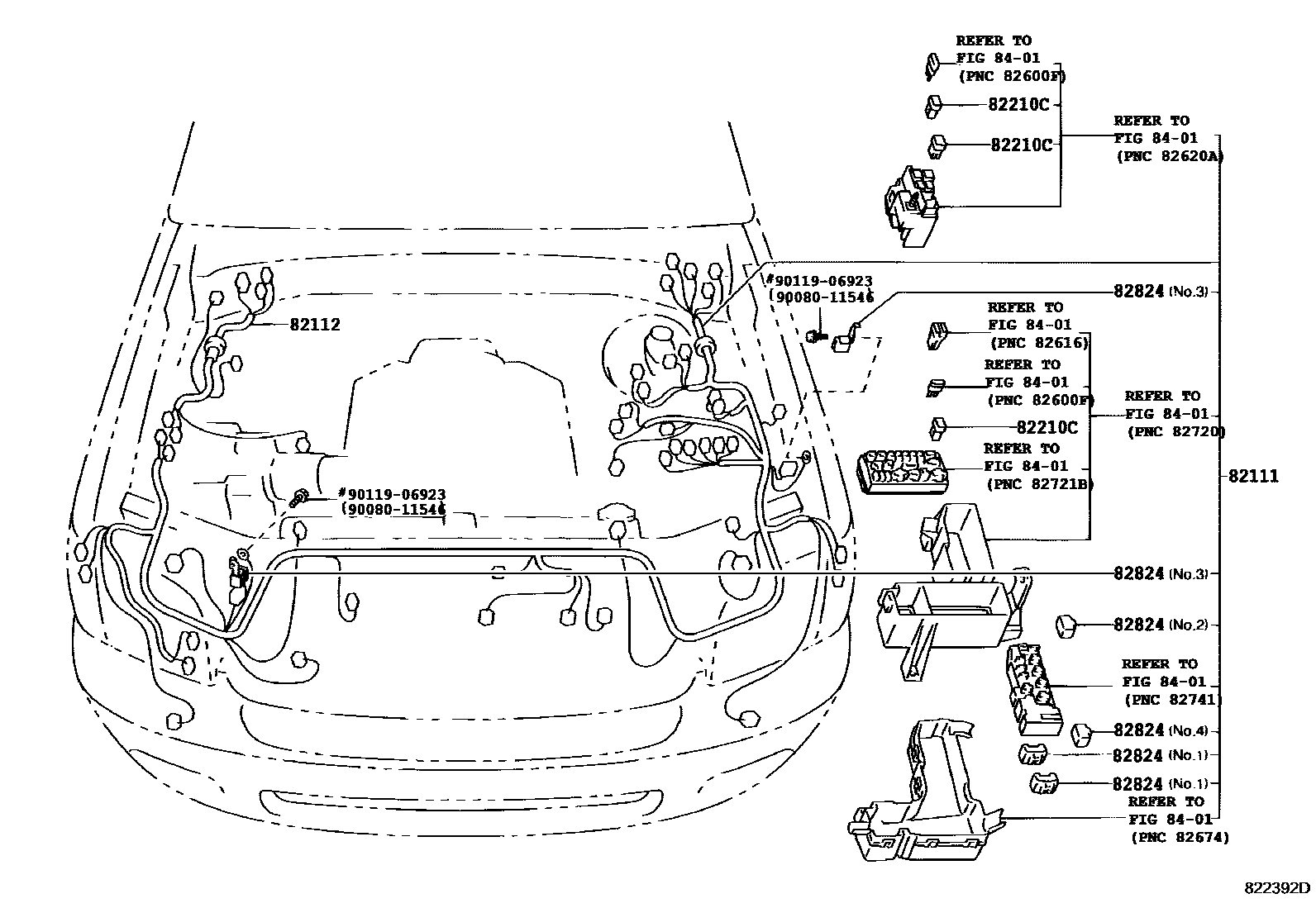

82111WIRE, ENGINE ROOM MAIN

main82111-0C120iUCK35,45..4HC200009-200105

sub82111-0C121

main82111-0C121iUCK35,45..4HC200105-200111

sub82111-YY010

main82111-0C122iUCK35,45200209-200408

main82111-0C123iUCK35,45200408-200409

main82111-0C124iUCK35,45200409-200508

main82111-0C125iUCK35,45200508-200510

main82111-0C126iUCK35,45200510

main82111-0C130iUCK35,45..4HC200009-200111

W(DAY TIME RUNNING LIGHT SYSTEM)

sub82111-YY020

main82111-0C131iUCK35,45200209-200408

W(DAY TIME RUNNING LIGHT SYSTEM)

main82111-0C132iUCK35,45200408-200409

W(DAY TIME RUNNING LIGHT SYSTEM)

main82111-0C133iUCK35,45200409-200508

W(DAY TIME RUNNING LIGHT SYSTEM)

main82111-0C134iUCK35,45200508-200510

W(DAY TIME RUNNING LIGHT SYSTEM)

main82111-0C135iUCK35,45200510

W(DAY TIME RUNNING LIGHT SYSTEM)

main82111-YY010iUCK35,45..4HC200111-200209

main82111-YY020iUCK35,45..4HC200111-200209

W(DAY TIME RUNNING LIGHT SYSTEM)

82112WIRE, ENGINE ROOM, NO.2

main82112-0C020iUCK35,45..4HC200009-200209

82210CFUSIBLE LINK

main90982-08202iUCK35,45200009-200408

60A,TERM.:MALE,YEL

main90982-08254iUCK35,45200009-200408

120A,TERM.:MALE,WHT

main90982-08283iUCK35,45200009-200408

30A,TERM.:FEMALE,PNK

main90982-08284iUCK35,45200009-200408

40A,TERM.:FEMALE,GRN

main90982-08286iUCK35,45200209-200408

140A,TERM.:MALE,RBR

82824CONNECTOR, WIRING HARNESS

main82824-20110iUCK35,45200009-200408

NO.1

main82824-22070iUCK35,45200408

NO.4

main82824-22080iUCK35,45200009-200408

NO.2

main82824-48020iUCK35,45200009-200408

NO.3

main82824-50110iUCK35,45200209-200408

NO.4

8401

9008011546

main90080-11546

9011906923

main90119-06923

7 parts on this diagram · 10 diagrams in section
