FOG LAMP

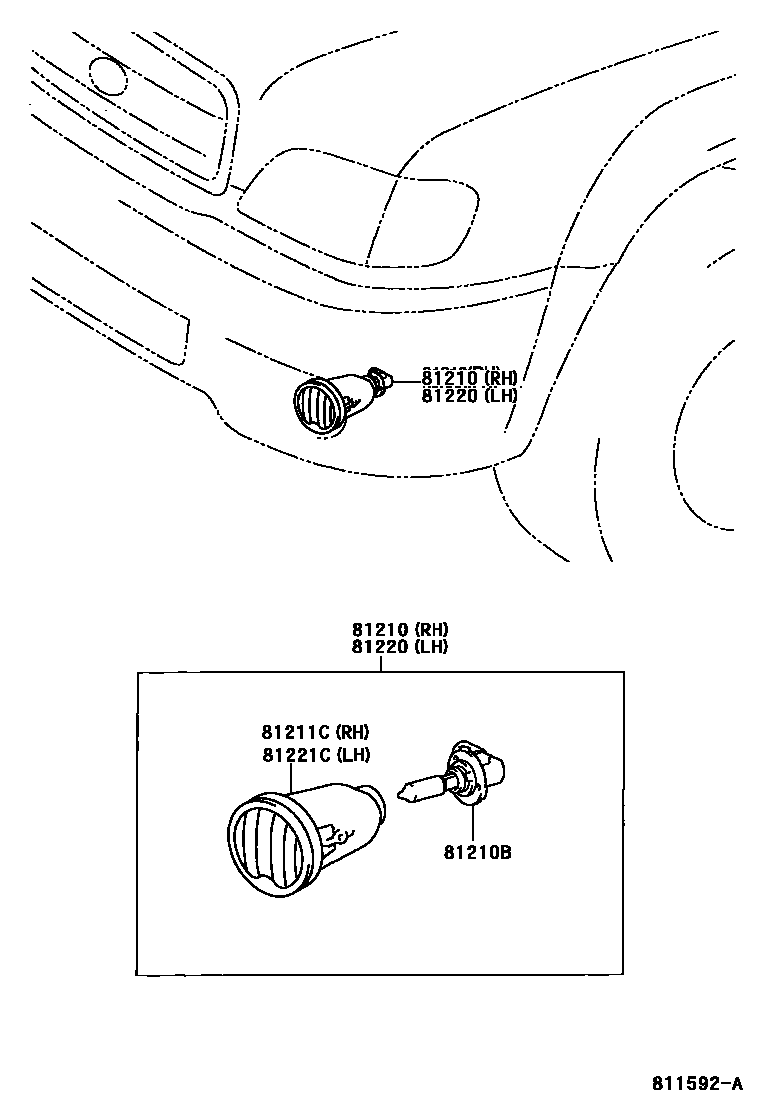

Parts diagram

81210LAMP ASSY, FOG

main81210-0C020i200009-200310

main81210-0C021i200310-200408

81210BBULB, FOG LAMP

main90080-81040×2i200009-200108

12V 51W

main90981-13047×2i200408

12V 51W,HALOGEN

81211CLAMP UNIT, FOG LAMP, RH

main81211-0C020i200009-200310

main81211-0C021i200408

81220LAMP ASSY, FOG, LH

main81220-0C020i200009-200310

main81220-0C021i200310-200408

81221CLAMP UNIT, FOG LAMP, LH

main81221-0C020i200009-200310

main81221-0C021i200310-200408

5 parts on this diagram · 1 diagram in section
