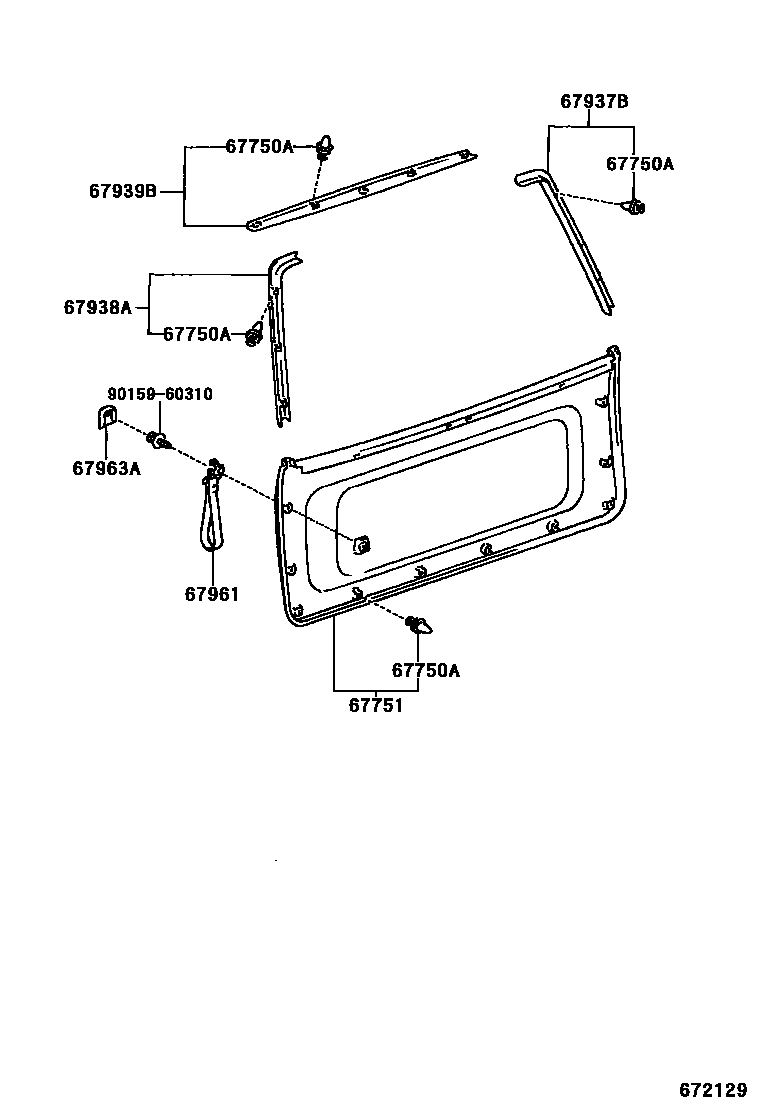

BACK DOOR PANEL & GLASS

0001 1 0002 1

67750ACLIP(FOR BACK DOOR TRIM)

main90467-09206×21iUCK35,45200009-200408

67751BOARD, BACK DOOR TRIM

main67750-0C010-B0iUCK35,45200009-200408

MD.CHARCOAL,TRIM1#

main67750-0C010-E0iUCK35,45200009-200408

MD.OAK,TRIM4#

main67750-0C010-E1iUCK35,45200408

FAWN,TRIM42,43

67937BGARNISH, BACK DOOR SIDE, RH

main67937-0C010-B0iUCK35,45200009-200408

MD.CHARCOAL,TRIM1#

main67937-0C010-E0iUCK35,45200009-200408

MD.OAK,TRIM4#

main67937-0C010-E1iUCK35,45200408

FAWN,TRIM42,43

67938AGARNISH, BACK DOOR SIDE, LH

main67938-0C010-B0iUCK35,45200009-200408

MD.CHARCOAL,TRIM1#

main67938-0C010-E0iUCK35,45200009-200408

MD.OAK,TRIM4#

main67938-0C010-E1iUCK35,45200408

FAWN,TRIM42,43

67939BGARNISH, BACK DOOR, CENTER

main67939-0C010-B0iUCK35,45200009-200408

MD.CHARCOAL,TRIM1#

main67939-0C010-E0iUCK35,45200009-200408

MD.OAK,TRIM4#

main67939-0C010-E1iUCK35,45200408

FAWN,TRIM42,43

67961STRAP, BACK DOOR PULL

main67908-08010-B2iUCK35,45200009-200206

MD.CHARCOAL,TRIM1#

main67908-08010-E0iUCK35,45200009-200206

MD.OAK,TRIM4#

main67908-08011-B1iUCK35,45200408

CHARCOAL,TRIM1#

main67908-08011-E1iUCK35,45200206-200408

OAK,TRIM4#

main67908-08011-E3iUCK35,45200408

FAWN,TRIM42,43

67963ACOVER, BACK DOOR STRAP

main67963-08010-B1iUCK35,45200408

MD.CHARCOAL,TRIM1#

main67963-08010-E0iUCK35,45200009-200408

MD.OAK,TRIM4#

main67963-08010-E1iUCK35,45200408

FAWN,TRIM42,43

9015960310

main90159-60310

8 parts on this diagram · 2 diagrams in section
