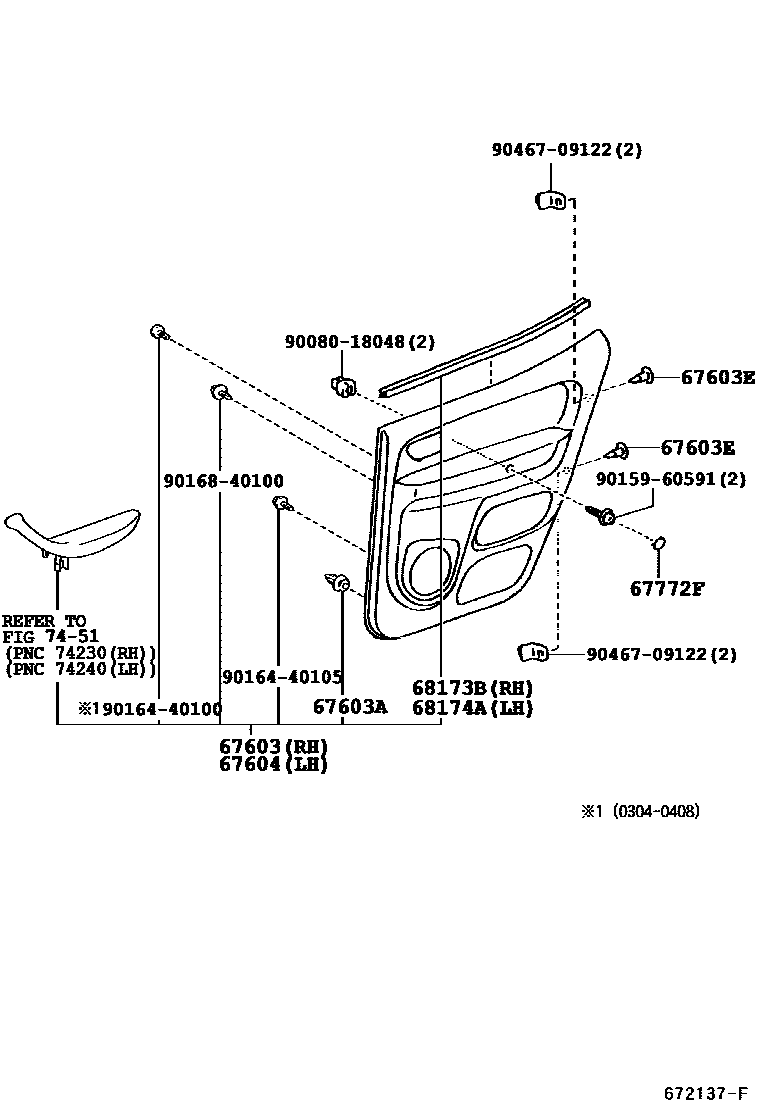

REAR DOOR PANEL & GLASS

0001 1 0002 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-0C010-B0iUCK35,45..SR5200009-200405

CHARCOAL,TRIM1#

main67630-0C010-E0iUCK35,45..SR5200009-200405

OAK,TRIM4#

main67630-0C020-B1iUCK35,45..SR5200009-200408

W(AM/FM CASSETTE CD 10SPEAKER JBL),CHARCOAL,TRIM1#

main67630-0C020-E1iUCK35,45..SR5200009-200408

W(AM/FM CASSETTE CD 10SPEAKER JBL),OAK,TRIM4#

main67630-0C040-B0iUCK35,45..LIMD200009-200408

CHARCOAL,TRIM1#

main67630-0C040-E0iUCK35,45..LIMD200009-200408

OAK,TRIM4#

main67630-0C041-B1iUCK35,45..LIMD200408

CHARCOAL,TRIM1#

main67630-0C041-E1iUCK35,45..LIMD200408

FAWN,TRIM4#

main67630-0C091-B1iUCK35,45..SR5200408-200603

CHARCOAL,TRIM1#

main67630-0C091-E1iUCK35,45..SR5200408-200603

FAWN,TRIM4#

main67630-0C101-B1iUCK35,45..SR5200408-200603

W(JBL SPEAKER),CHARCOAL,TRIM1#

main67630-0C101-E1iUCK35,45..SR5200408-200603

W(JBL SPEAKER),FAWN,TRIM4#

main67630-0C220-B0iUCK35,45..SR5200603

CHARCOAL,TRIM1#

main67630-0C220-E0iUCK35,45..SR5200603

FAWN,TRIM4#

main67630-0C230-B0iUCK35,45..SR5200603

W(JBL SPEAKER),CHARCOAL,TRIM1#

main67630-0C230-E0iUCK35,45..SR5200603

W(JBL SPEAKER),FAWN,TRIM4#

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main90467-09203×16iUCK35,45..LIMD; UCK35,45..SR5200408

67603ECLIP(FOR REAR DOOR TRIM BOARD)

main90467-07066-B8×4iUCK35,45200009-200204

MD.CHARCOAL,TRIM11

main90467-07066-E0×4iUCK35,45200009-200204

OAK,TRIM41

main90467-07066-E8×2iUCK35,45200408

FAWN,TRIM42,43,LOWER

main90467-07066-E9×2iUCK35,45200408

SANDAL WOOD,TRIM42,43,LOWER

main90467-07066-P1×2iUCK35,45200408

DK.CHARCOAL,TRIM11,LOWER

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-0C010-B0iUCK35,45..SR5200009-200408

CHARCOAL,TRIM1#

main67640-0C010-E0iUCK35,45..SR5200009-200408

OAK,TRIM4#

main67640-0C020-B1iUCK35,45..SR5200009-200408

W(AM/FM CASSETTE CD 10SPEAKER JBL),CHARCOAL,TRIM1#

main67640-0C020-E1iUCK35,45..SR5200009-200408

W(AM/FM CASSETTE CD 10SPEAKER JBL),OAK,TRIM4#

main67640-0C040-B0iUCK35,45..LIMD200009-200408

CHARCOAL,TRIM1#

main67640-0C040-E0iUCK35,45..LIMD200009-200408

OAK,TRIM4#

main67640-0C041-B1iUCK35,45..LIMD200408

CHARCOAL,TRIM1#

main67640-0C041-E1iUCK35,45..LIMD200408

FAWN,TRIM4#

main67640-0C091-B1iUCK35,45..SR5200408-200603

CHARCOAL,TRIM1#

main67640-0C091-E1iUCK35,45..SR5200408-200603

FAWN,TRIM4#

main67640-0C101-B1iUCK35,45..SR5200408-200603

W(JBL SPEAKER),CHARCOAL,TRIM1#

main67640-0C101-E1iUCK35,45..SR5200408-200603

W(JBL SPEAKER),FAWN,TRIM4#

main67640-0C220-B0iUCK35,45..SR5200603

CHARCOAL,TRIM1#

main67640-0C220-E0iUCK35,45..SR5200603

FAWN,TRIM4#

main67640-0C230-B0iUCK35,45..SR5200603

W(JBL SPEAKER),CHARCOAL,TRIM1#

main67640-0C230-E0iUCK35,45..SR5200603

W(JBL SPEAKER),FAWN,TRIM4#

67772FCAP, REAR DOOR TRIM RETAINER

main67772-0C120-B0iUCK35,45200408

MD.CHARCOAL,TRIM1#,RH

main67772-0C120-E0iUCK35,45200009-200408

MD.OAK,TRIM4#,RH

main67772-0C120-E1iUCK35,45200408

FAWN,TRIM42,43,RH

main67772-0C130-B0iUCK35,45200009-200408

MD.CHARCOAL,TRIM1#,LH

main67772-0C130-E0iUCK35,45200009-200408

MD.OAK,TRIM4#,LH

main67772-0C130-E1iUCK35,45200408

FAWN,TRIM42,43,LH

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-0C010iUCK35,45200009-200408

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-0C010iUCK35,45200009-200408

7451ARMREST & VISOR

→ Go to FIG 74-51

9008018048

main90080-18048

9015960591

main90159-60591

9016440100

main90164-40100

9016440105

main90164-40105

9016840100

main90168-40100

9046709122

main90467-09122

14 parts on this diagram · 2 diagrams in section
