ROOF HEADLINING & SILENCER PAD

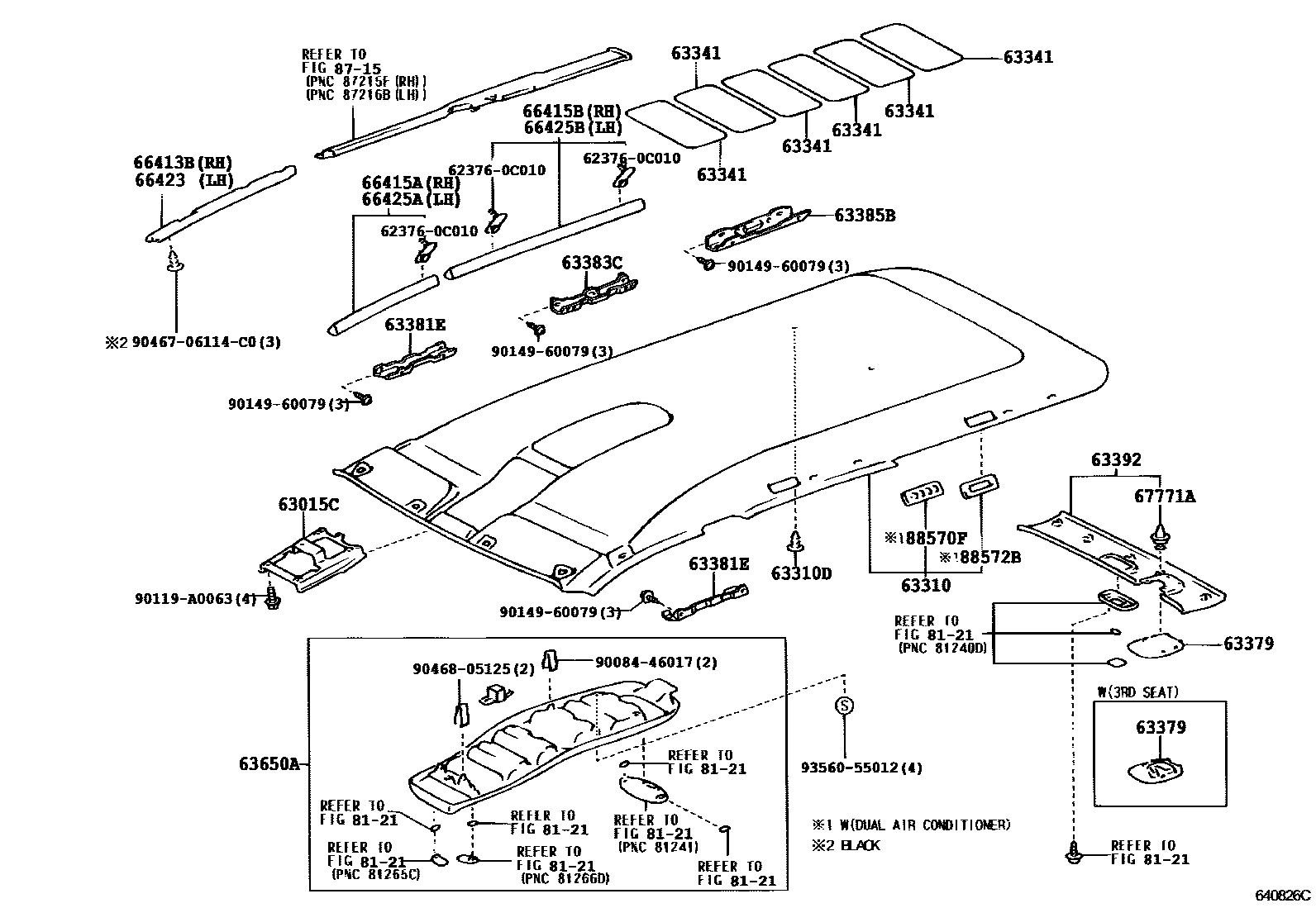

Parts diagram
63015CBRACKET SUB-ASSY, ROOF CONSOLE
main63183-0C010i200009-200408
63310HEADLINING ASSY, ROOF
main63310-0C050-B1i200009-200108
MEDIUM CHARCOAL-013T,TRIM1#
sub63310-0C051
main63310-0C050-E1i200009-200108
MEDIUM OAK-013T,TRIM4#
sub63310-0C051
main63310-0C051-B1i200108-200209
MEDIUM CHARCOAL-013T,TRIM1#
sub63310-0C130
main63310-0C051-E1i200108-200209
MEDIUM OAK-013T,TRIM4#
sub63310-0C130
main63310-0C060-B1i200009-200108
W(DUAL AIR CONDITIONER),MEDIUM CHARCOAL-013T,TRIM1#
sub63310-0C061
main63310-0C060-E1i200009-200108
W(DUAL AIR CONDITIONER),MEDIUM OAK-013T,TRIM4#
sub63310-0C061
main63310-0C061-B1i200108-200209
W(DUAL AIR CONDITIONER),MEDIUM CHARCOAL-013T,TRIM1#
sub63310-0C140
main63310-0C061-E1i200108-200209
W(DUAL AIR CONDITIONER),MEDIUM OAK-013T,TRIM4#
sub63310-0C140
main63310-0C070-B1i200009-200108
W(MOON ROOF),MEDIUM CHARCOAL-013T,TRIM1#
sub63310-0C071
main63310-0C070-E1i200009-200108
W(MOON ROOF),MEDIUM OAK-013T,TRIM4#
sub63310-0C071
main63310-0C071-B1i200108-200209
W(MOON ROOF),MEDIUM CHARCOAL-013T,TRIM1#
sub63310-0C150
main63310-0C071-E1i200108-200209
W(MOON ROOF),MEDIUM OAK-013T,TRIM4#
sub63310-0C150
main63310-0C080-B1i200009-200108
W(DUAL AIR CONDITIONER & MOON ROOF),MEDIUM CHARCOAL-013T,TRIM1#
sub63310-0C081
main63310-0C080-E1i200009-200108
W(DUAL AIR CONDITIONER & MOON ROOF),MEDIUM OAK-013T,TRIM4#
sub63310-0C081
main63310-0C081-B1i200108-200209
W(DUAL AIR CONDITIONER & MOON ROOF),MEDIUM CHARCOAL-013T,TRIM1#
sub63310-0C160
main63310-0C081-E1i200108-200209
W(DUAL AIR CONDITIONER & MOON ROOF),MEDIUM OAK-013T,TRIM4#
sub63310-0C160
main63310-0C130-B0i200209-200408
MEDIUM CHARCOAL-013T,TRIM1#
sub63310-0C230
main63310-0C130-E0i200209-200408
MEDIUM OAK-013T,TRIM4#
sub63310-0C230
main63310-0C140-B0i200209-200408
W(DUAL AIR CONDITIONER),MEDIUM CHARCOAL-013T,TRIM1#
sub63310-0C240
main63310-0C140-E0i200209-200408
W(DUAL AIR CONDITIONER),MEDIUM OAK-013T,TRIM4#
sub63310-0C240
main63310-0C150-B0i200209-200408
W(MOON ROOF),MEDIUM CHARCOAL-013T,TRIM1#
sub63310-0C260
main63310-0C150-E0i200209-200408
W(MOON ROOF),MEDIUM OAK-013T,TRIM4#
sub63310-0C260
main63310-0C160-B0i200209-200408
W(DUAL AIR CONDITIONER & MOON ROOF),MEDIUM CHARCOAL-013T,TRIM1#
sub63310-0C270
main63310-0C160-E0i200209-200408
W(DUAL AIR CONDITIONER & MOON ROOF),MEDIUM OAK-013T,TRIM4#
sub63310-0C270
main63310-0C180-B0i200209-200408
W(REAR SEAT AUDIO) OR W(REAR SEAT ENTERTAINMENT);W(DUAL AIR CONDITIONER & MOON ROOF),MEDIUM CHARCOAL-013T,TRIM1#
main63310-0C180-E0i200209-200408
W(REAR SEAT AUDIO) OR W(REAR SEAT ENTERTAINMENT);W(DUAL AIR CONDITIONER & MOON ROOF),MEDIUM OAK-013T,TRIM4#
main63310-0C230-B0i200408
MEDIUM CHARCOAL-013T,TRIM1#
main63310-0C230-E0i200408
FAWN,TRIM42,43
main63310-0C240-B0i200408
W(DUAL AIR CONDITIONER),MEDIUM CHARCOAL-013T,TRIM1#
main63310-0C240-E0i200408
W(DUAL AER CONDITIONER),FAWN,TRIM42,43
main63310-0C250-B0i200408
W(*RSA OR *RSE) OR W(DUAL AIR CONDITIONER) & W(*RSA OR *RSE),MEDIUM CHARCOAL-013T,TRIM1#
main63310-0C250-E0i200408
W(*RSA OR *RSE) OR W(DUAL AIR CONDITIONER) & W(*RSA OR *RSE),FAWN,TRIM42,43
main63310-0C260-B0i200408
W(MOON ROOF),MEDIUM CHARCOAL-013T,TRIM1#
main63310-0C260-E0i200408
W(MOON ROOF),FAWN,TRIM42,43
main63310-0C270-B0i200408
W(DUAL AIR CONDITIONER & MOON ROOF),MEDIUM CHARCOAL-013T,TRIM1#
main63310-0C270-E0i200408
W(MOON ROOF & DUAL AIR CONDITIONER),FAWN,TRIM42,43
main63310-0C280-B0i200408
W(MOON ROOF) & W(*RSA OR *RSE);W(MOON ROOF & DUAL AIR CONDITIONER) & W(*RSA OR *RSE),MEDIUM CHARCOAL-013T,TRIM1#
main63310-0C280-E0i200408
W(MOON ROOF) & W(*RSA OR *RSE);W(MOON ROOF & DUAL AIR CONDITIONER) & W(*RSA OR *RSE),FAWN,TRIM42,43
63310DCLIP, ROOF HEADLINING
main90467-07176-B1i200009-200408
MD.CHARCOAL,TRIM1#
main90467-07176-E0i200009-200408
MD.OAK,TRIM4#
main90467-07176-E1i200408
FAWN,TRIM42,43
63341PAD, ROOF SILENCER, NO.1
main63341-0C050i200009-200408
63379COVER, ROOF HEADLINING REAR TRIM, LH
main63379-0C010-B0i200009-200408
MD.CHARCOAL,TRIM1#
main63379-0C010-E0i200009-200408
MD.OAK,TRIM4#
main63379-0C020-B0i200408
MD.CHARCOAL,TRIM1#
main63379-0C020-B0i200009-200408
W(THIRD SEAT),MD.CHARCOAL,TRIM1#
main63379-0C020-E0i200009-200408
W(THIRD SEAT),MD.OAK,TRIM4#
main63379-0C020-E1i200408
FAWN,TRIM42,43
63381ERETAINER, ROOF HEADLINING TRIM, FRONT
main63381-0C010i200009-200408
LH
main63381-0C020i200408
RH
main63382-0C010i200009-200408
RH
main63382-0C020i200408
LH
63383CRETAINER, ROOF HEADLINING TRIM, REAR
main63383-0C010i200009-200408
main63383-0C020i200408
63385BRETAINER, ROOF HEADLINING TRIM SIDE, NO.1
main63385-0C010i200009-200408
main63385-0C020i200408
63392TRIM, ROOF HEADLINING, REAR
main63392-0C010-B0i200009-200408
MD.CHARCOAL,TRIM1#
main63392-0C010-E0i200009-200408
MD.OAK,TRIM4#
main63392-0C010-E1i200408
FAWN,TRIM42,43
63650ABOX ASSY, ROOF CONSOLE
main63650-0C020-B0i200009-200408
MD.CHARCOAL,TRIM1#
main63650-0C020-E0i200009-200408
MD.OAK,TRIM4#
main63650-0C021-B0i200408
MD.CHARCOAL,TRIM1#
main63650-0C021-E1i200408
FAWN,TRIM4#
main63650-0C030-B0i200009-200108
W(ACCESSORY METER),MD.CHARCOAL,TRIM1#
main63650-0C030-B0i200009-200108
MD.CHARCOAL,TRIM1#
main63650-0C030-E0i200009-200108
W(ACCESSORY METER),MD.OAK,TRIM4#
main63650-0C030-E0i200009-200108
MD.OAK,TRIM4#
main63650-0C031-B0i200108-200408
MD.CHARCOAL,TRIM1#
main63650-0C031-B0i200108-200408
W(ACCESSORY METER),MD.CHARCOAL,TRIM1#
main63650-0C031-E0i200108-200408
W(ACCESSORY METER),MD.OAK,TRIM4#
main63650-0C031-E0i200108-200408
MD.OAK,TRIM4#
main63650-0C040-B0i200009-200408
W(MOON ROOF) OR W(MOON ROOF & REAR AUDIO),MD.CHARCOAL,TRIM1#
main63650-0C040-E0i200009-200408
W(MOON ROOF) OR W(MOON ROOF & REAR AUDIO),MD.OAK,TRIM4#
main63650-0C041-B0i200408
W(MOON ROOF) OR W(MOON ROOF & REAR AUDIO),MD.CHARCOAL,TRIM1#
main63650-0C041-E1i200408
W(MOON ROOF) OR W(MOON ROOF & REAR AUDIO),FAWN,TRIM4#
main63650-0C050-B0i200009-200108
W(MOON ROOF),MD.CHARCOAL,TRIM1#
main63650-0C050-B0i200009-200108
W(MOON ROOF & ACCESSORY METER),MD.CHARCOAL,TRIM1#
main63650-0C050-E0i200009-200108
W(MOON ROOF),MD.OAK,TRIM4#
main63650-0C050-E0i200009-200108
W(MOON ROOF & ACCESSORY METER),MD.OAK,TRIM4#
main63650-0C051-B0i200108-200408
W(MOON ROOF & ACCESSORY METER) OR W(MOON ROOF & ACCESSORY METER & REAR AUDIO),MD.CHARCOAL,TRIM1#
main63650-0C051-B0i200108-200408
W(MOON ROOF) OR W(MOON ROOF & REAR AUDIO),MD.CHARCOAL,TRIM1#
main63650-0C051-E0i200108-200408
W(MOON ROOF & ACCESSORY METER) OR W(MOON ROOF & ACCESSORY METER & REAR AUDIO),MD.OAK,TRIM4#
main63650-0C051-E0i200108-200408
W(MOON ROOF) OR W(MOON ROOF & REAR AUDIO),MD.OAK,TRIM4#
main63650-0C090-B0i200408
W(REAR AUDIO),MD.CHARCOAL,TRIM1#
main63650-0C090-E0i200408
W(REAR AUDIO),FAWN,TRIM42,43
main63650-0C100-B0i200408
W(ACCESSORY METER & REAR AUDIO),MD.CHARCOAL,TRIM1#
main63650-0C100-B0i200408
W(REAR AUDIO),MD.CHARCOAL,TRIM1#
main63650-0C100-E0i200408
W(REAR AUDIO),FAWN,TRIM42,43
main63650-0C100-E0i200408
W(ACCESSORY METER & REAR AUDIO),FAWN,TRIM42,43
main63650-0C120-B0i200408
MD.CHARCOAL,TRIM1#
main63650-0C120-B0i200408
W(ACCESSORY METER),MD.CHARCOAL,TRIM1#
main63650-0C120-E0i200408
W(ACCESSORY METER),FAWN,TRIM42,43
main63650-0C120-E0i200408
FAWN,TRIM42,43
main63650-0C130-B0i200408
W(MOON ROOF) OR W(MOON ROOF & REAR AUDIO),MD.CHARCOAL,TRIM1#
main63650-0C130-B0i200408
W(MOON ROOF & ACCESSORY METER) OR W(MOON ROOF & ACCESSORY METER & REAR AUDIO),MD.CHARCOAL,TRIM1#
main63650-0C130-E0i200408
W(MOON ROOF) OR W(MOON ROOF & REAR AUDIO),FAWN,TRIM42,43
main63650-0C130-E0i200408
W(MOON ROOF & ACCESSORY METER) OR W(MOON ROOF & ACCESSORY METER & REAR AUDIO),FAWN,TRIM42,43
66413BSPACER, SIDE RAIL, FRONT RH
main66413-0C020i200009-200408
66415ASPACER, SIDE RAIL, REAR NO.2 RH
main66415-0C040i200009-200608
66415BSPACER, SIDE RAIL, REAR NO.2 RH
main66415-0C050i200009-200608
66425ASPACER, SIDE RAIL, REAR NO.2 LH
main66425-0C040i200009-200608
66425BSPACER, SIDE RAIL, REAR NO.2 LH
main66425-0C050i200009-200608
67771ARETAINER, ROOF HEADLINING
main67771-16080i200009-200408
8121
8715
88570FGRILLE ASSY, AIR OUTLET
main88570-0C010-B0i200009-200408
MD.CHARCOAL,TRIM1#
main88570-0C010-E0i200009-200408
MD.OAK,TRIM4#
main88570-0C010-E1i200408
FAWN,TRIM42,43
88572BHOLDER, GRILLE
main88572-0C010i200009-200408
623760C010RETAINER, DOOR OPENING WEATHERSTRIP
main62376-0C010
9008446017
main90084-46017
90119A0063
main90119-A0063
9014960079
main90149-60079
9046706114C0
main90467-06114C0
9046805125
main90468-05125
9356055012
main93560-55012

27 parts on this diagram · 2 diagrams in section
