REAR SPRING & SHOCK ABSORBER

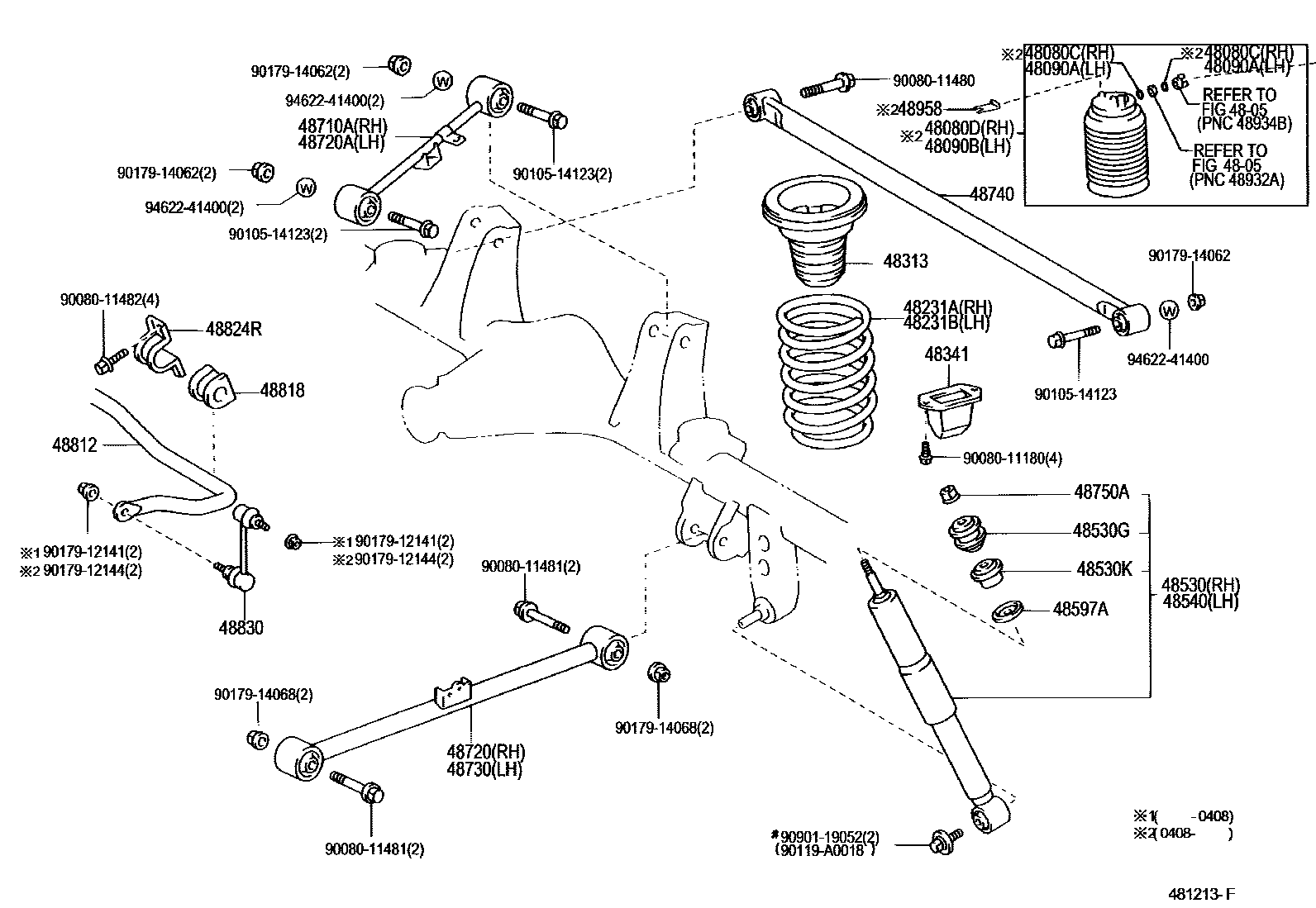

Parts diagram
4805HEIGHT CONTROL (AUTO-LEVELER)
→ Go to FIG 48-05
48080CRING, O(FOR REAR PNEUMATIC CYLINDER RH)
main90301-04011×2i200408
48080DCYLINDER ASSY, PNEUMATIC, REAR RH
main48080-34010i200408
48090ARING, O(FOR REAR PNEUMATIC CYLINDER LH)
main90301-04011×2i200408
48090BCYLINDER ASSY, PNEUMATIC, REAR LH
main48080-34010i200408
48231ASPRING, COIL, REAR RH
main48231-AF010i200009-200408
main48231-AF020i200009-200408
W(THIRD SEAT 5:5 SPLIT) OR W(TOWING HICH)
main48231-AF030i200009-200408
W(THIRD SEAT 5:5 SPLIT); W(THIRD SEAT 5:5 SPLIT) & W(TOWING HICH)
main48231-AF040i200009-200408
main48231-AF050i200009-200408
W(THIRD SEAT 5:5 SPLIT) OR W(TOWING HICH)
main48231-AF060i200009-200408
W(THIRD SEAT 5:5 SPLIT); W(THIRD SEAT 5:5 SPLIT) & W(TOWING HICH)
main48231-AF070i200209-200408
W(THIRD SEAT 5:5 SPLIT) & W(AUTO LEVELER)
main48231-AF080i200209-200408
W(THIRD SEAT 5:5 SPLIT) & W(AUTO LEVELER); W(THIRD SEAT 5:5 SPLIT) & W(TOWING HICH) & W(AUTO LEVELER)
main48231-AF090i200209-200408
W(THIRD SEAT 5:5 SPLIT) & W(AUTO LEVELER)
main48231-AF100i200209-200408
W(THIRD SEAT 5:5 SPLIT) & W(AUTO LEVELER); W(THIRD SEAT 5:5 SPLIT) & W(TOWING HICH) & W(AUTO LEVELER)
main48231-AF110i200408
main48231-AF120i200408
W(TOWING HITCH)
main48231-AF130i200408
main48231-AF140i200408
W(TOWING HITCH)
main48231-AF150i200408
W(AUTO LEVELER)
main48231-AF160i200408
W(TOWING HICH & AUTO LEVELER)
main48231-AF170i200408
W(AUTO LEVELER)
main48231-AF180i200408
W(TOWING HICH & AUTO LEVELER)
48231BSPRING, COIL, REAR LH
main48231-AF010i200009-200408
main48231-AF020i200009-200408
W(THIRD SEAT 5:5 SPLIT) OR W(TOWING HICH)
main48231-AF030i200009-200408
W(THIRD SEAT 5:5 SPLIT); W(THIRD SEAT 5:5 SPLIT) & W(TOWING HICH)
main48231-AF040i200009-200408
main48231-AF050i200009-200408
W(THIRD SEAT 5:5 SPLIT) OR W(TOWING HICH)
main48231-AF060i200009-200408
W(THIRD SEAT 5:5 SPLIT); W(THIRD SEAT 5:5 SPLIT) & W(TOWING HICH)
main48231-AF070i200209-200408
W(THIRD SEAT 5:5 SPLIT) & W(AUTO LEVELER)
main48231-AF080i200209-200408
W(THIRD SEAT 5:5 SPLIT) & W(AUTO LEVELER); W(THIRD SEAT 5:5 SPLIT) & W(TOWING HICH) & W(AUTO LEVELER)
main48231-AF090i200209-200408
W(THIRD SEAT 5:5 SPLIT) & W(AUTO LEVELER)
main48231-AF100i200209-200408
W(THIRD SEAT 5:5 SPLIT) & W(AUTO LEVELER); W(THIRD SEAT 5:5 SPLIT) & W(TOWING HICH) & W(AUTO LEVELER)
main48231-AF110i200408
main48231-AF120i200408
W(TOWING HITCH)
main48231-AF130i200408
main48231-AF140i200408
W(TOWING HITCH)
main48231-AF150i200408
W(AUTO LEVELER)
main48231-AF160i200408
W(TOWING HICH & AUTO LEVELER)
main48231-AF170i200408
W(AUTO LEVELER)
main48231-AF180i200408
W(TOWING HICH & AUTO LEVELER)
48313SPRING, HOLLOW(FOR REAR SUSPENSION)
main48313-0C010×2i200304-200408
main48313-0C020×2i200408
main48313-34010×2i200009-200304
48341BUMPER, REAR SPRING
main48341-0C010×2i200408
main48341-0C020×2i200408
W(AIR SUSPENSION)
main48341-34010×2i200009-200304
48530ABSORBER ASSY, SHOCK, REAR RH
main48530-80104i200209-200408
MARK 48530-34010
main48530-80105i200209-200408
MARK 48530-34020
main48530-80189i200408
MARK 48530-34030
main48530-80190i200408
MARK 48530-34040
main48530-A9100i200009-200203
MARK 48530-AF010
main48530-A9110i200009-200203
MARK 48530-AF020
main48530-A9170i200203-200408
MARK 48530-AF011
main48530-A9180i200203-200408
MARK 48530-AF021
main48530-A9460i200408
MARK 48530-AF030
main48530-A9470i200408
MARK 48530-AF040,W(AIR SUSPENSION)
main48530-A9480i200408
MARK 48530-AF050
main48530-A9490i200408
MARK 48530-AF060
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
main48505-34010×2i200009-200209
main48505-34011×2i200209-200408
48530KCUSHION, REAR SHOCK ABSORBER, NO.2
main48507-34010×2i200009-200209
main48507-34011×2i200209-200408
48540ABSORBER ASSY, SHOCK, REAR LH
main48530-80104i200209-200408
MARK 48530-34010
main48530-80105i200209-200408
MARK 48530-34020
main48530-80189i200408
MARK 48530-34030
main48530-80190i200408
MARK 48530-34040
main48530-A9100i200009-200203
MARK 48530-AF010
main48530-A9110i200009-200203
MARK 48530-AF020
main48530-A9170i200203-200408
MARK 48530-AF011
main48530-A9180i200203-200408
MARK 48530-AF021
main48530-A9460i200408
MARK 48530-AF030
main48530-A9470i200408
MARK 48530-AF040,W(AIR SUSPENSION)
main48530-A9480i200408
MARK 48530-AF050
main48530-A9490i200408
MARK 48530-AF060
48597ARETAINER, REAR SHOCK ABSORBER CUSHION
main48597-34010×2i200009-200408
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
main48710-34010i200009-200408
48720ARM ASSY, LOWER CONTROL, RH
main48720-34010i200009-200408
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
main48710-34020i200408
48730ARM ASSY, LOWER CONTROL, LH
main48720-34010i200408
48740ROD ASSY, REAR LATERAL CONTROL
main48740-34010i200009-200408
48750ANUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
main94184-01241×2i200009-200408
48812BAR, STABILIZER, REAR
main48812-AF010i200009-200408
W(SUN ROOF)
main48812-AF020i200408
48818BUSH, STABILIZER, REAR
main48818-AF010×2i200009-200408
W(SUN ROOF)
main48818-AF020×2i200009-200408
48824RBRACKET, STABILIZER(FOR REAR)
main48824-34040×2i200009-200408
48830LINK ASSY, REAR STABILIZER
main48830-0C010×2i200009-200408
48958CLIP, PNEUMATIC CYLINDER
main48958-35020×2i200408
9008011180
main90080-11180
9008011480
main90080-11480
9008011481
main90080-11481
9008011482
main90080-11482
9010514123
main90105-14123
90119A0018
main90119-A0018
9017912141
main90179-12141
9017912144
main90179-12144
9017914062
main90179-14062
9017914068
main90179-14068
9090119052
main90901-19052
9462241400
main94622-41400

37 parts on this diagram · 1 diagram in section
