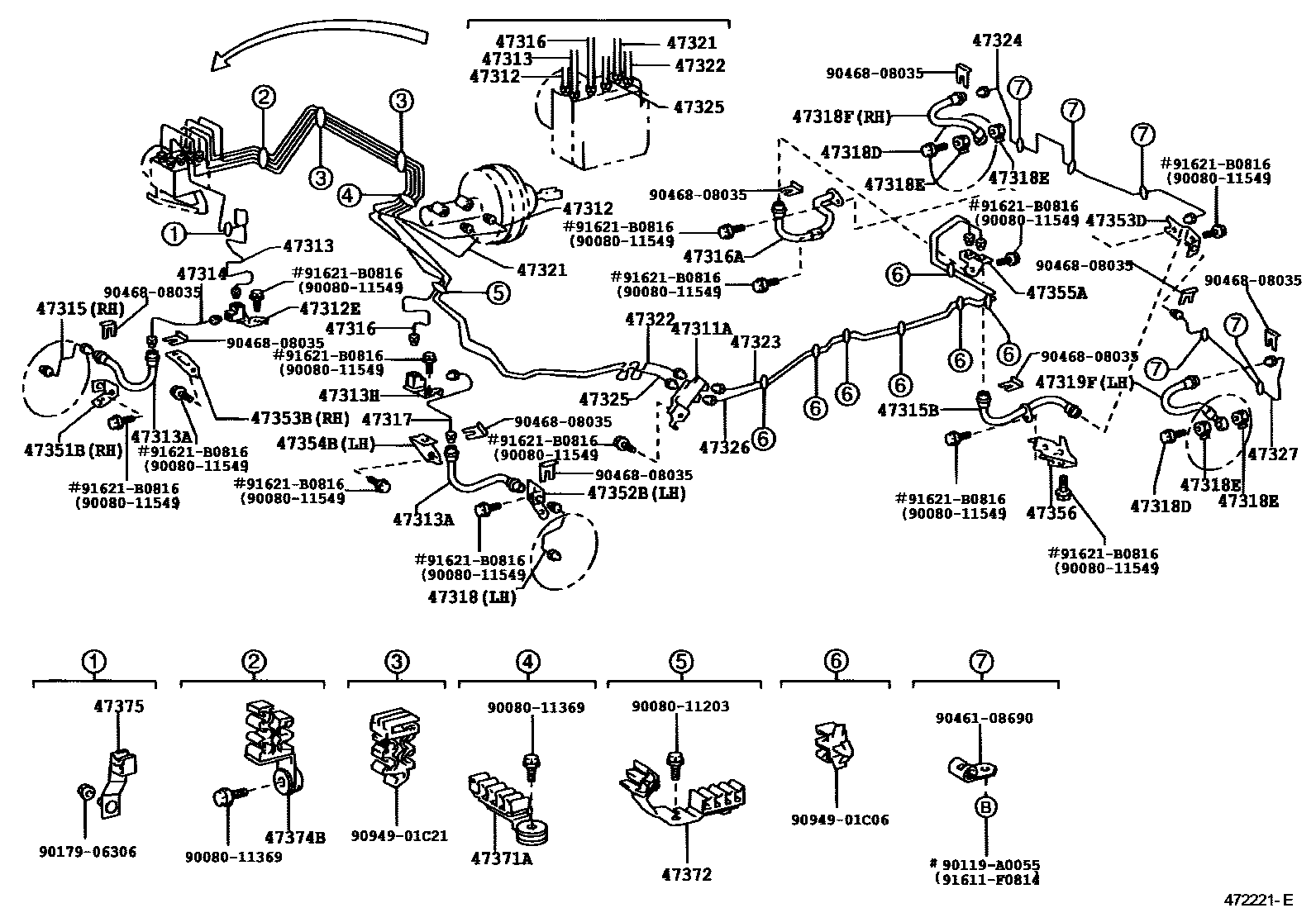

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1

47311AWAY(FOR FRONT BRAKE TUBE)

main90904-12068iUCK35,45200009-200408

47312TUBE, FRONT BRAKE, NO.2

main47312-0C040iUCK35,45200009-200408

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90904-12066iUCK35,45200009-200408

47313TUBE, FRONT BRAKE, NO.3

main47313-0C012iUCK35,45200009-200408

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90080-94073×2iUCK35,45200009-200408

47313HWAY, NO.3(FOR FRONT BRAKE TUBE)

main90904-12067iUCK35,45200009-200408

47314TUBE, FRONT BRAKE, NO.4

main47314-0C011iUCK35,45200009-200408

47315TUBE, FRONT BRAKE, NO.5

main47315-0C010iUCK35,45..4HC200009-200209

main47315-0C020iUCK35,45200209-200408

47315BHOSE, FLEXIBLE(FOR BRAKE TUBE)

main90080-94102iUCK35,45200009-200408

47316TUBE, FRONT BRAKE, NO.6

main47316-0C040iUCK35,45200009-200408

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90080-94101iUCK35,45200009-200408

47317TUBE, FRONT BRAKE, NO.7

main47317-0C011iUCK35,45200009-200408

main47317-0C020iUCK35,45200408

47318TUBE, FRONT BRAKE, NO.8

main47318-0C010iUCK35,45..4HC200009-200209

main47318-0C020iUCK35,45200209-200408

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iUCK35,45200009-200408

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iUCK35,45200009-200408

main47389-50021×2iUCK35,45200706

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02C43iUCK35,45200009-200408

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02C44iUCK35,45200009-200408

47321TUBE, REAR BRAKE, NO.1

main47321-0C040iUCK35,45200009-200408

47322TUBE, REAR BRAKE, NO.2

main47322-0C030iUCK35,45200009-200408

main47322-0C070iUCK35,45200408

47323TUBE, REAR BRAKE, NO.3

main47323-0C020iUCK35,45200009-200408

main47323-0C060iUCK35,45200408

47324TUBE, REAR BRAKE, NO.4

main47324-0C030iUCK35,45200009-200408

main47324-0C070iUCK35,45200408

47325TUBE, REAR BRAKE, NO.5

main47325-0C020iUCK35,45200009-200408

main47325-0C060iUCK35,45200408

47326TUBE, REAR BRAKE, NO.6

main47326-0C020iUCK35,45200009-200408

main47326-0C030iUCK35,45200408

47327TUBE, REAR BRAKE, NO.7

main47327-0C010iUCK35,45200009-200408

main47327-0C040iUCK35,45200408

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-35270iUCK35,45200009-200408

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-35310iUCK35,45200009-200408

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47353-35110iUCK35,45200009-200408

47353DBRACKET, FLEXIBLE HOSE, NO.7

main47353-34030iUCK35,45200009-200408

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47354-35100iUCK35,45200009-200408

47355ABRACKET, FLEXIBLE HOSE, NO.5

main47351-34040iUCK35,45200009-200408

47356BRACKET, FLEXIBLE HOSE, NO.6

main47352-34050iUCK35,45200009-200408

47371ACLAMP, BRAKE TUBE, NO.1

main47371-34040iUCK35,45200009-200408

47372CLAMP, BRAKE TUBE, NO.2

main47372-34050iUCK35,45200009-200408

47374BCLAMP, BRAKE TUBE, NO.4

main47374-34020iUCK35,45200009-200408

47375CLAMP, BRAKE TUBE, NO.5

main47375-34010iUCK35,45200009-200408

9008011203

main90080-11203

9008011369

main90080-11369

9008011549

main90080-11549

90119A0055

main90119-A0055

9017906306

main90179-06306

9046108690

main90461-08690

9046808035

main90468-08035

9094901C06

main90949-01C06

9094901C21

main90949-01C21

91611F0814

main91611-F0814

91621B0816

main91621-B0816

46 parts on this diagram · 3 diagrams in section
