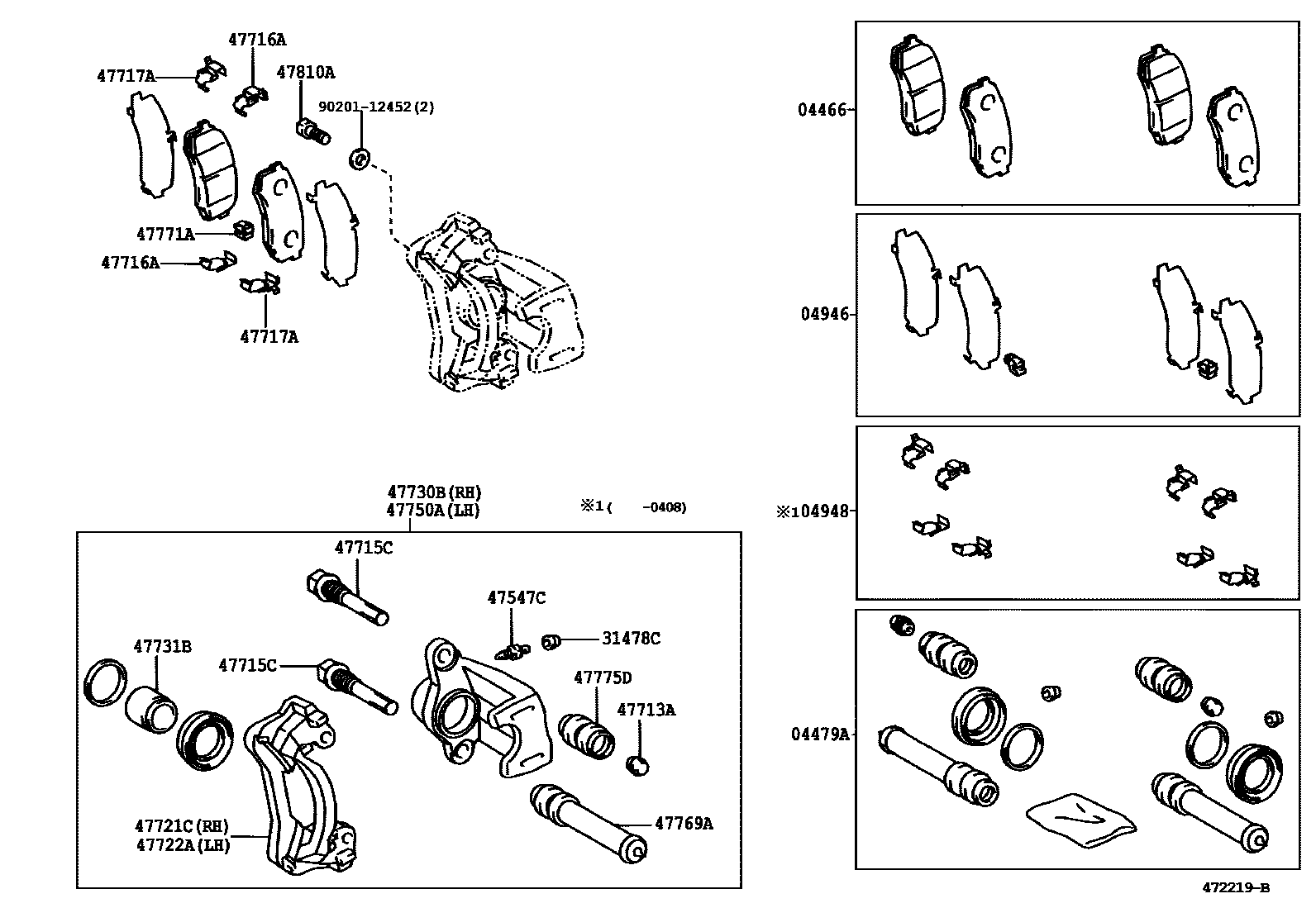

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-60080iUCK35,45200009-200408

MARK NBK PN524-EE

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-60030iUCK35,45200009-200408

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-30100iUCK35,45200009-200408

04948FITTING KIT, DISC BRAKE, REAR

main04947-22050iUCK35,45200009-200408

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iUCK35,45200009-200408

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-12030×2iUCK35,45200009-200408

47713APLUG, HOLE(FOR REAR DISC BRAKE CYLINDER)

main90950-01301×2iUCK35,45200009-200408

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-22010×4iUCK35,45200009-200408

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-22010×4iUCK35,45200009-200408

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-22010×4iUCK35,45200009-200408

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-60020iUCK35,45200009-200408

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47722-60020iUCK35,45200009-200408

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-34030iUCK35,45200009-200408

47731BPISTON, REAR DISC BRAKE

main47731-60020×2iUCK35,45200009-200408

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-34030iUCK35,45200009-200408

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-22010×2iUCK35,45200009-200408

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-22030×2iUCK35,45200009-200408

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-22010×2iUCK35,45200009-200408

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90101-12167×4iUCK35,45200009-200408

9020112452

main90201-12452

20 parts on this diagram · 1 diagram in section
