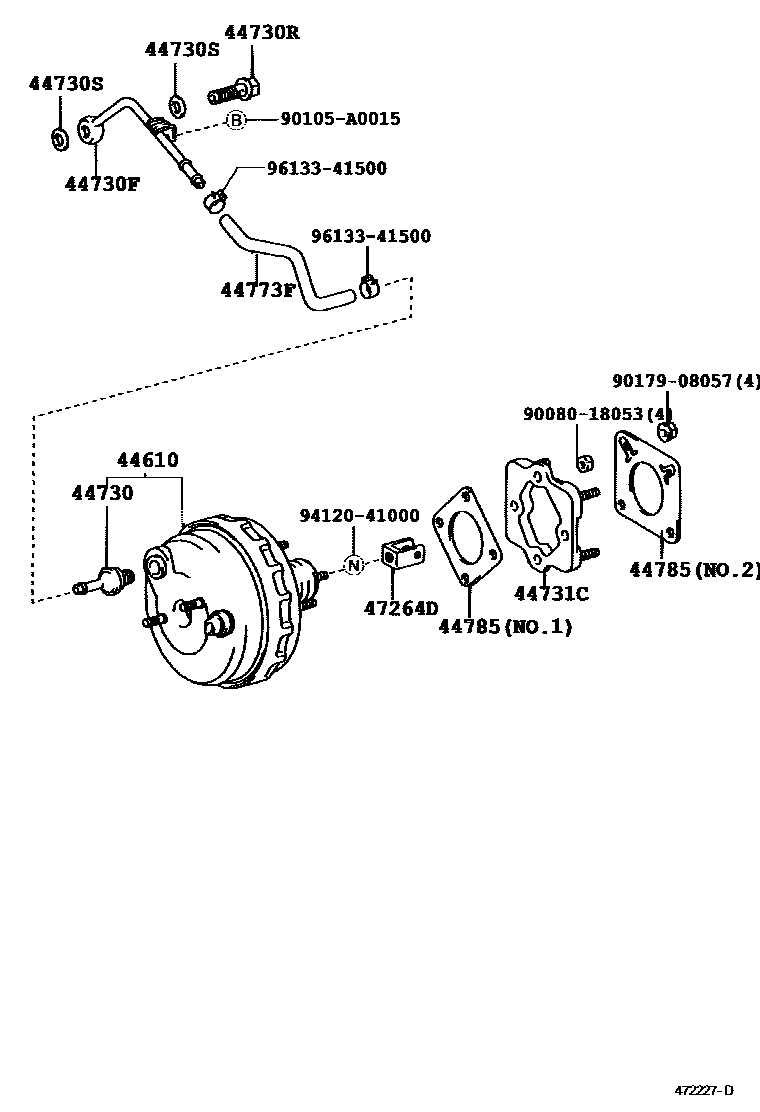

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

44610BOOSTER ASSY, BRAKE

main44610-0C030iUCK35,45..4HC200009-200209

main44610-0C040iUCK35,45200209-200408

main44610-0C041iUCK35,45200508

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-0C010iUCK35,45200009-200408

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90904-05006iUCK35,45200009-200408

44730RBOLT, UNION(FOR VACUUM HOSE UNION)

main90401-12012iUCK35,45200009-200408

44730SGASKET(FOR VACUUM HOSE UNION)

main90430-12005×2iUCK35,45200009-200408

44731CBRACKET, BRAKE BOOSTER

main44731-34010iUCK35,45200009-200408

44773HOSE, VACUUM, NO.2

main44774-0C010iUCK35,45200408

44773FHOSE, UNION TO CHECK VALVE

main44773-0C030iUCK35,45200009-200408

main44773-0C060iUCK35,45200408

44785GASKET, BRAKE BOOSTER

main44785-0C010iUCK35,45200508

NO.1

main44785-35030iUCK35,45200408-200507

NO.2

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-60020iUCK35,45200009-200408

9008018053

main90080-18053

90105A0015

main90105-A0015

9017908057

main90179-08057

9412041000

main94120-41000

9613341500

main96133-41500

15 parts on this diagram · 2 diagrams in section
