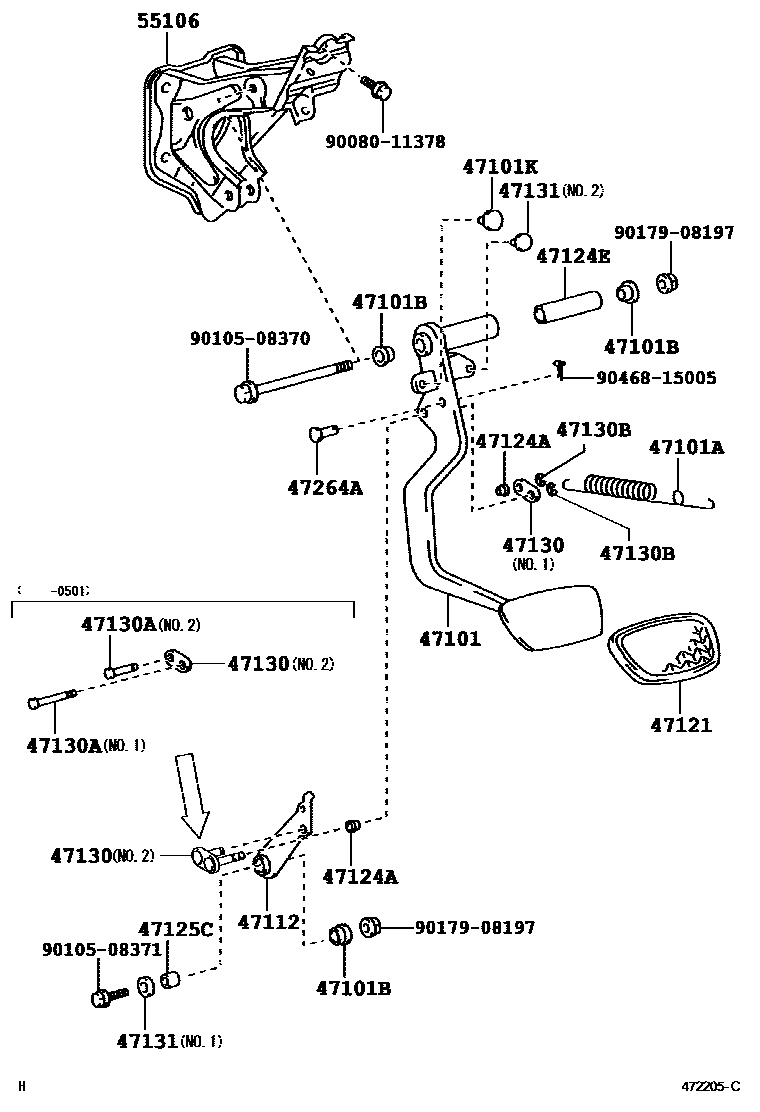

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-34081iUCK35,45200408

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90905-07023iUCK35,45200009-200408

47101BBUSH(FOR BRAKE PEDAL)

main90386-14015×3iUCK35,45200009-200408

47101KCUSHION(FOR PARKING LOCK CABLE)

main90541-06049iUCK35,45200009-200408

47112LEVER, BRAKE PEDAL

main47112-34031iUCK35,45..4HC200009-200012

47121PAD, BRAKE PEDAL

main47121-50010iUCK35,45200009-200408

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main47144-34010×2iUCK35,45200009-200408

47124ECOLLAR, BRAKE PEDAL SHAFT, NO.2

main90387-08156iUCK35,45200009-200408

47125CCOLLAR(FOR BRAKE PEDAL BRACKET)

main90387-08157iUCK35,45200408

47130LINK ASSY, BRAKE PEDAL

main4710A-34010iUCK35,45200501

NO.2

main47130-60010×2iUCK35,45200408-200501

NO.1 & NO.2

main47130-60011iUCK35,45200501

NO.1

47130APIN, BRAKE PEDAL LINK

main90249-06171iUCK35,45200009-200408

NO.1

main90249-06172iUCK35,45200408-200501

NO.2

47130BRING E, BRAKE PEDAL LINK PIN

main96160-00400×2iUCK35,45200408

47131CUSHION(FOR STOP LAMP SWITCH)

main47131-34010iUCK35,45200009-200408

NO.1

main90541-06036iUCK35,45200009-200408

NO.2

47264APIN(FOR PUSH ROD)

main90240-06023iUCK35,45200009-200408

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-34030iUCK35,45200009-200408

9008011378

main90080-11378

9010508370

main90105-08370

9010508371

main90105-08371

9017908197

main90179-08197

9046815005

main90468-15005

20 parts on this diagram · 1 diagram in section
