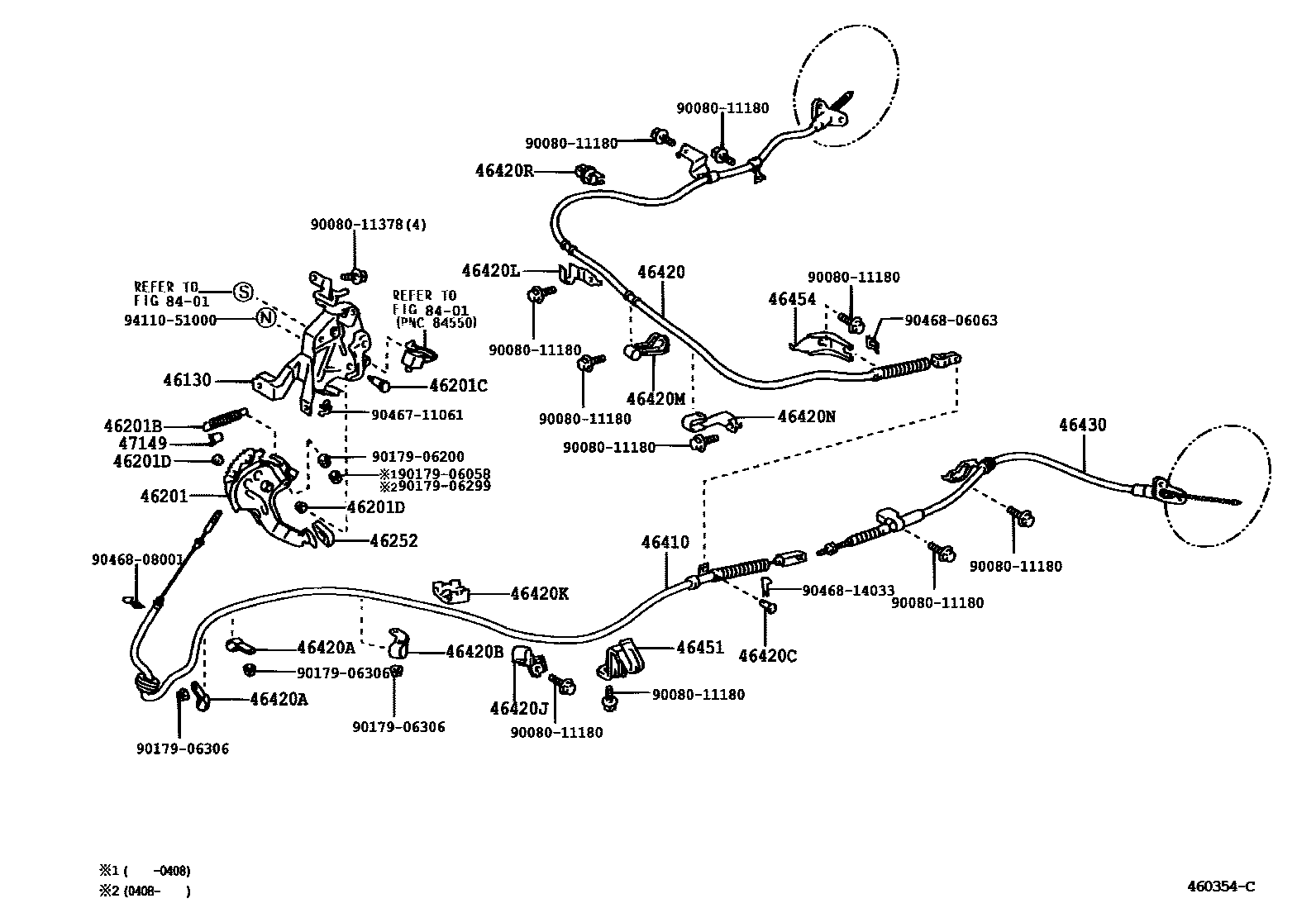

PARKING BRAKE & CABLE

0001 1 0002 1

46130BRACKET ASSY, PARKING BRAKE PEDAL

main46130-34020iUCK35,45200009-200408

46201PEDAL SUB-ASSY, PARKING BRAKE

main46210-34010iUCK35,45200009-200408

46201BSPRING, TENSION

main90506-19005iUCK35,45200009-200408

46201CSHAFT, PEDAL

main90109-10033iUCK35,45200009-200408

46201DBUSH(FOR PARKING BRAKE PEDAL)

main90386-16022iUCK35,45200009-200408

46252PAD, PARKING PEDAL

main46252-33010iUCK35,45200009-200408

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-34100iUCK35,45200009-200408

main46410-34150iUCK35,45200408

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-34060iUCK35,45200009-200408

main46420-34080iUCK35,45200408

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46411-34020iUCK35,45200009-200408

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46411-34030iUCK35,45200009-200408

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-08059iUCK35,45200009-200408

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46411-34040iUCK35,45200009-200408

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main46411-0C010iUCK35,45200009-200408

46420LCLAMP, NO.5(FOR PARKING BRAKE CABLE)

main46421-34030iUCK35,45200009-200408

46420MCLAMP, NO.6(FOR PARKING BRAKE CABLE)

main46421-34040iUCK35,45200009-200408

46420NCLAMP, NO.7(FOR PARKING BRAKE CABLE)

main46421-34050iUCK35,45200009-200408

46420RCLAMP, NO.8(FOR PARKING BRAKE CABLE)

main46421-34060iUCK35,45200009-200408

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-34040iUCK35,45200009-200408

main46430-34060iUCK35,45200408

46451BRACKET, CABLE SUPPORT

main46451-34030iUCK35,45200009-200408

46454BRACKET, CABLE RETAINER, FRONT

main46454-34040iUCK35,45200009-200408

47149DAMPER, RETURN SPRING

main47149-22010iUCK35,45200009-200408

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008011180

main90080-11180

9008011378

main90080-11378

9017906058

main90179-06058

9017906200

main90179-06200

9017906299

main90179-06299

9017906306

main90179-06306

9046711061

main90467-11061

9046806063

main90468-06063

9046808001

main90468-08001

9046814033

main90468-14033

9411051000

main94110-51000

33 parts on this diagram · 2 diagrams in section
