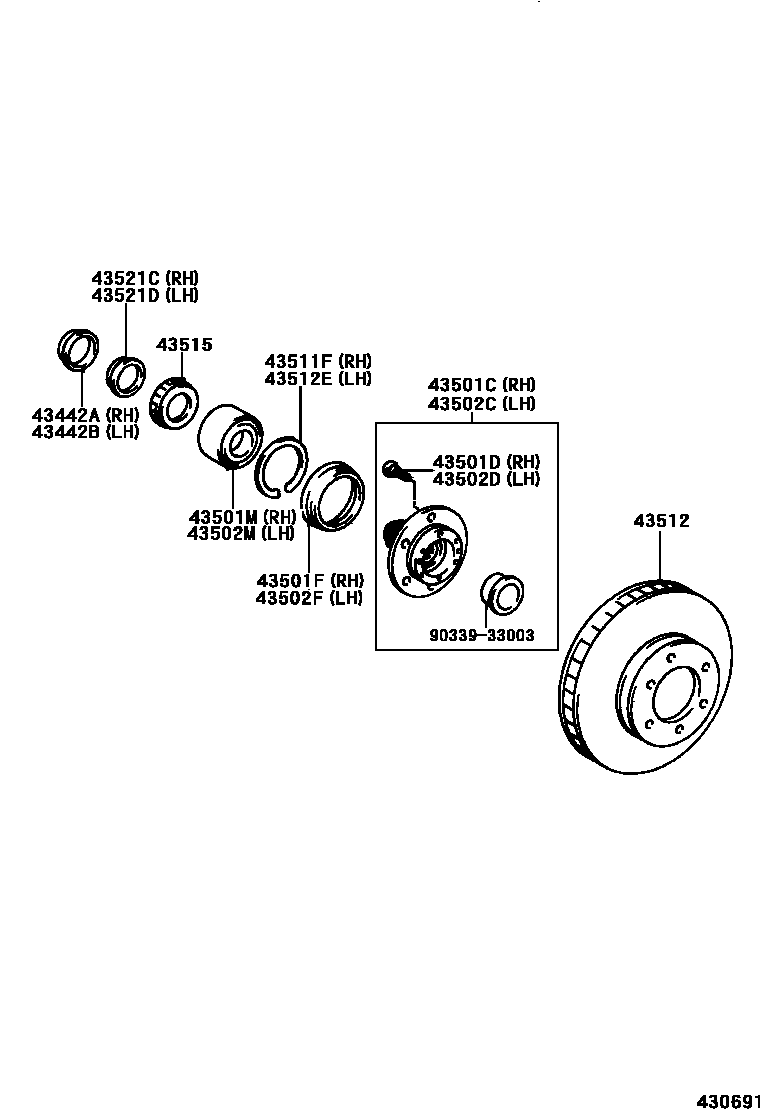

FRONT AXLE HUB

0001 1 0002 1

43442ACAP, KNUCKLE GREASE RETAINER, INNER, RH

main43442-35050iUCK35200009-200408

43442BCAP, KNUCKLE GREASE RETAINER, INNER, LH

main43442-35050iUCK35200009-200408

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-04040iUCK45200408

main43502-0C010iUCK35200408

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×6iUCK35,45200408

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90312-95001iUCK35,45200408

43501MBEARING (FOR FRONT AXLE HUB INNER RH)

main90369-54001iUCK35,45..4HC200009-200309

main90369-54002iUCK35,45200408

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-04040iUCK45200009-200408

main43502-0C010iUCK35200009-200408

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×6iUCK35,45200408

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90312-95001iUCK35,45200009-200408

43502MBEARING (FOR FRONT AXLE HUB INNER LH)

main90369-54001iUCK35,45..4HC200009-200309

main90369-54002iUCK35,45200309-200408

43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-99114iUCK35,45200009-200408

43512DISC, FRONT

main43512-0C011×2iUCK35,45200009-200408

43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-99114iUCK35,45200009-200408

43515ROTOR, SKID CONTROL, FRONT

main43515-35010×2iUCK35,45200009-200408

43521CNUT, FRONT WHEEL ADJUSTING, RH

main43521-35010iUCK35200009-200408

43521DNUT, FRONT WHEEL ADJUSTING, LH

main43521-35010iUCK35200009-200408

9033933003

main90339-33003

17 parts on this diagram · 2 diagrams in section
