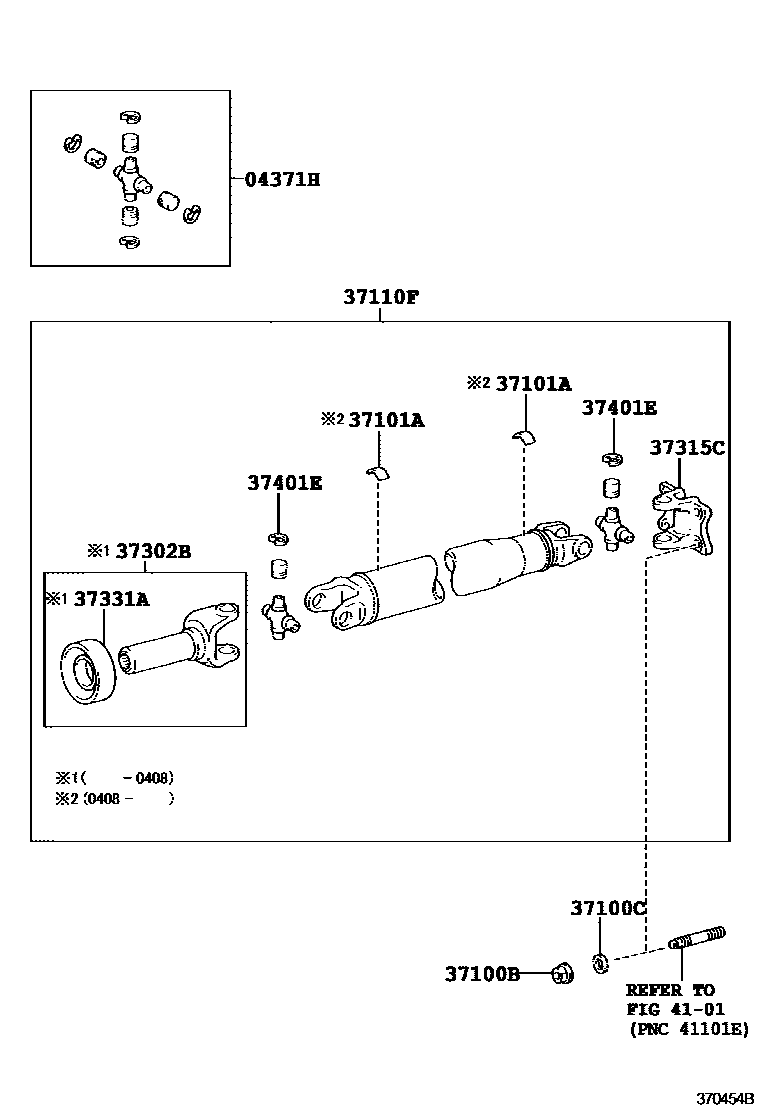

PROPELLER SHAFT & UNIVERSAL JOINT
04371HSPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT
37100BNUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
22.1G
25.5G
2.3G
4.5G
7.9G
11.3G
14.8G
18.1G
10G,L=20.7
20G,L=41.4
2G,T=2.0
4G,T=2.0
6G,L=12.4
8G,L=16.6
12G,L=24.9
14G,L=29.0
16G,L=33.2
18G,L=37.3
22G,L=45.6
24G,L=49.7
26G,L=53.9
28G,L=58.1
4G,T=1.6
8G,T=1.6
12G,T=4.5
16G,T=4.5
20G,T=4.5
24G,T=4.5,L=25.1
28G,T=6,L=22.7
32G,T=6,L=24.3
30G,T=4.5,L=27.4
32G,T=4.5,L=29.2
34G,T=4.5,L=31.0
36G,T=4.5,L=32.9
38G,T=4.5,L=34.7
40G,T=4.5,L=36.5
42G,T=4.5,L=38.4
44G,T=4.5,L=40.2
46G,T=4.5,L=42.0
48G,T=4.5,L=43.8
50G,T=4.5,L=45.7
36G,L=23.1,T=8.0
40G,L=25.6
44G,L=22.6
48G,L=24.6
52G,L=26.7
56G,L=28.7
60G,L=28.7
16G,T=4.5,L=14.6
18G,T=4.5,L=16.4
20G,T=4.5,L=18.3
22G,T=4.5,L=20.1
24G,T=4.5,L=21.9
26G,T=4.5,L=23.7
28G,T=4.5,L=25.6
37110FSHAFT ASSY, PROPELLER, REAR
37302BYOKE SUB-ASSY, RR PROPELLER SHAFT UNIVERSAL J0INT SLEEVE
37315CYOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE
37331ACOVER SUB-ASSY, FRONT PROPELLER SHAFT SLIDING SHAFT DUST
37401ERING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING)
T=1.64,BLUE
T=1.59,YELLOW
T=1.54,SILVER
T=1.49,COPPER
T=1.51,BLACK
T=1.44,RED
T=1.38,GREEN
T=2.29,MARK 1
T=2.31,MARK 2
T=2.33,NO MARK
T=2.35,BROWN
T=2.37,BLUE
T=2.39,MARK 6
T=2.41,MARK 7
T=2.43,MARK 8
T=2.45,MARK 9
T=2.47,MARK 10
T=2.49,MARK A
T=2.51,MARK B
T=2.53,MARK C
T=2.55,MARK D
T=2.57,MARK E
T=2.19,MARK D
T=2.21,MARK E
T=2.23,MARK F
T=2.25,MARK G
T=2.27,MARK H
T=2.00,NO MARK
T=2.03,BROWN
T=2.06,BLUE
T=2.09,NO MARK
T=1.99,MARK 1
T=2.01,MARK 2
T=2.03,MARK 3
T=2.05,MARK 4
T=2.07,MARK 5
T=2.09,MARK 6
T=2.11,MARK 7
T=2.13,MARK 8
T=2.15,MARK 9
T=2.17,MARK 10
