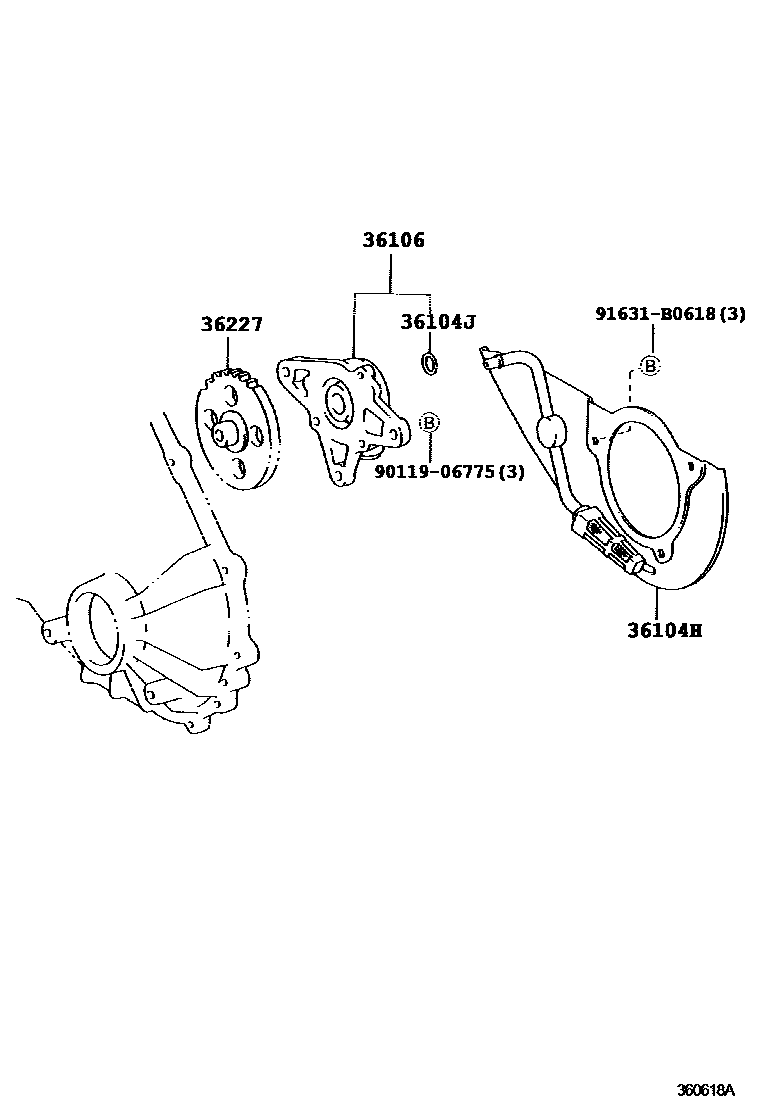

TRANSFER OIL PUMP

0001 1 0002 1

36104HSEPARATOR SUB-ASSY, TRANSFER OIL

main36104-35030iUCK45200009-200408

main36104-35050iUCK45200408

36104JRING, O (FOR TRANSFER OIL PUMP BODY)

main96721-19009iUCK45200009-200408

36106BODY SUB-ASSY, TRANSFER OIL PUMP

main36106-35031iUCK45200009-200408

main36106-35050iUCK45200408

36227GEAR, TRANSFER OIL PUMP

main36227-35020iUCK45200009-200408

main36227-35030iUCK45200408

9011906775

main90119-06775

91631B0618

main91631-B0618

6 parts on this diagram · 2 diagrams in section
